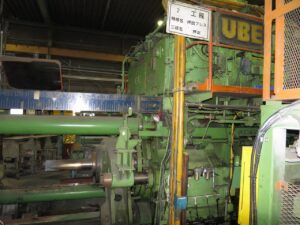

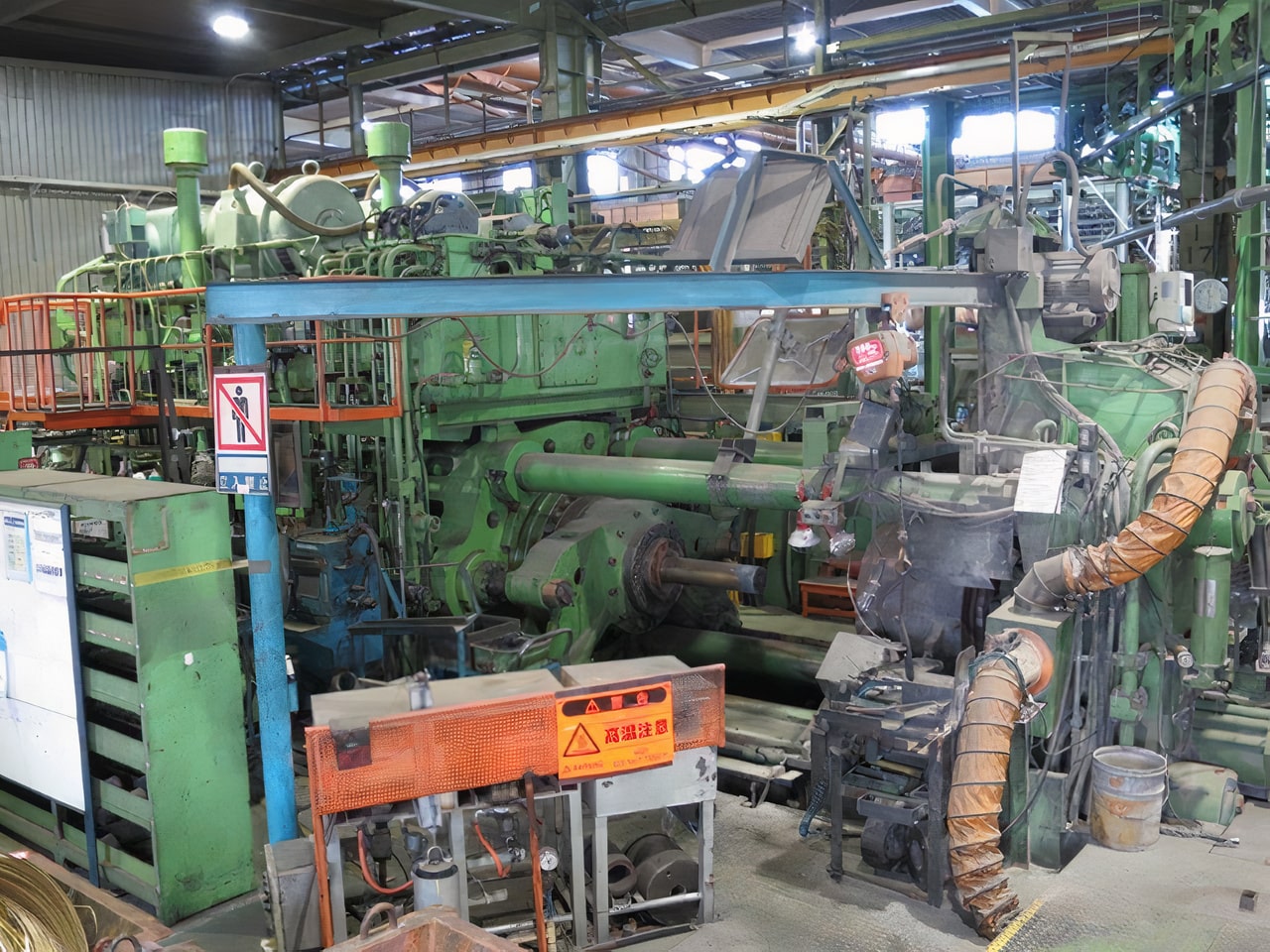

押出プレス UBE 1650 MT - 1650 トン
仕様 (EN) - 押出プレス UBE 1650 MT - 1650 トン (ID: 75927)
| Type | Extrusion press |
| Manufacturer | UBE |
| Model | 1650 MT |
| Extrusion force | 1650 ton |
| Billet diameter | 175 x 660 mm |
| Container Oven | 160 mm |
| Billet length | 660 mm |
| Die slide | 4.9 ton |
| Saw | 3.4 ton |
| Main ram max. | 1625 mm |
| Container | 350 mm |
| Die Slide | 890 mm |
| Saw | 610 mm |
| Dimensions H x W. | 4040 x 4000mm |
| Distance ram | 1230 x 1360mm |
| Center h. | 860 mm |
| Bolster dia | 280 mm |
| Speed Main ram F. | 520 mm/sec |
| Main ram F. | 190 mm/sec |
| Container Seal | 255 mm/sec |
| Container Oven | 197 mm/sec |
| Saw Down | 450 mm /sec |
| Saw Up | 565 mm/sec |
| Extrusion speed | 40 m/m — 280 m/m |
| Upper Stroke | 300 mm |
| Extrusion ratio | 50~230 |
