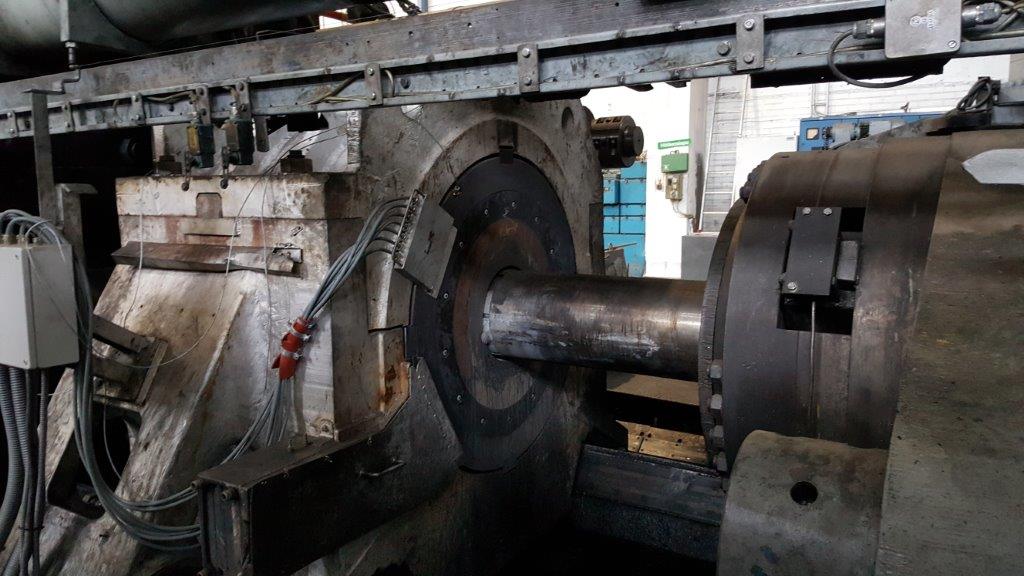

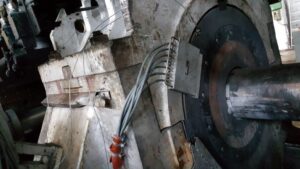

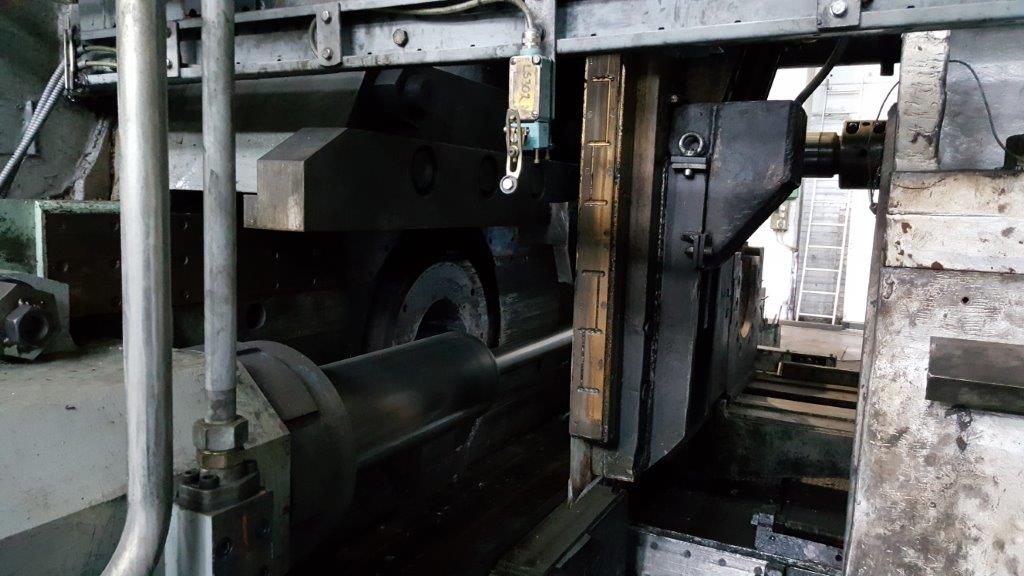

押出プレス ZTS 3500 MT - 3500 トン
仕様 (EN) - 押出プレス ZTS 3500 MT - 3500 トン (ID: 75968)
| Type | Extrusion press |
| Manufacturer | ZTS |
| Model | 3500 MT |
| Year of manufacture | 1960 |
| Force | 3500 ton |
| Weight of the press | 340 ton |
| Pressure | 315 bar |
| Dia. of the main piston | 1200/460 mm |
| Stroke lengnth of the pressing group | 2120 mm |
| Operation stroke speed – automatic | 0.1-10 mm/sec |
| Remote control | 10 – 20 mm/sec |
| Retreat speed (up to) | 300 mm/sec |
| Working pressure | 320 kp/cm² |
| Vertical shear Pressing force | 157 Mp |
| Piston dia. | 280/250 mm |
| Knife speed | 200 mm/sec |
| Knife stroke | 1000 |
