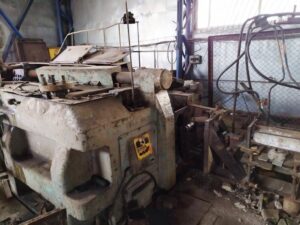

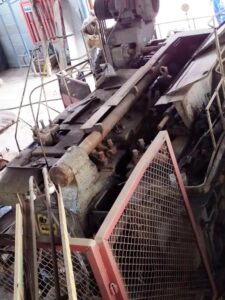

水平鍛造機 Ryazan V1139 - 800 トン
仕様 (EN) - 水平鍛造機 Ryazan V1139 - 800 トン (ID: 75587)
| Type | Forging upsetter |
| Manufacturer | Ryazan |
| Model | V1139 |
| Made in | Russia |
| Nominal force | 8000 kN |
| Stroke of movable die | 180 mm |
| Stroke of upsetting slide | |
| Full | 380 mm |
| After closing of dies | 250 mm |
| Reverse at closed dies | 130 mm |
| Number of slide strokes per minute | 25 |
| Max. dimensions of dies | |
| Length | 590 mm |
| Width | 220 mm |
| Height | 660 mm |
| Max. throat size for a work-piece pass | 130 mm |
| Distance between upsetting slide in its utmost front position and dies | 140 mm |
| Main drive electric motor power | 45 kW |
| Overall dimensions | 5000 x 7285 mm |
| Height above floor level | 2900 mm |
| Weight | 87200 kg |
