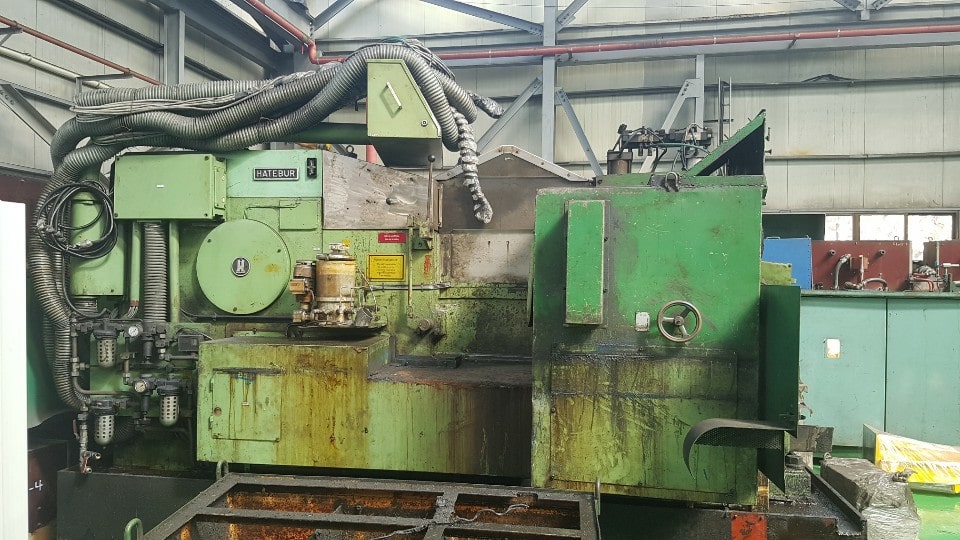

自動鍛造機 Hatebur AMP30 - 230 トン
仕様 (EN) - 自動鍛造機 Hatebur AMP30 - 230 トン (ID: 75502)
| Type | Automatic forging machine |

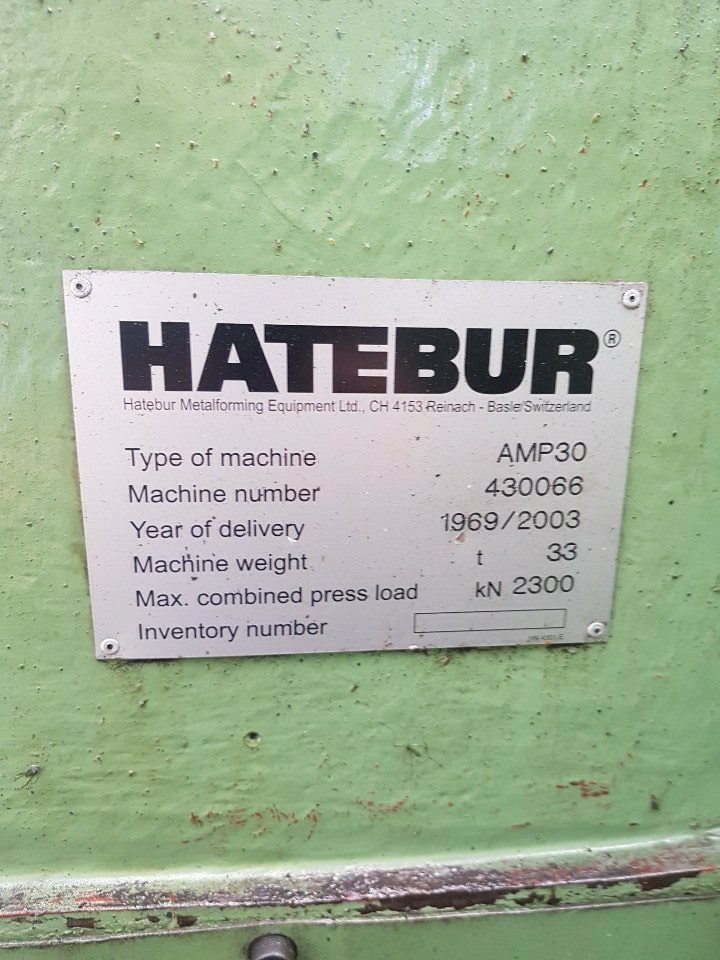

| Manufacturer | Hatebur |
| Model | AMP30 |
| Year of manufacture | 1969 |
| Overhaul | 2003 |
| Forming section | 3 |
| Press capacity | 230 ToF |
| Max outer diameter of piece | 64 mm |
| Max OD for combi blanks | 55 mm |
| Bar diameter | 19 — 40 mm |
| Cutting width | 22 — 72 mm |
| Weight of piece | 50 — 700 gr |
| Main ram stroke | 160 mm |
| Stroke | 70 — 120 st/min |
| Main motor | 56 kW |

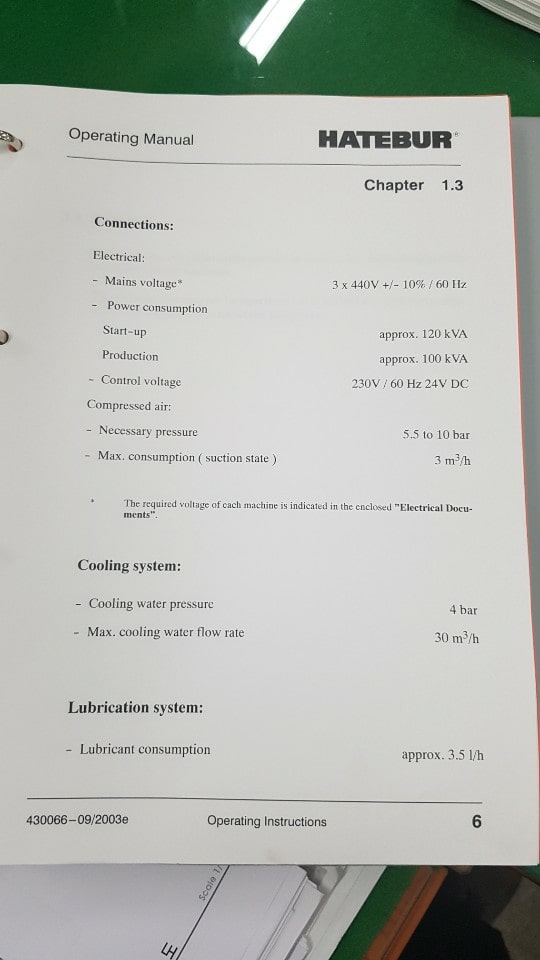

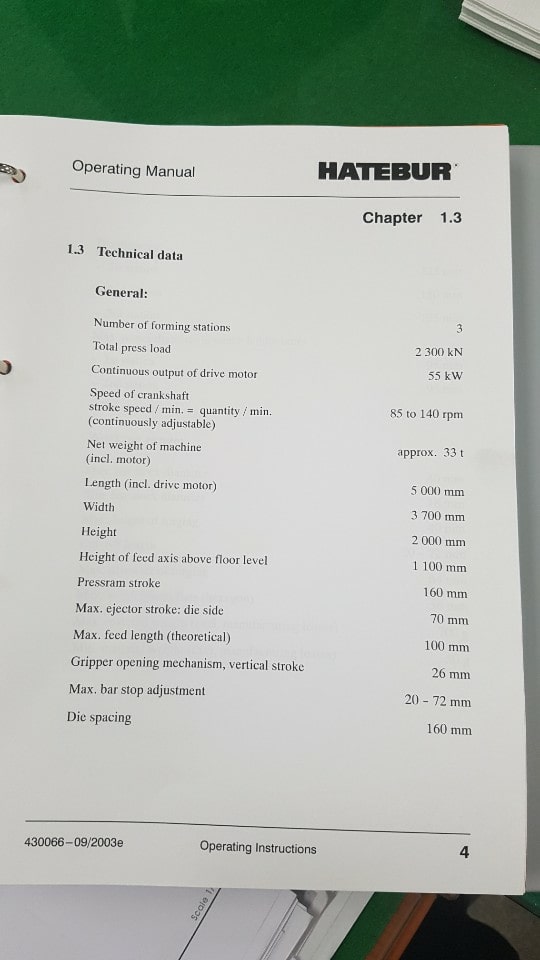

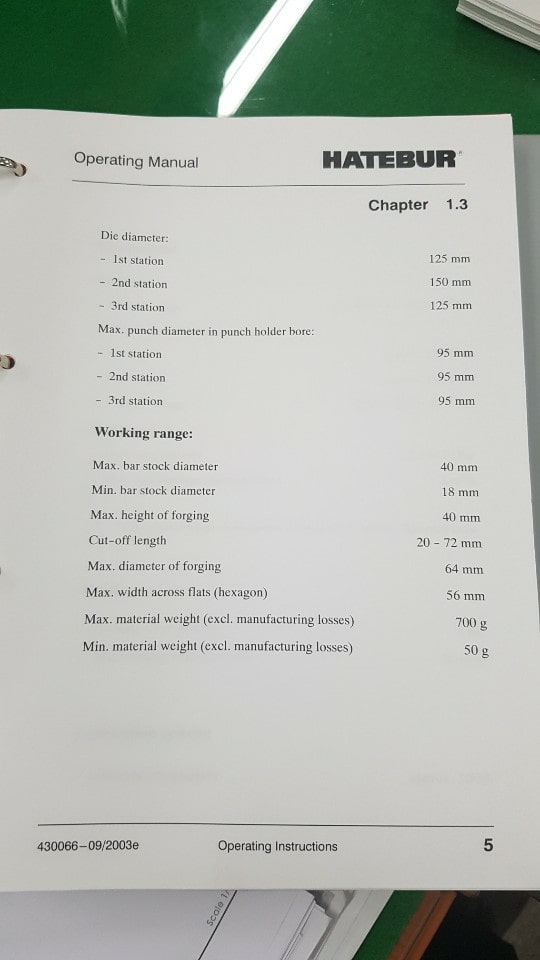

| Technical documentation | yes |
| Electric power | 100 KVA |

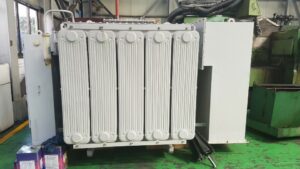

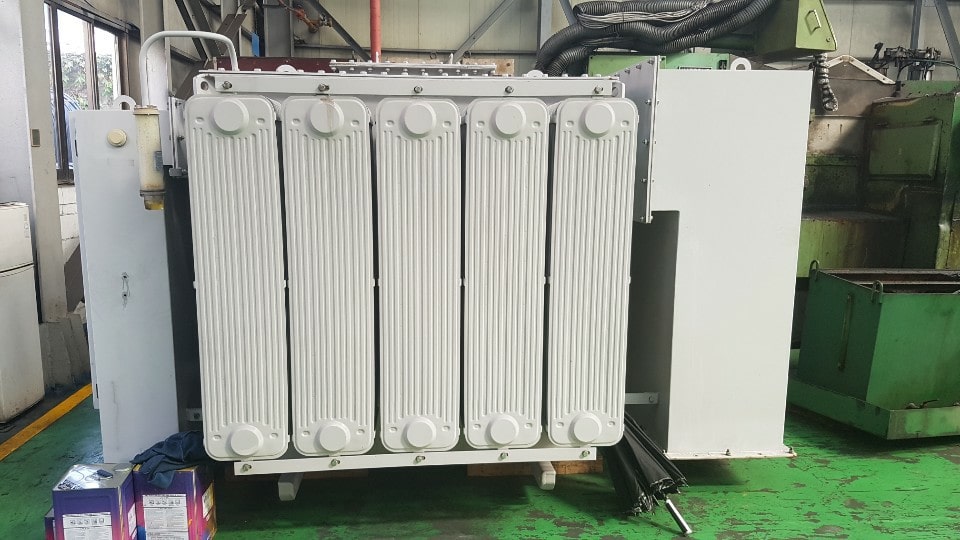

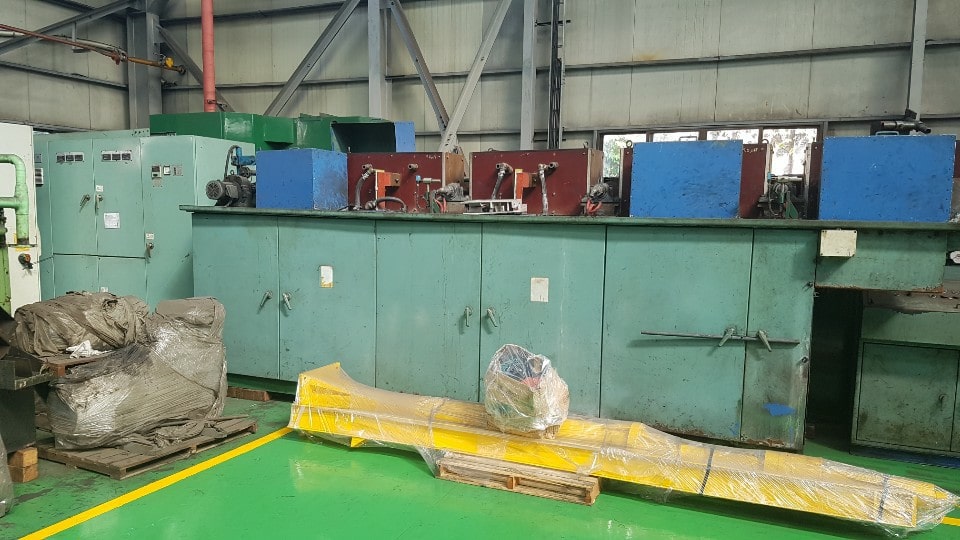

| Power of induction heating installation | 800 kW |
| Weight | 38.8 Ton |
