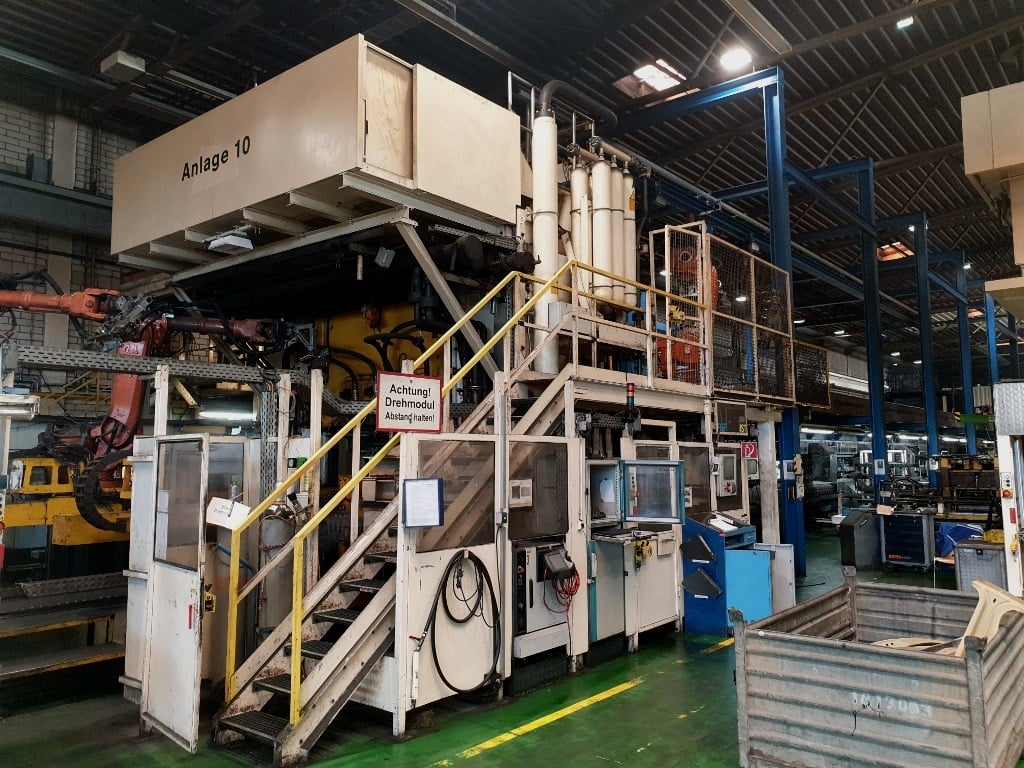

油圧プレス Lasco TZP 1000 So - 800 トン
仕様 (EN) - 油圧プレス Lasco TZP 1000 So - 800 トン (ID: 75769)
| Type | Hydraulic press |
| Manufacturer | Lasco |
| Model | TZP 1000 So |
| Pressing force, continuously adjustable | 800 ton |
| Retraction force of the ram | 90 ton |
| Stroke of the slide, continuously adjustable | 900 mm |
| Greatest distance between table and ram (top stroke) | 1700 mm |
| Smallest distance between table and ram (stroke below) | 800 mm |
| Empty upward speed of the ram | 390 mm / s |
| Empty downward speed of the ram | 500 mm / s |
| Press speed with pressure dependent | |
| Capacity control | 40-15 mm / s |
| Total weight of the press | 135 ton |
| Electrical equipment | |
| Operating voltage | 400 V — DS, 50 Hz |
| Control voltage | 230 V, 50 Hz |
| Valve voltage | 24 V — DC |
| 2 three-phase motors for the press drive | 75kW each |
| 1 three-phase motor for the control pump drive | 7.5 kW |
| 1 three-phase motor for the filter and cooling circuit | 4 kW |
| Circuit diagrams | see register «F» |
