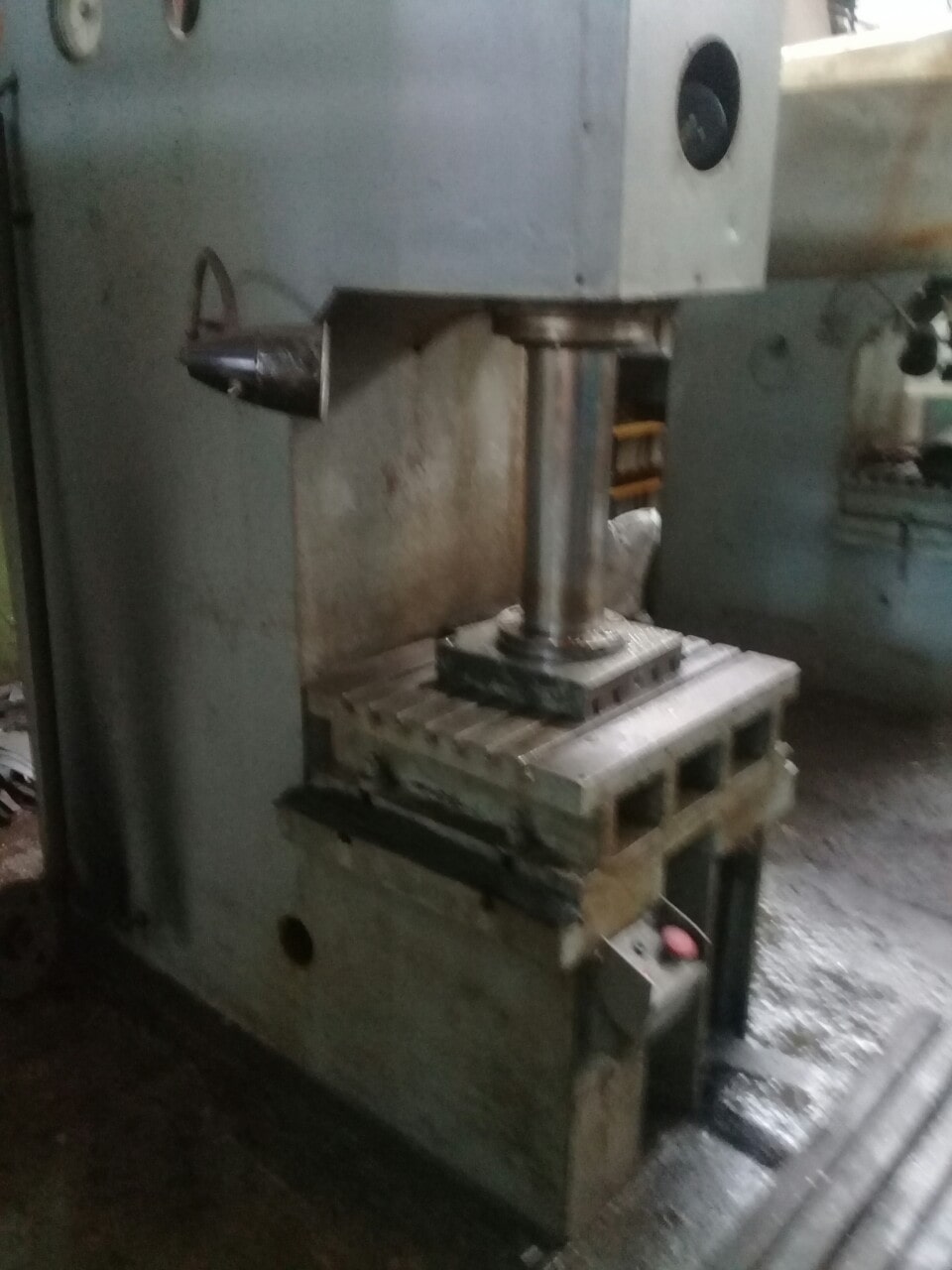

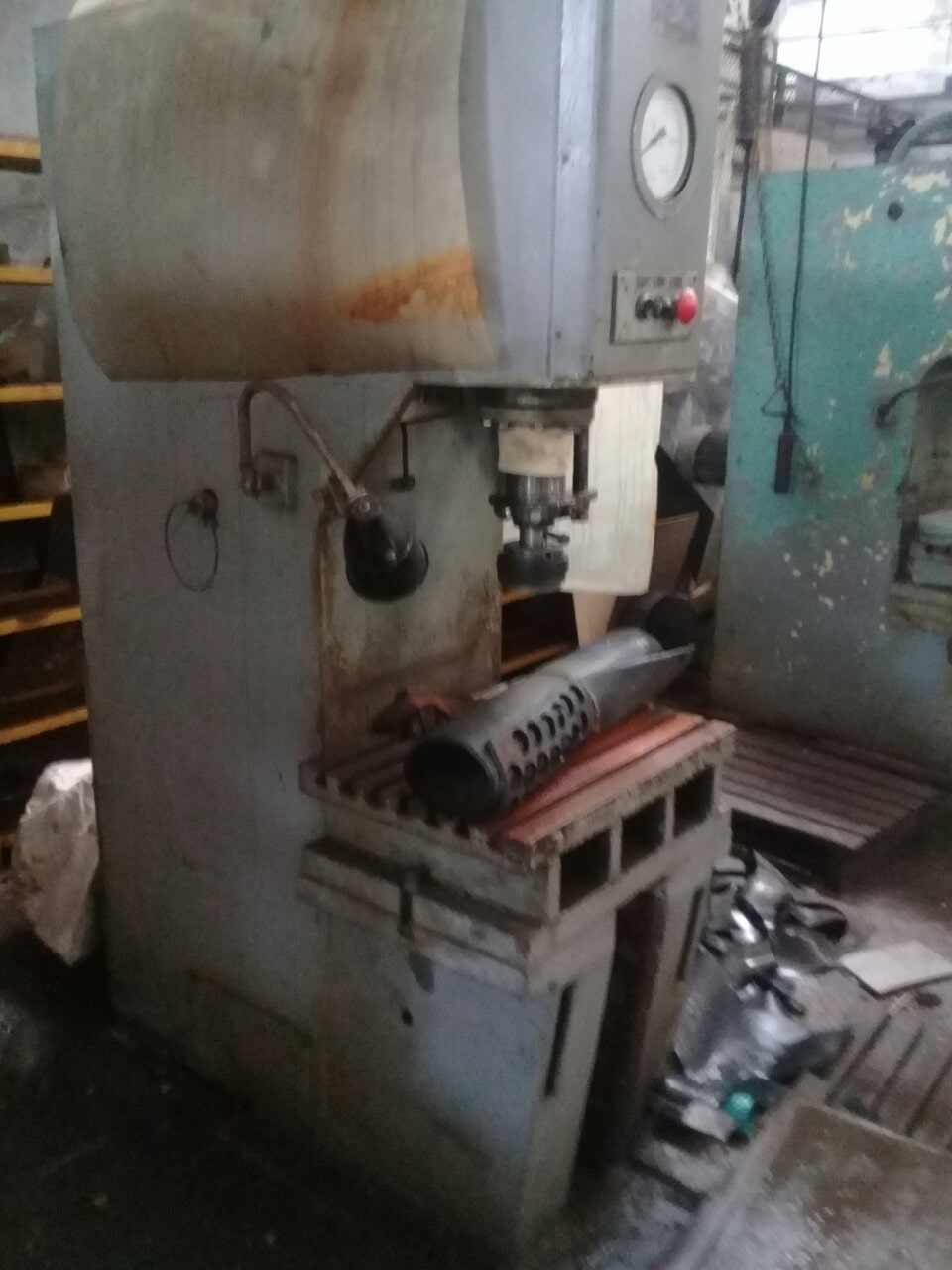

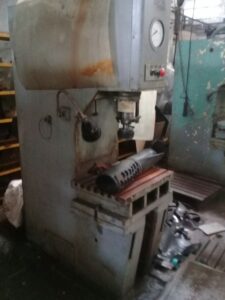

油圧プレス P6328 - 63 トン
仕様 (EN) - 油圧プレス P6328 - 63 トン (ID: 75157)
| Type | Hydraulic press |
| Manufacturer | |
| Model | P6328 |
| Nominal force of a press | 63 ton |
| Course of the ram | 500 mm |
| The greatest distance between a table and the ram | 710 mm |
| Table sizes: at the left — to the right | 710 mm |
| Table sizes: in front — back | 560 mm |
| Power of the drive | 11 kW |
| Overall dimensions (without mechanization) | |
| At the left — to the right | 1060 mm |
| In front — back | 1800 mm |
| Car height over floor level | 3000 mm |
| Mass of a press, no more, than a kg | 3200 mm |
