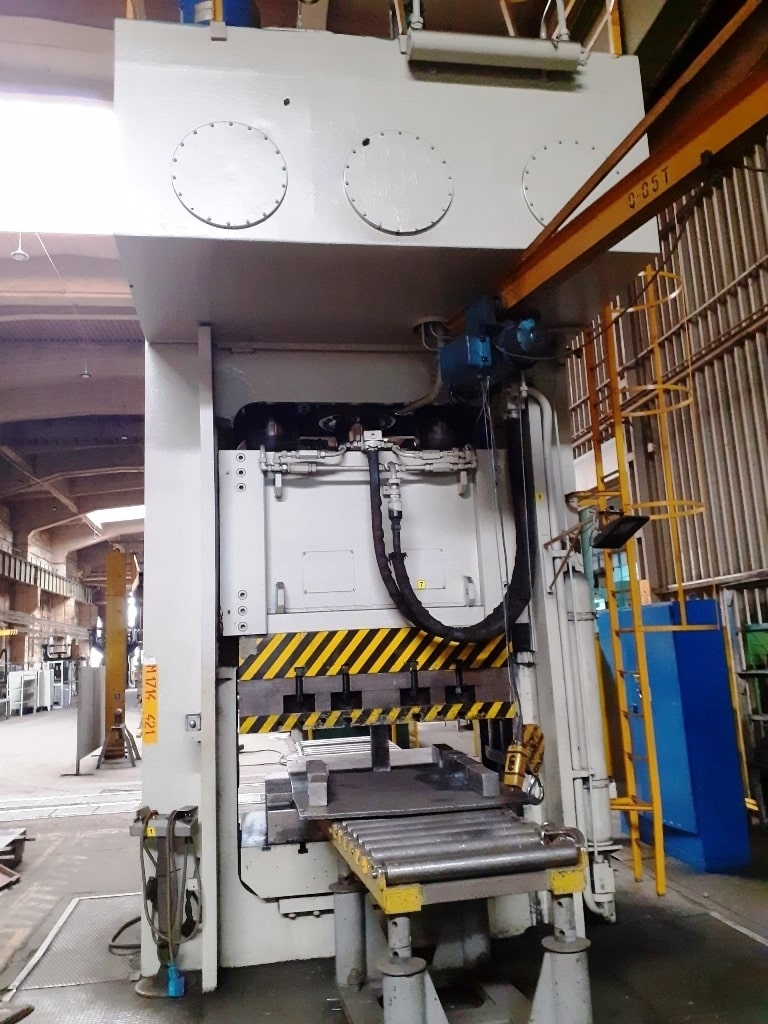

油圧プレス SMG HPU 1000-1800/1150 - 1000 トン
仕様 (EN) - 油圧プレス SMG HPU 1000-1800/1150 - 1000 トン (ID: 75874)
| Type | Hydraulic press |
| Manufacturer | SMG |
| Model | HPU 1000-1800/1150 |
| Year of construction | 1982 |
| Total force | 1000 ton |
| Slide retraction force | 590 kN |
| Ram stroke | 400 mm |
| Distance table / ram | 1200 mm |
| Ram surface (width / depth) | 1800/1150 mm |
| Clear width between the uprights | 1810 mm |
| Table clamping surface (width / depth) | 1800/1150 mm |
| Table ejector force | 800 kN |
| Table ejector stroke | 125 mm |
| Table ejector surface (width / depth) | 1260/700 mm |
| Drive power | 90 kW |
| Pump output | 360/1500 l/min, U/min |
| Rapid speed (down / up) | 400/244 mm/s |
| V max . | 16/23, 5/47 mm/s |
| V nominal pressure | 8.5/13/25 mm/s |
| Ram — ejector hydr. (number / stroke) | 1 x 50/2000 mm/kN |
| Plunger pad area (width / depth) | 1250/760 mm |
