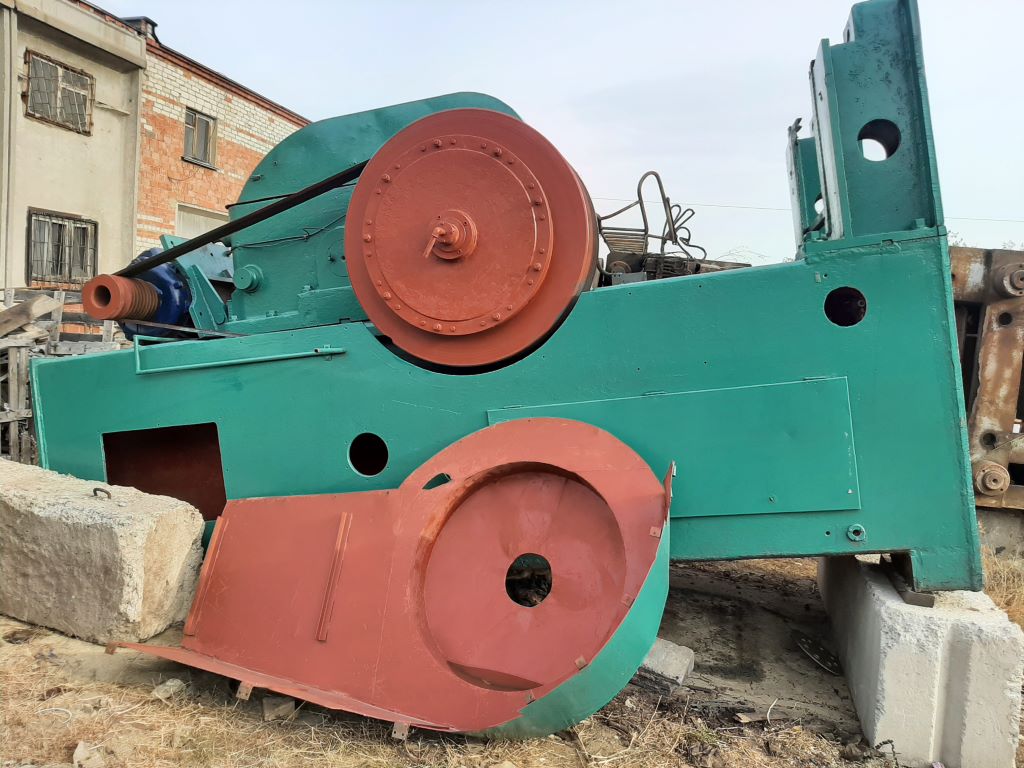

冷間押出プレス Barnaul K0036 - 400 トン
仕様 (EN) - 冷間押出プレス Barnaul K0036 - 400 トン (ID: 76345)
| Type | Cold extrusion press |
| Manufacturer | Barnaul |
| Model | K0036 |
| Max. capacity | 400 tons |
| Slide stroke | 240 mm |
| Slide strokes per 1 min | 25 |
| Bolster plate to ram adjustment stroke | 20 mm |
| Shut height | 750 mm |
| Bed dimensions | 1250 x 1250 mm |
| Bolster plate thickness | 200 mm |
| Lower ejection stroke | 240 mm |
| Lower ejection force | 50 tons |
| Upper ejection stroke | 20 mm |
| Upper ejection force | 16 tons |
| Dimensions | 2500 x 2260 x 4515 mm |
| Total weight | 36690 kg |
