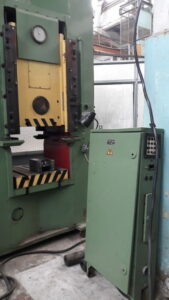

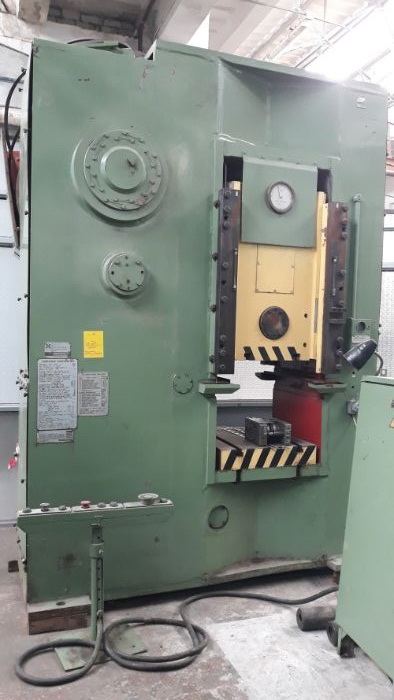

冷間押出プレス Barnaul KB0032 - 160 トン
仕様 (EN) - 冷間押出プレス Barnaul KB0032 - 160 トン (ID: 75804)
| Type | Cold extrusion press |
| Manufacturer | Barnaul |
| Model | KB0032 |
| Rated capacity on the slide | 160 ton |
| Slide stroke | 160 mm |
| Frequency of the continuous strokes of the slide | 50/1 min |
| Max single-stroke engagements | 20/1 min |
| Adjustment of the tool’s height | 16 mm |
| Maximum tools shut-height | 435 mm |
| Dimensions of the bolster plate | |
| Left-to-right | 630 mm |
| Front-to-back | 630 mm |
| Overall dimensions | 3622 x 2220 x 3622 mm |
| Total weight | 11460 kg |
