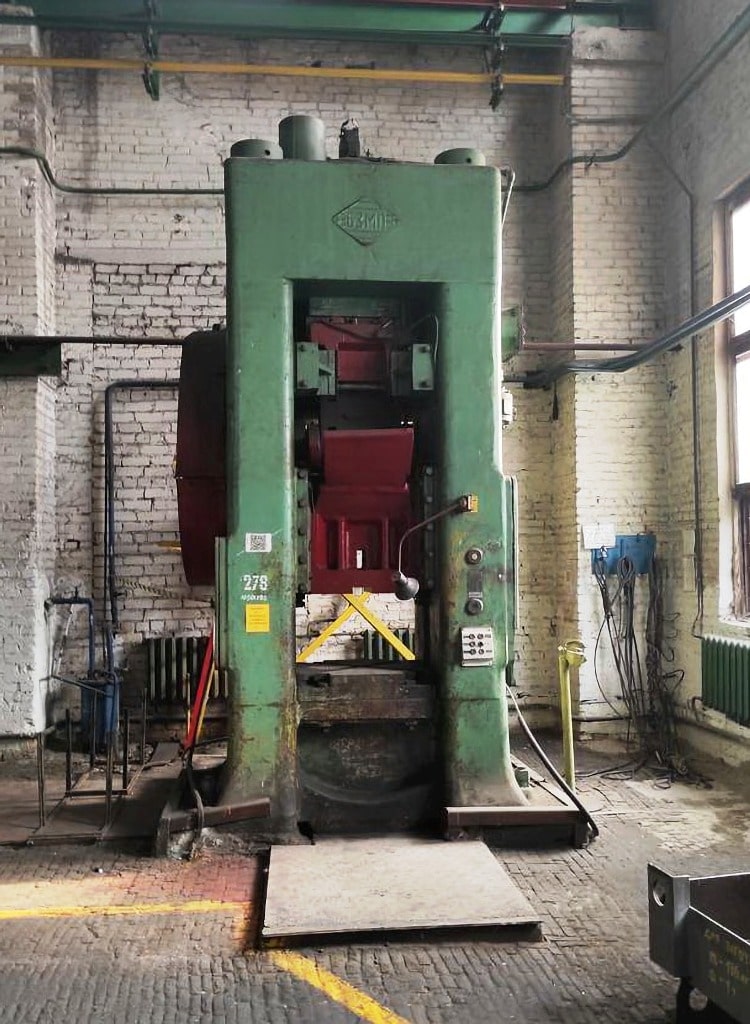

ナックルジョイントプレス Barnaul K846B - 800 トン
仕様 (EN) - ナックルジョイントプレス Barnaul K846B - 800 トン (ID: 75858)
| Type | Knuckle joint press |
| Manufacturer | Barnaul |
| Model | K846B |
| Pressure | 800 tons |
| Number of strokes per minute | 33 |
| Slide stroke | 160 mm |
| Adjustment of rod length | 15 mm |
| Closed height | 650 mm |
| Table size | 860 х 840 mm |
| Max. distance between table and slide in its lower position | 630 mm |
| Distance between guides | 670 mm |
| Height of a table above floor | 700 mm |
| Main motor power | 28 kW |
| Press dimensions | |
| — left-to-right | 2350 mm |
| — front-to-back | 2300 mm |
| — height | 4290 mm |
| Press weight | 23 tons |
