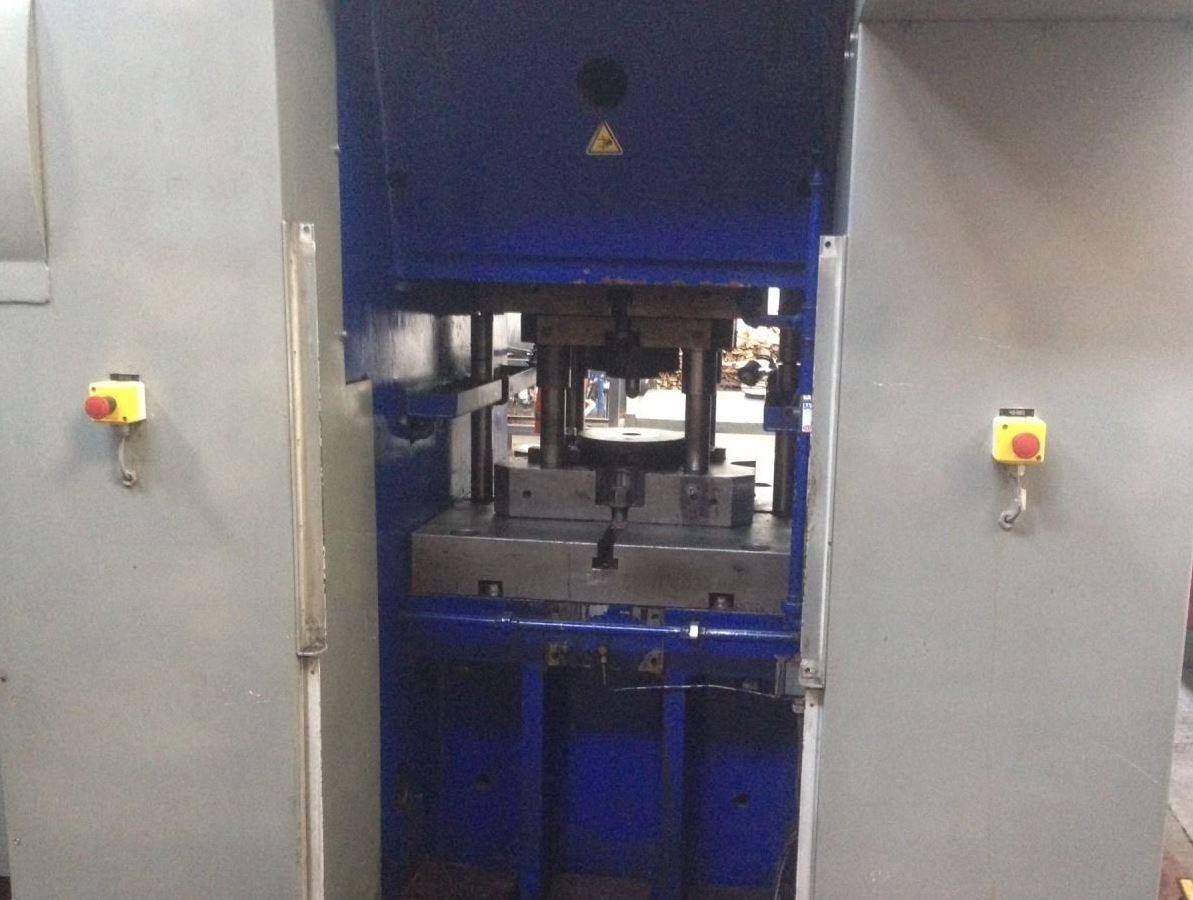

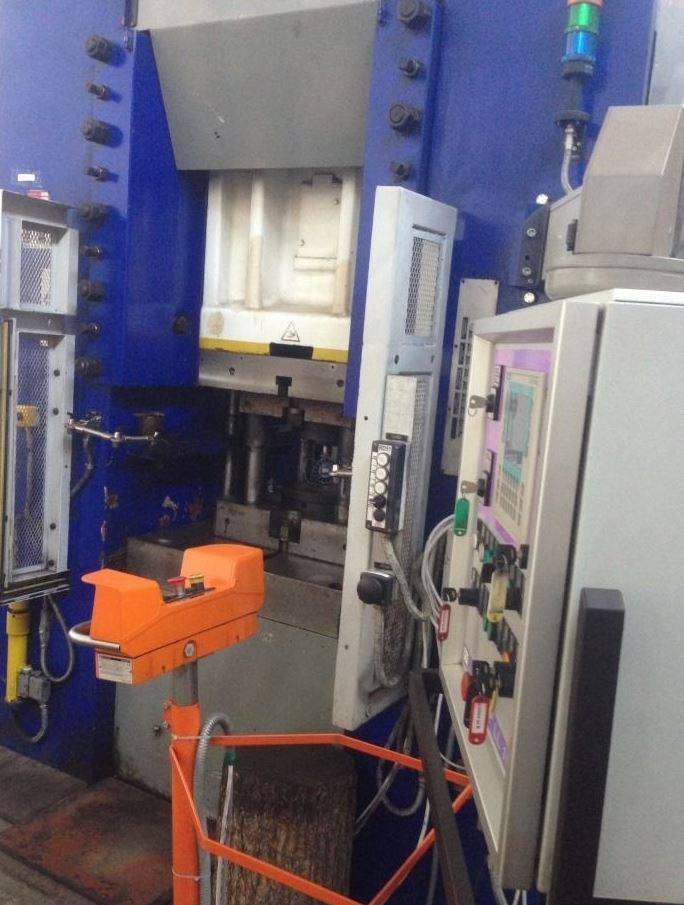

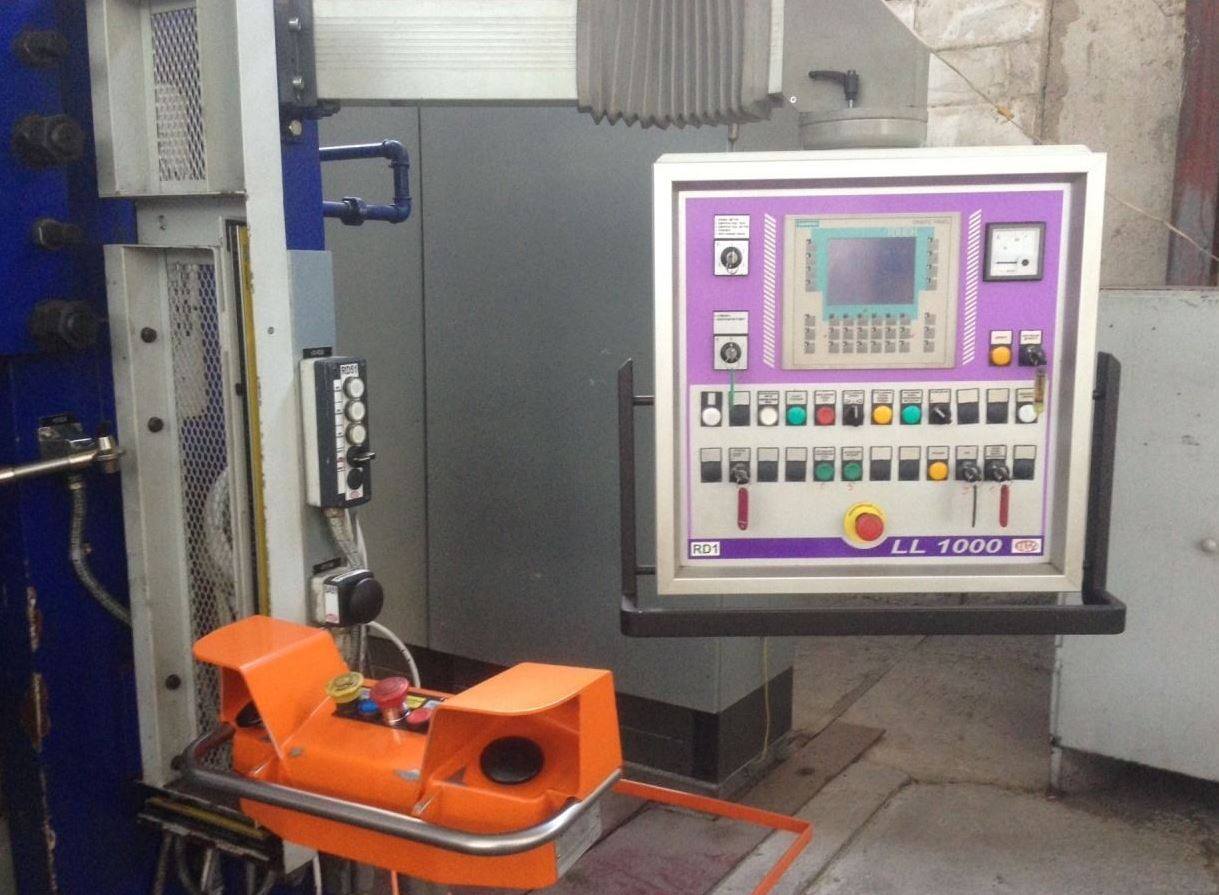

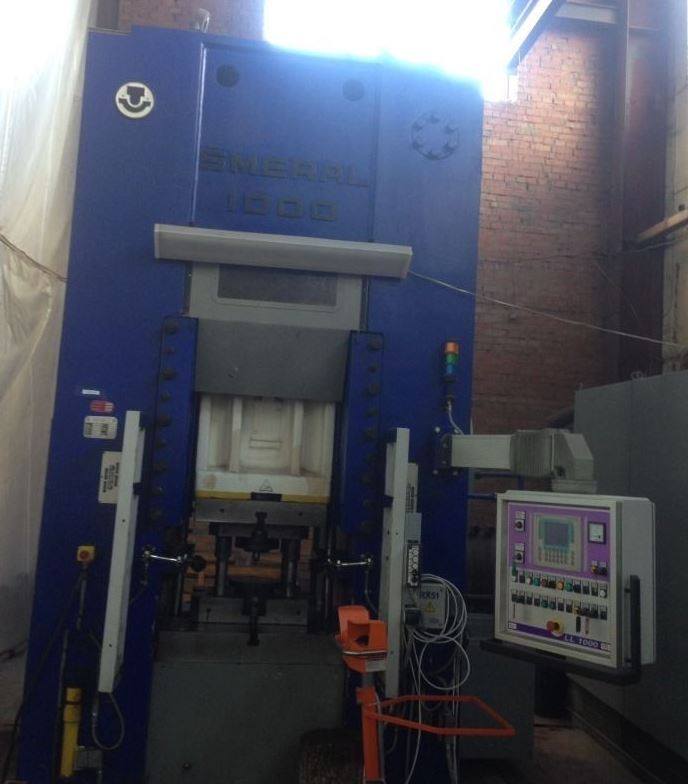

ナックルジョイントプレス Smeral LL1000 - 1000 トン
仕様 (EN) - ナックルジョイントプレス Smeral LL1000 - 1000 トン (ID: S79094)
| Type | Knuckle joint press |
| Manufacturer | Smeral |
| Model | LL1000 |
| Capacity | 1000 tons |
| Stroke | 140 mm |
| Number of strokes | 36/min |
| Max. distance between ram and table | 630 mm |
| Width of working area between rods | 740 mm |
| Table plate size | 910×920 mm |
| Ram adjustment | 15 mm |
| Stroke of lower ejector | 140 mm |
| Main motor power | 28 kw |
| Rpm of main motor | 1450 U/min |
| Total power requirement | 30 kW |
| Air pressure needed | 6 at |
| Dimensions of machine (length x width x height) | 2100 x 2500 x 4700 mm |
| Height above floor | 3800 mm |
| Total weight of machine | 31000 kg |
