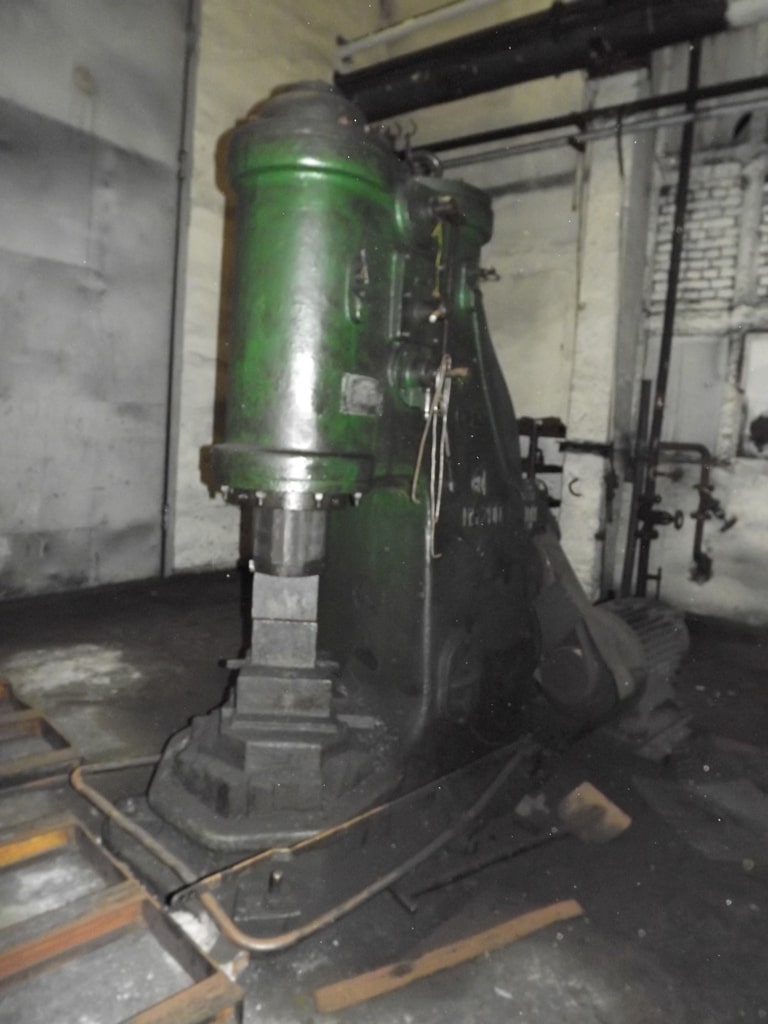

自由鍛造ハンマー FUK MS-200 - 200 kg
仕様 (EN) - 自由鍛造ハンマー FUK MS-200 - 200 kg (ID: 75424)
| Type | Open die forging hammer |
| Manufacturer | FUK |
| Model | MS-200 |
| Type | MS-200 |
| Year of construction | 1961 |
| Max impact energy | 420 kGm |
| Weight of the part falling | 200 kg |
| Stroke of | 420 mm |
| Max number of jumps per minute | 150 |
| Length x width x height | 2755 x 1530 x 2515 mm |
| Distance of the ram’s axis from the | 400 mm body |
| Max diameter of the sliding material | 170 mm |
| Weight | 8000 kg |
| Engine power | 21 kW |
| Operating voltage | 400V, 50HZ |
| Maximum weight of the forgings | 1 — 5 kg |
