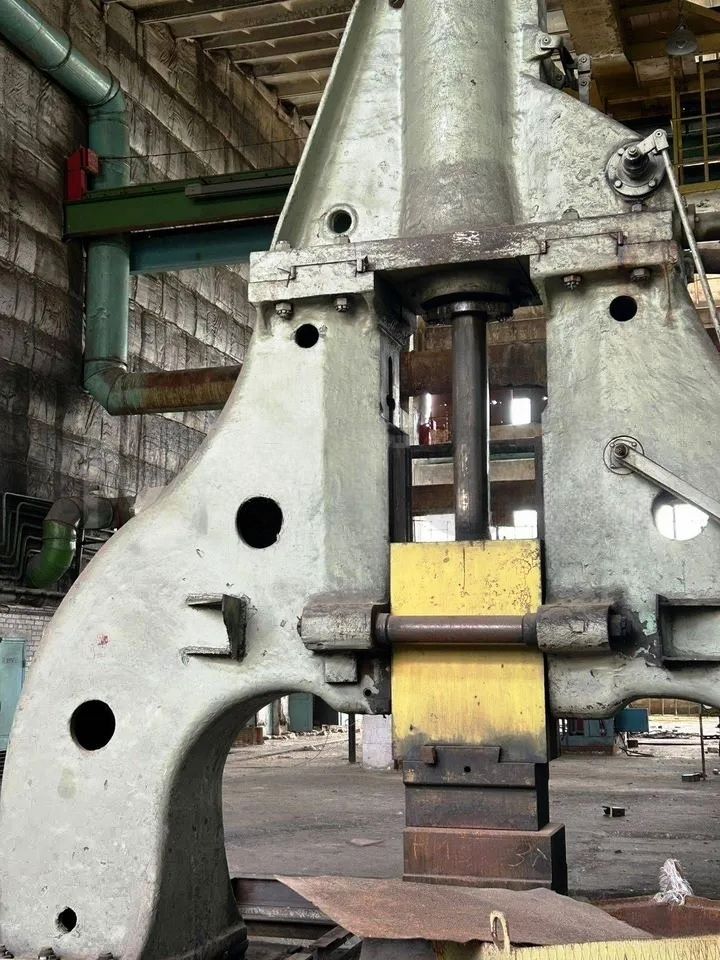

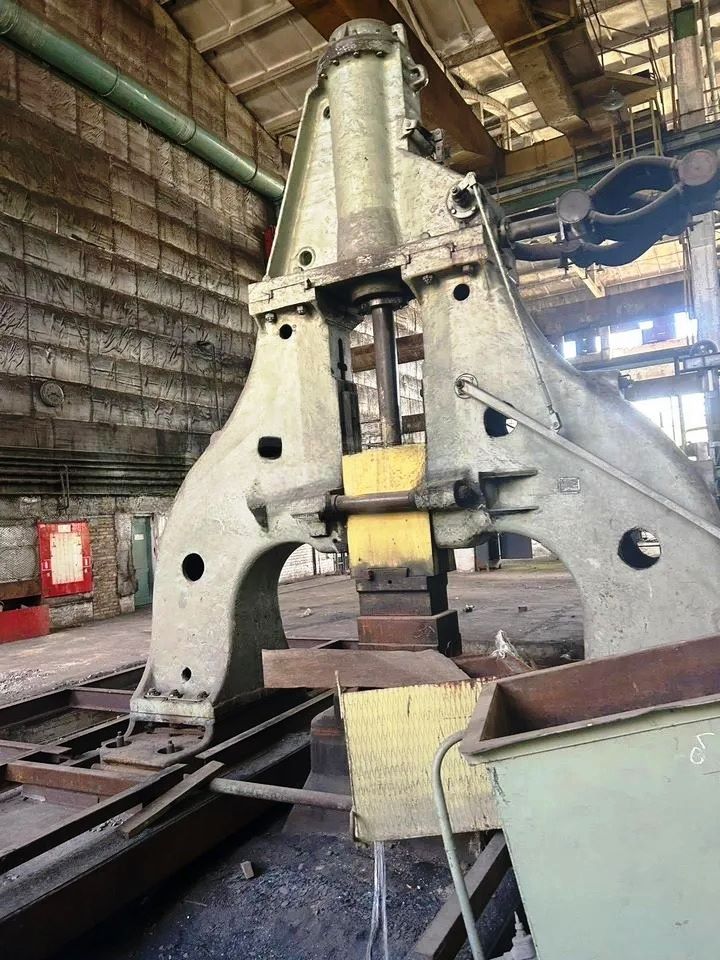

自由鍛造ハンマー Kalinin M1345 - 3 トン
仕様 (EN) - 自由鍛造ハンマー Kalinin M1345 - 3 トン (ID: 76356)
| Type | Open die forging hammer |
| Manufacturer | Kalinin |
| Model | M1345 |
| Impact energy | 80 kj |
| Nominal mass of drop parts | 3150 kg |
| Max. number of blows per minute | 56 |
| Distance clear between columns | 2800 mm |
| Working zone daylight | 630 mm |
| Bottom die impression-to-floor distance | 750 mm |
| Die impression size | 600 x 340 mm |
| Steam pressure | 0,7 — 0,9 Mpa |
| Compressed air pressure | 0,6 — 0,8 Mpa |
| Hammer dimensions | 5100 х 2490 mm |
| Hammer height above floor level | 5890 mm |
| Weight of the hammer without anvil block | 27400 kg |
| Anvil block weight | 47200 kg |
