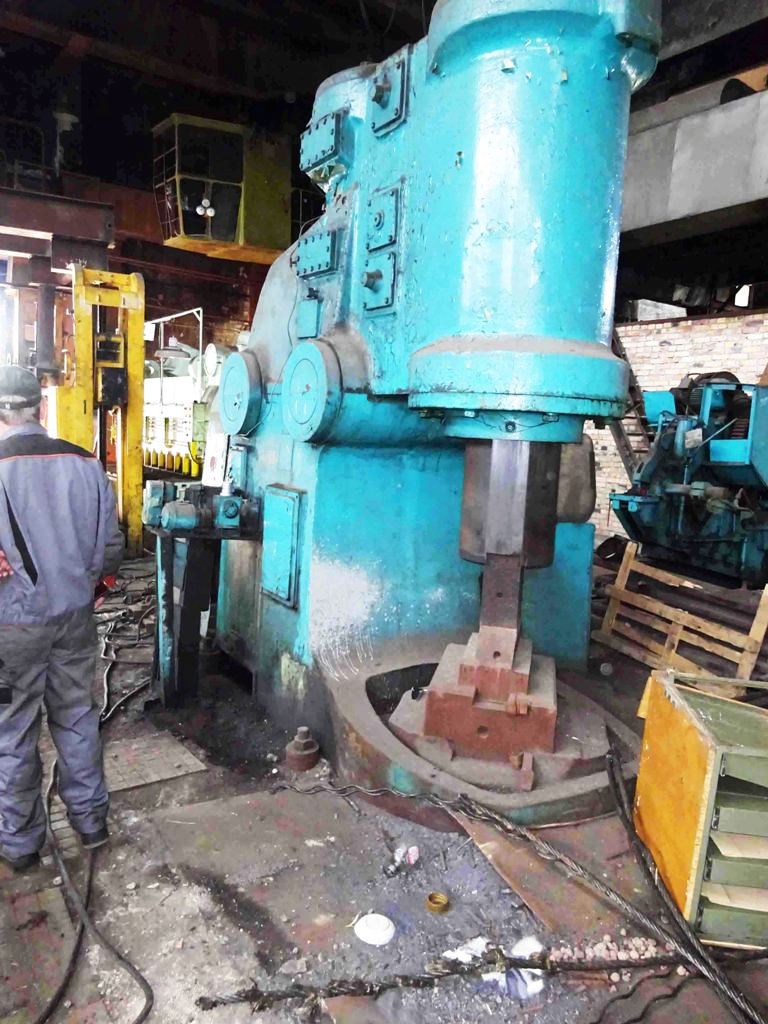

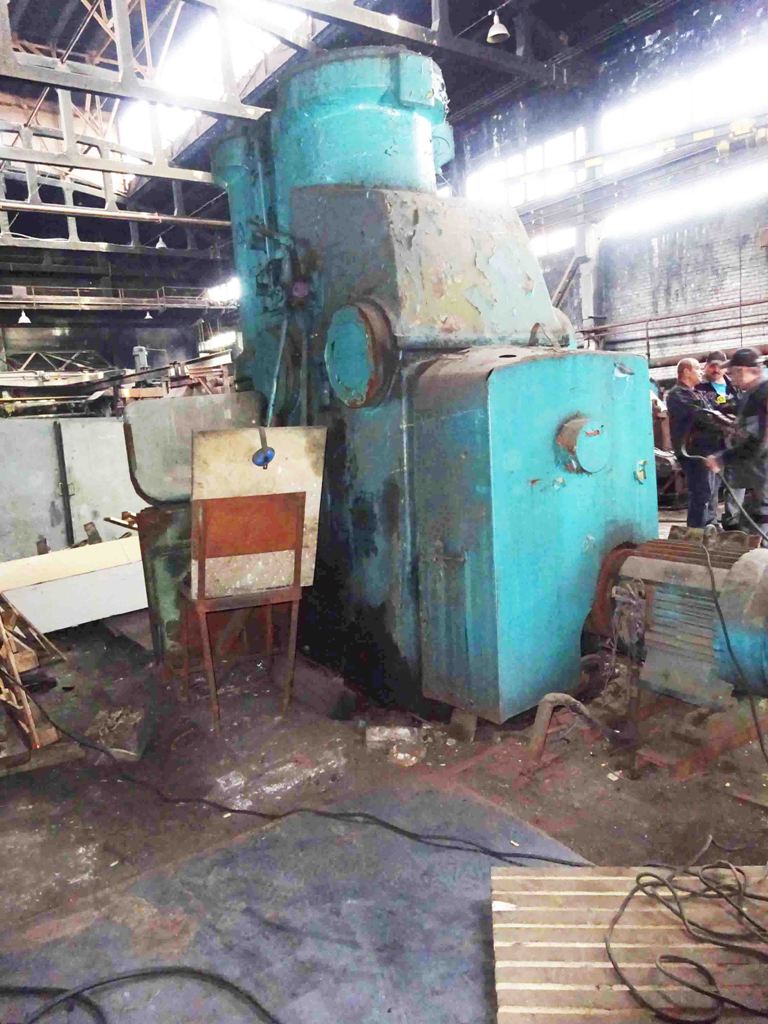

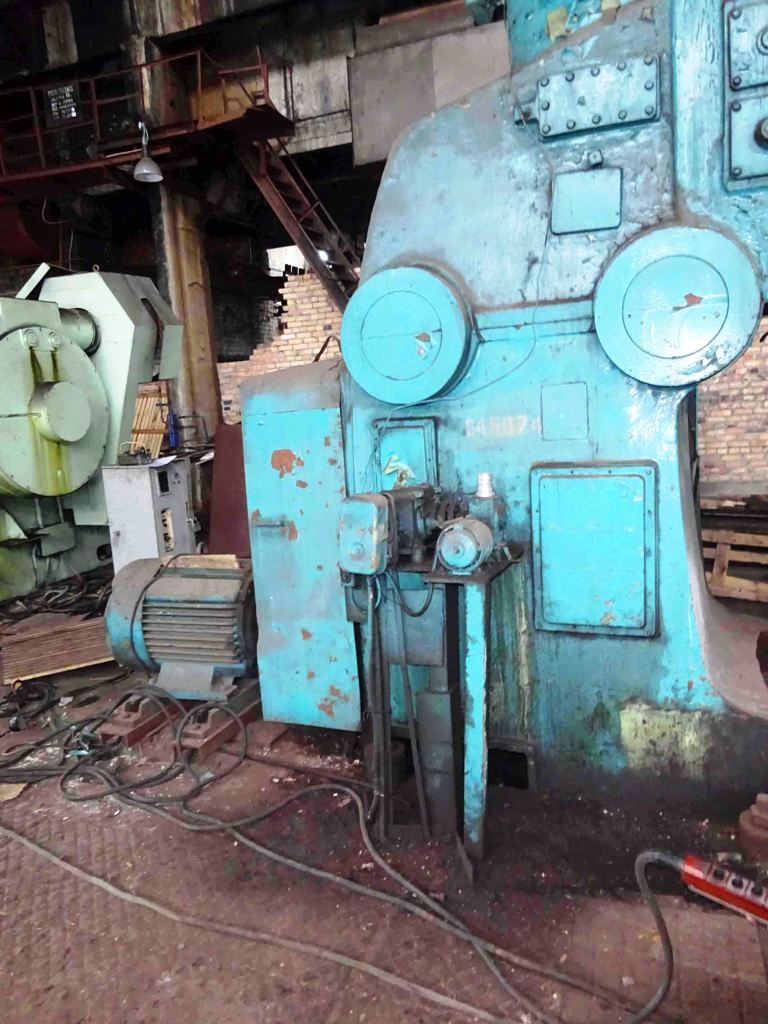

自由鍛造ハンマー Kalinin M4140A - 1 トン
仕様 (EN) - 自由鍛造ハンマー Kalinin M4140A - 1 トン (ID: 75730)
| Type | Open die forging hammer |
| Manufacturer | Kalinin |
| Model | M4140A |
| Year of manufacture app. | 1985 |
| Nominal weight of falling parts | 1 ton |
| Energy of impact | 30 kJ |
| The greatest number of impacts in a minute | 103 |
| Ram axis-to-frame distance | 800 mm |
| Working zone daylight | 750 mm |
| Die impression size | 360 x 140 mm |
| Lower die impression-to-floor distance | 750 mm |
| Optimum workpiece cross-sectional dimensions | |
| Square | 160 mm |
| Rounded | 180 mm |
| Main electric motor power | 75 kW |
| Machine dimensions | 4400 x 1780 x 3570 mm |
| Weight of a hammer | 23000 kg |
| Weight of a an anvil-block | 14000 kg |
