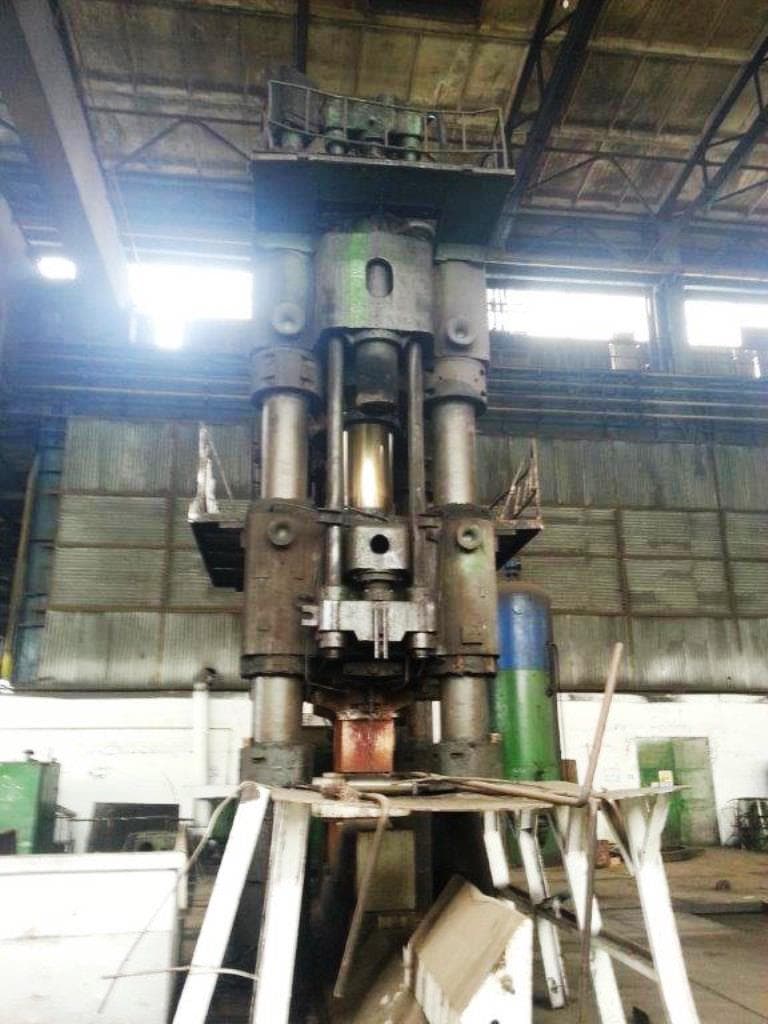

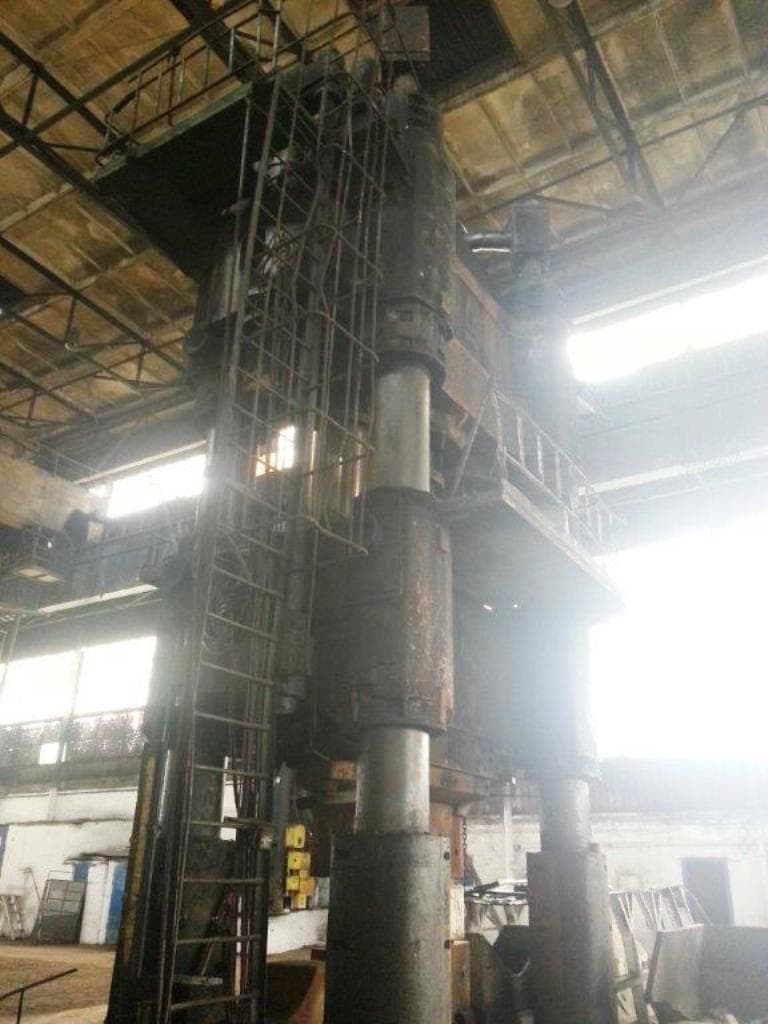

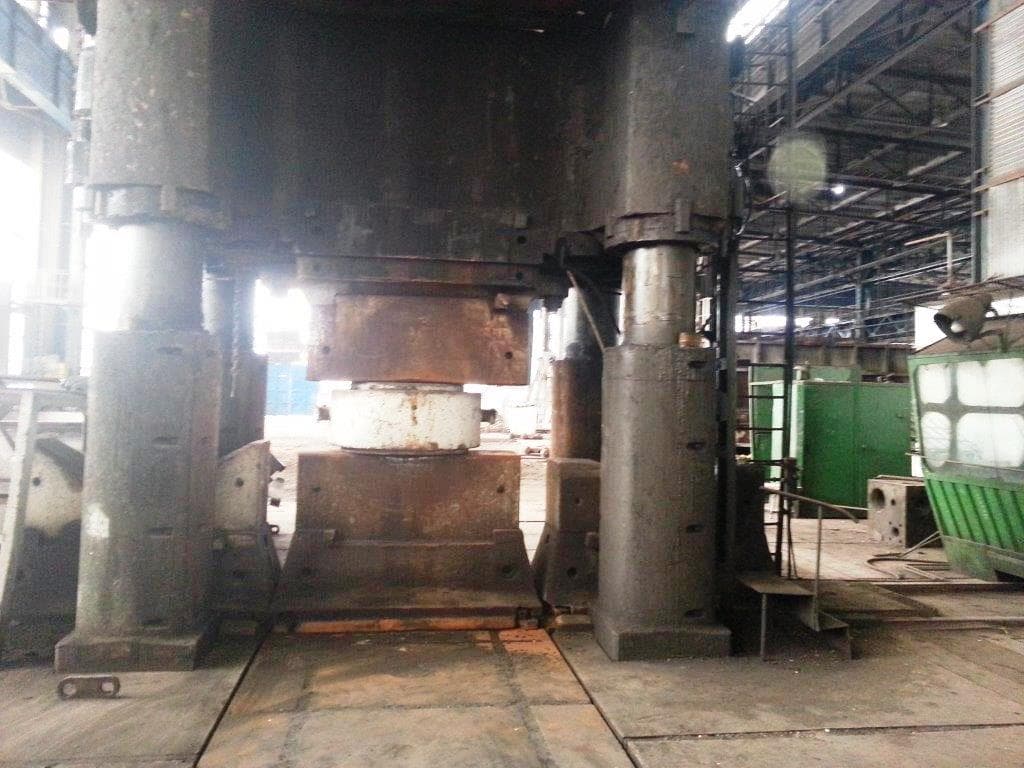

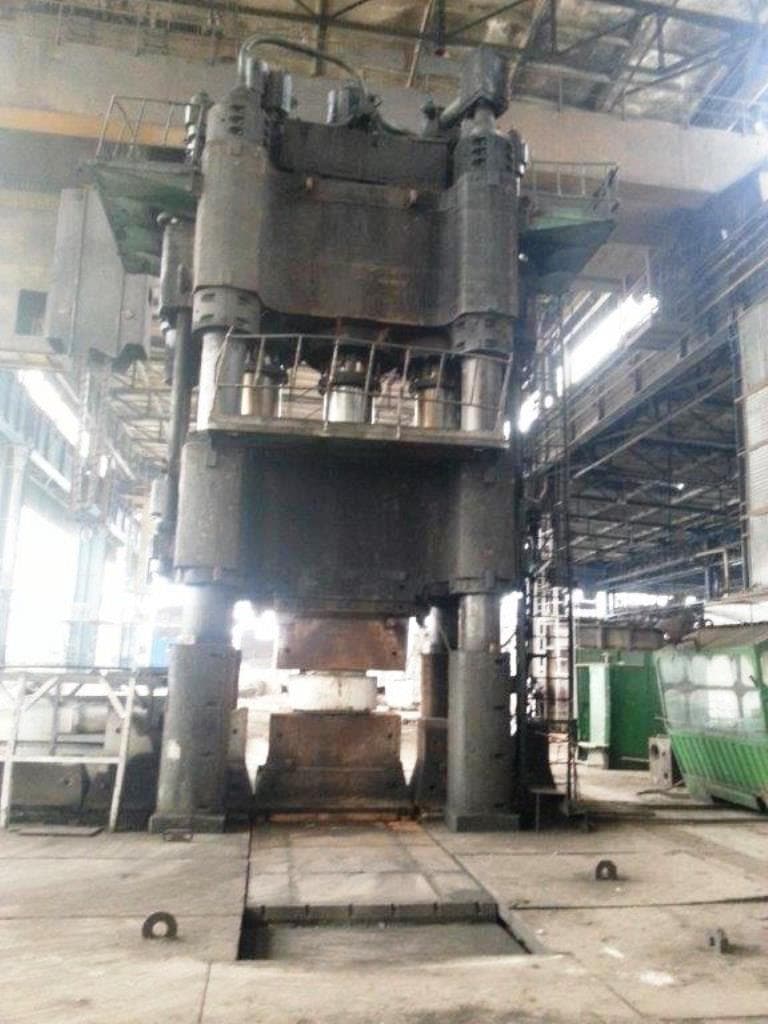

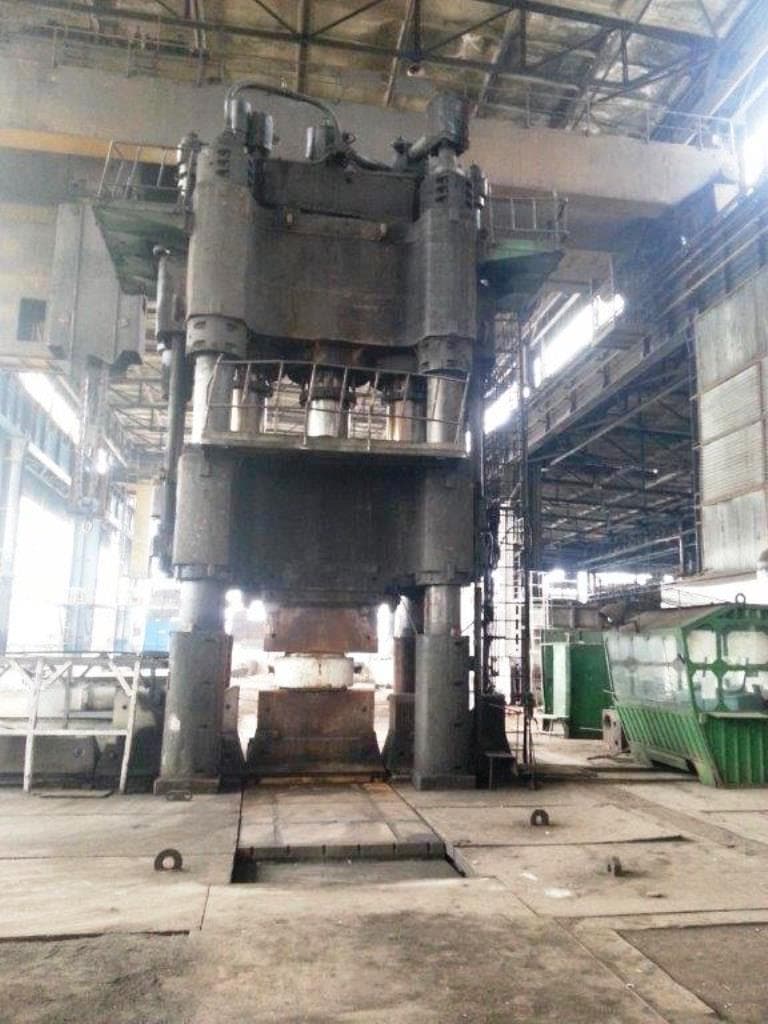

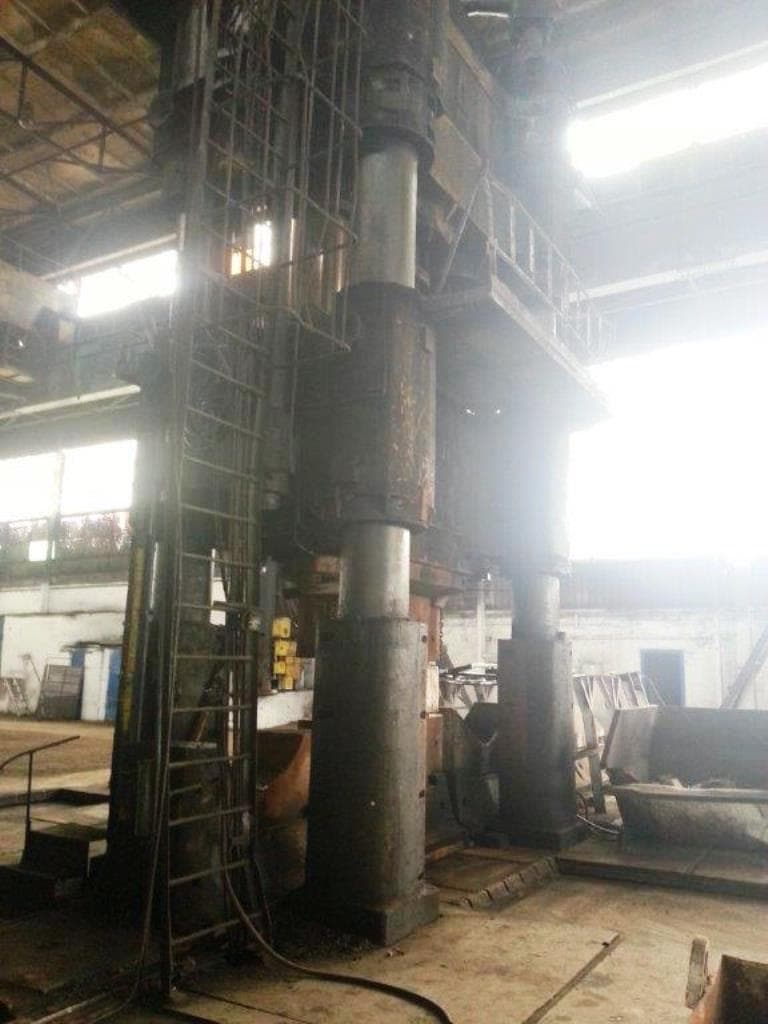

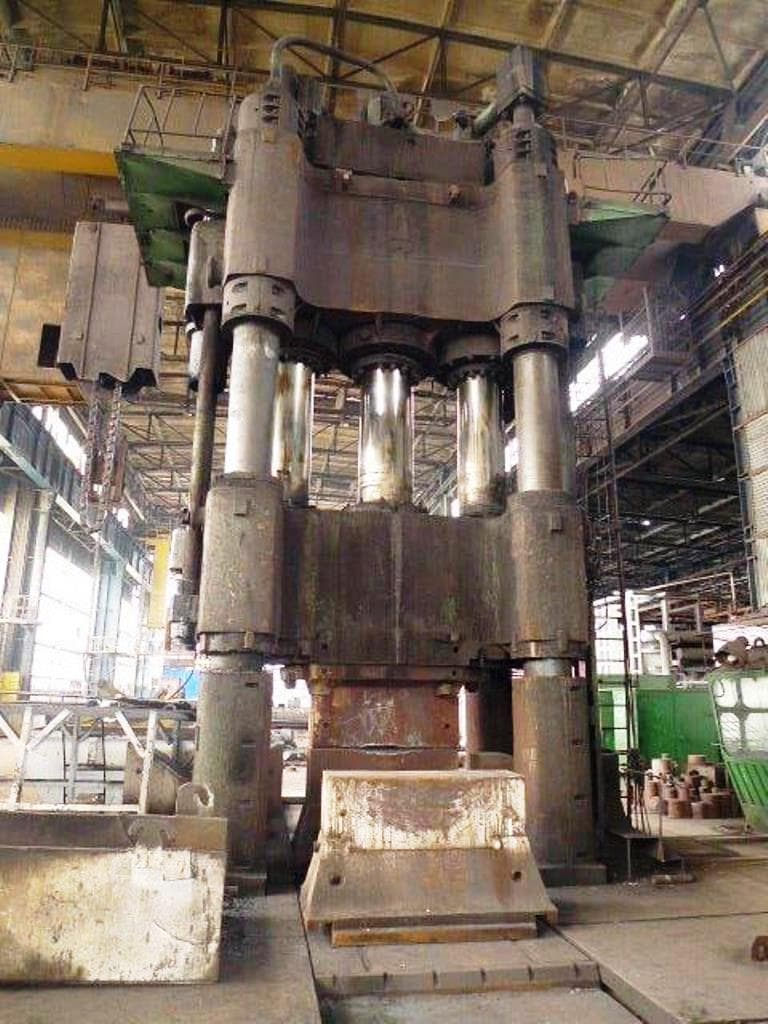

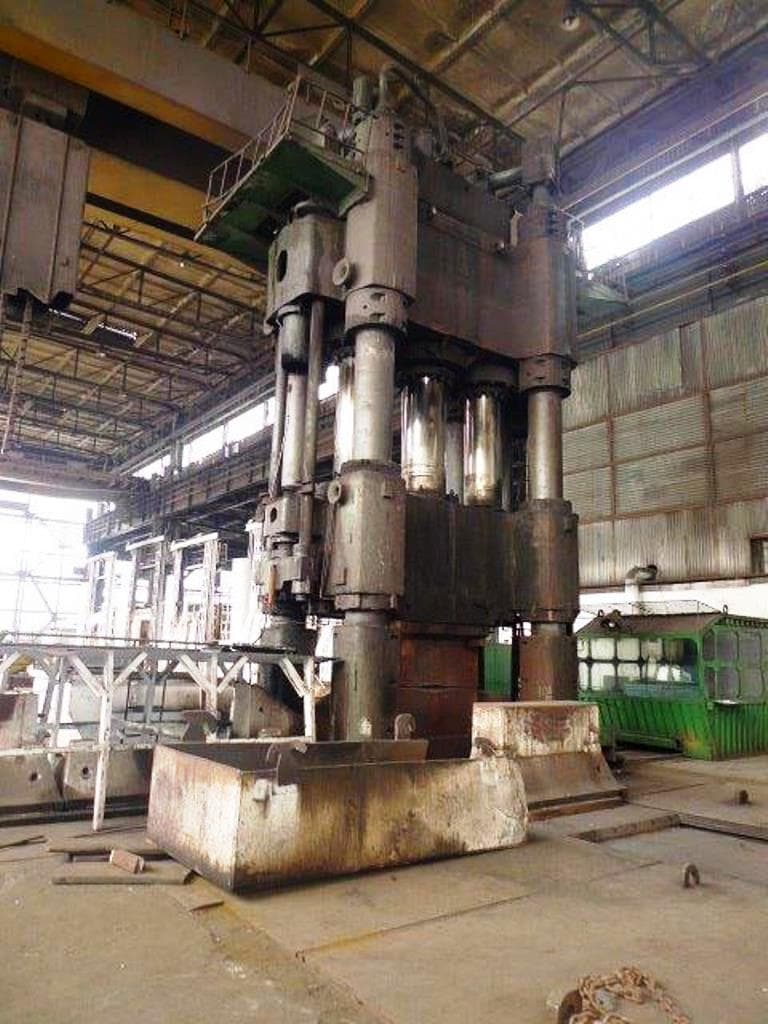

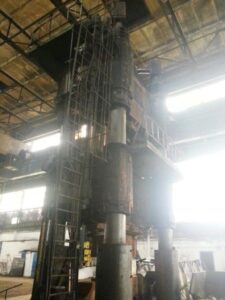

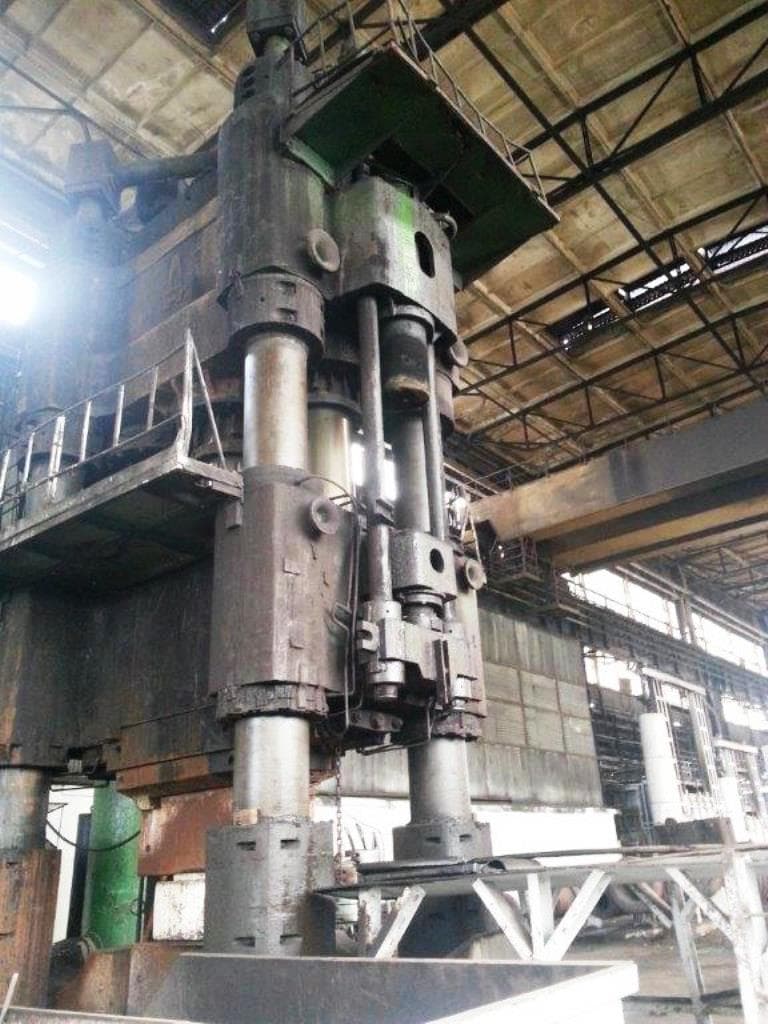

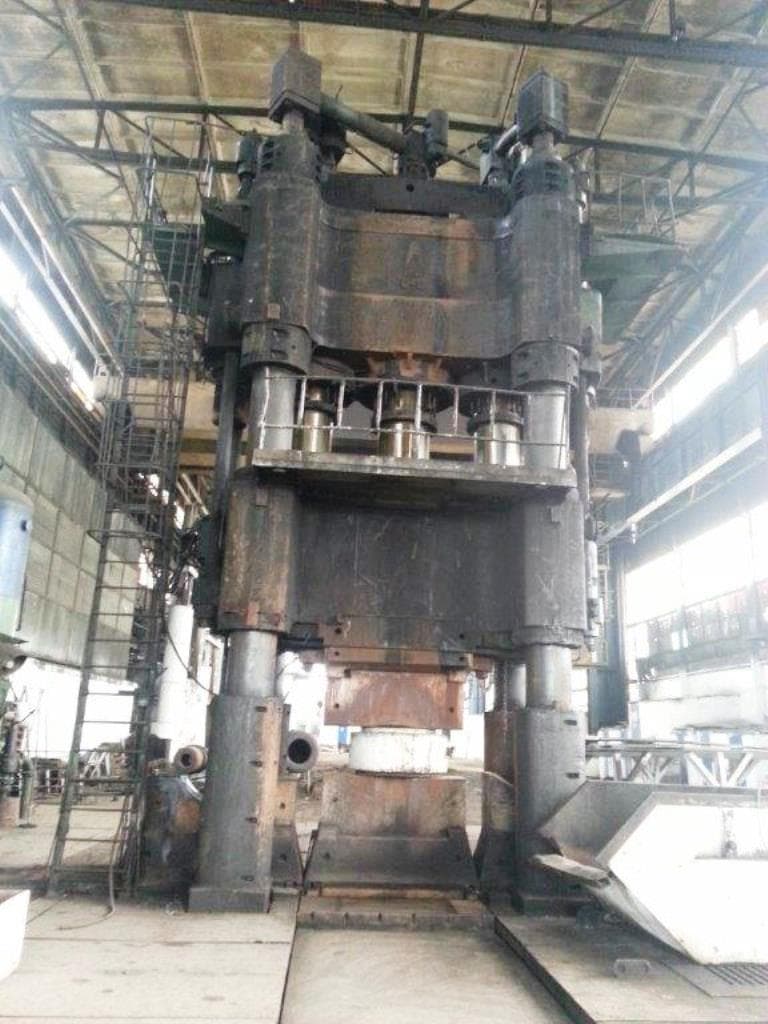

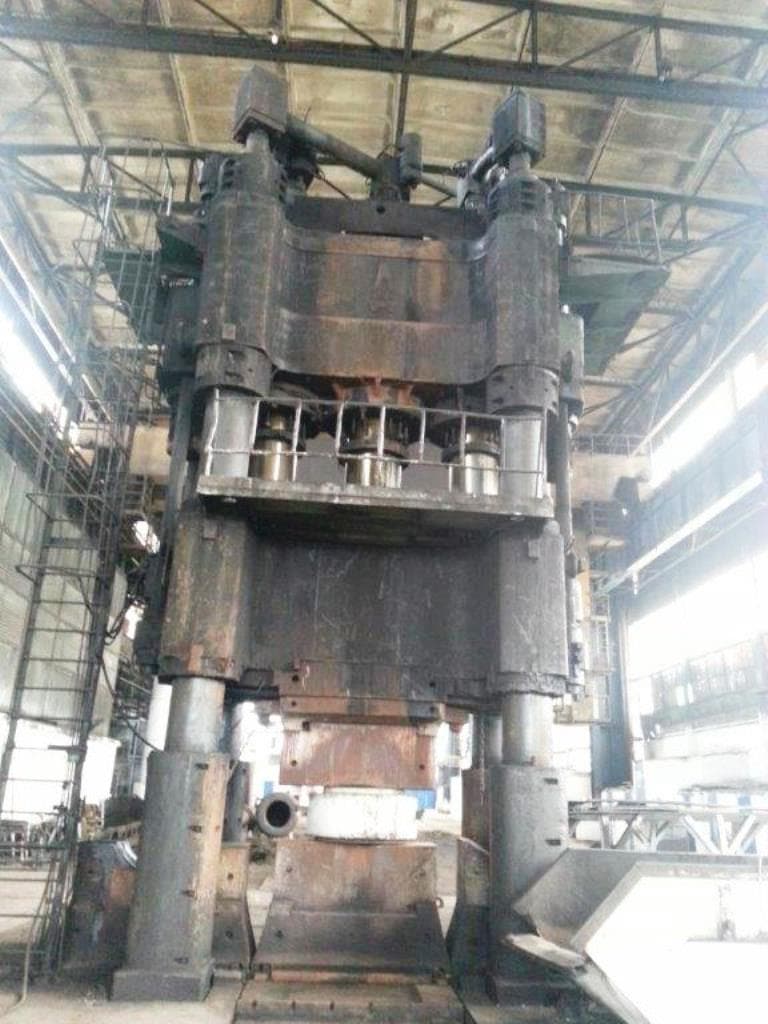

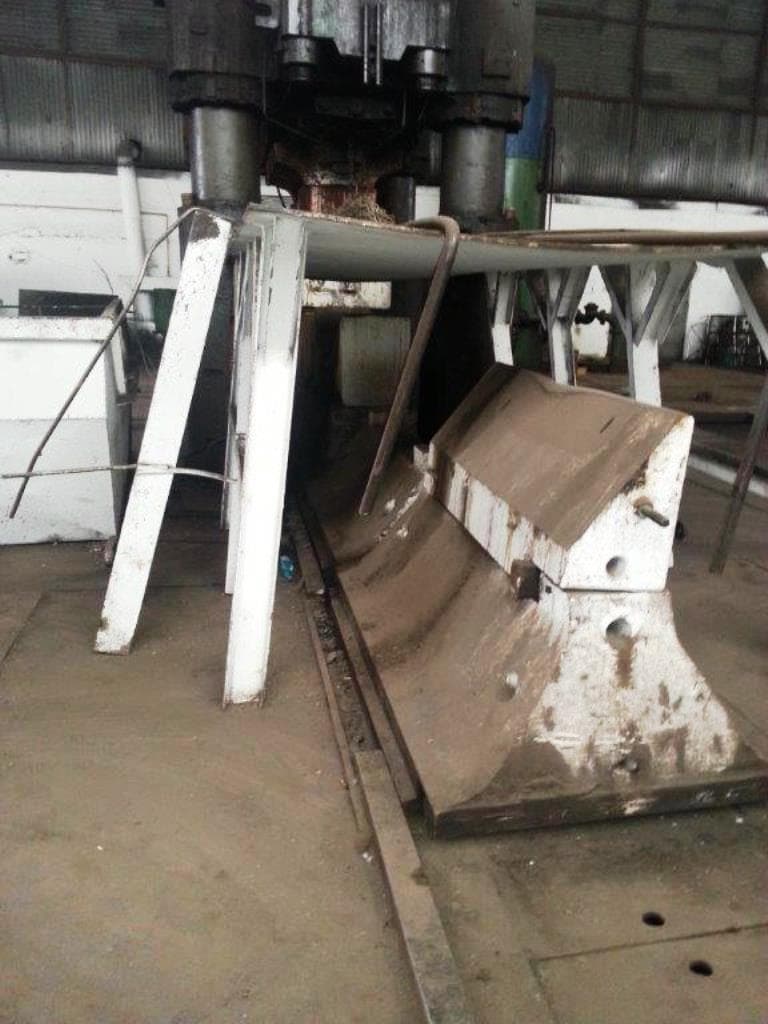

自由鍛造プレス Dnepropress PA1345 - 3200 トン
仕様 (EN) - 自由鍛造プレス Dnepropress PA1345 - 3200 トン (ID: 75733)
| Type | Open die forging press |
| Manufacturer | Dnepropress |
| Model | PA1345 |
| Year of manuafacturing | 1975 |
| Nominal power | 3200 ton |
| Number of working strokes per minute | 10 |
| Number of finishinf strokes per minute | 80-90 |
| Maximum skid stroke | 2000 mm |
| Distance between table and skid (in upper position) | 4000 mm |
| Distance between columns | |
| Front | 3000 mm |
| Side | 1200 mm |
| Nominal travel of the table | 5000 mm |
| Table dimensions | 6000 x 2400 mm |
| Extractor travel | |
| Total | 1300 mm |
| Below table | 590 mm |
| Working liquid pressure from pump installation | 320 kgf/cm2 |
| Dimensions | |
| Left to right | 11800 mm |
| Front to back | 24800 mm |
| Height | |
| With extractor | 16840 mm |
| Without extractor | 14160 mm |
| Weight | |
| Of the press, aprox. | 465000 kg |
| Of the complete installation, aprox. | 565000 kg |
