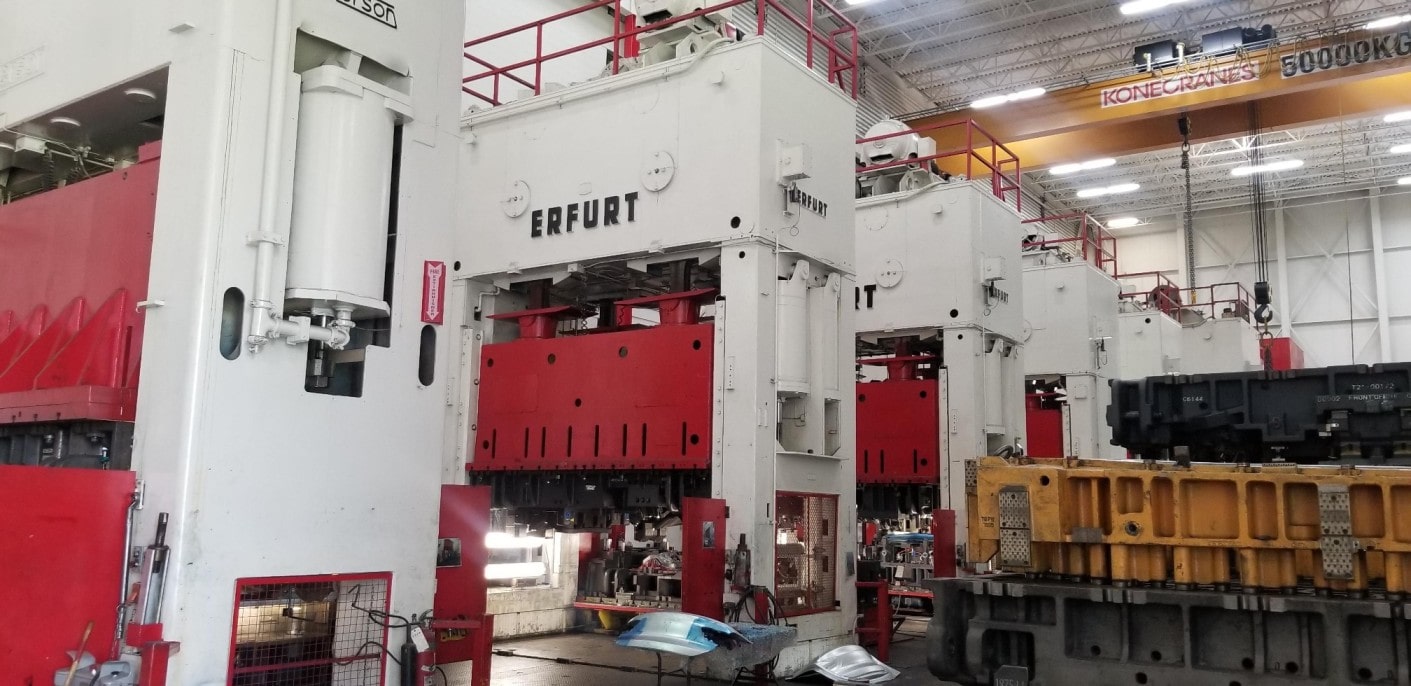

プレス機 Erfurt PKZV I 800 FS - 800 トン
仕様 (EN) - プレス機 Erfurt PKZV I 800 FS - 800 トン (ID: 75835)
| Type | Stamping press |
| Manufacturer | Erfurt |
| Model | PKZV I 800 FS |
| Max. force of slide | 800 tons |
| Stroke of slide | 500 mm |
| Idle stroke rate per 1 min | 14 |
| Adjustability of slide | 500 mm |
| Max. daylight between bolster and slide (SDAU) | 1200 mm |
| Width between columns | 4,000 mm |
| Slide area (WxD) | 4000 x 2500 mm |
| Bed area (WxD) | 4000 x 2500 mm |
| Opening in bed (WxD) | 3520 x 1520 mm |
| Moving table height | 630 mm |
| Main motor power | 90 kW |
