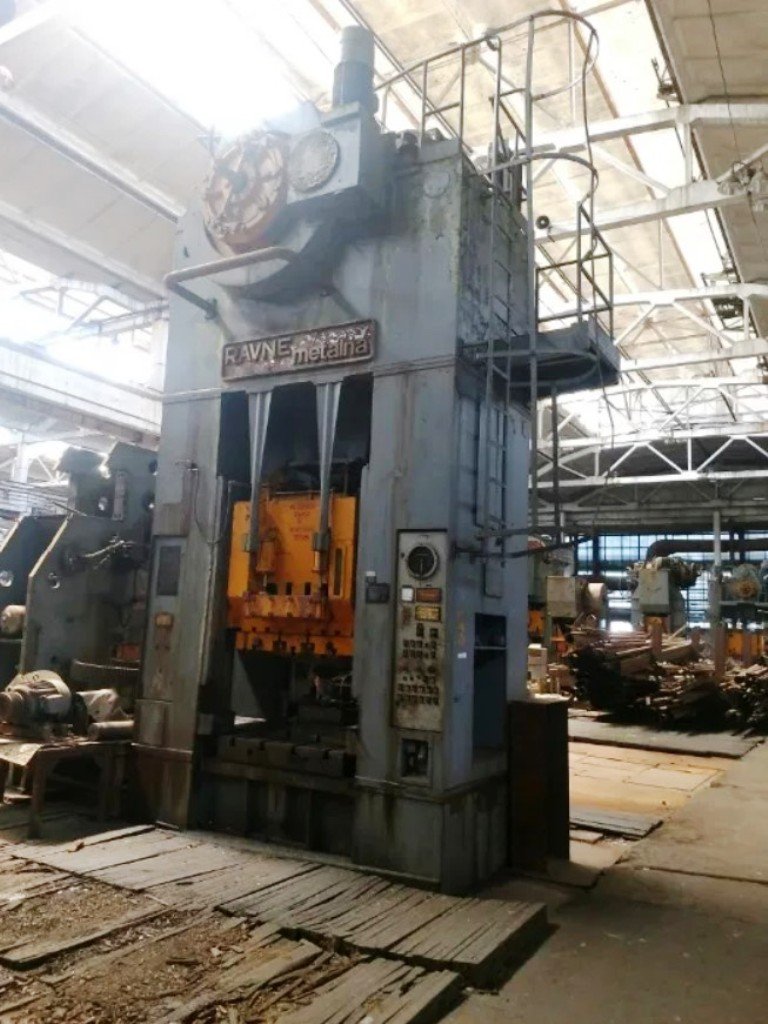

プレス機 Ravne DEE 630 - 630 トン
仕様 (EN) - プレス機 Ravne DEE 630 - 630 トン (ID: 75612)
| Type | Stamping press |
| Manufacturer | Ravne |
| Model | DEE 630 |
| Capacity | 630 ton |
| Slide stroke | 300 mm |
| Number of strokes per 1 minute | 15 |
| Slider adjustment | 220 mm |
| Bolster plate to ram adjustment stroke | 650 mm |
| Distance between collumns | 1550 mm |
| Slide dimensions | 1000 x 1250 mm |
| Table dimensions | 1100 x 1500 mm |
| Course of knockout on the slider | 100 mm |
| Main motor power | 55 kW |
| Dimensions | |
| Height | 7885 mm |
| Width | 3940 mm |
| Length | 3500 mm |
| Press weight | 63 ton |
