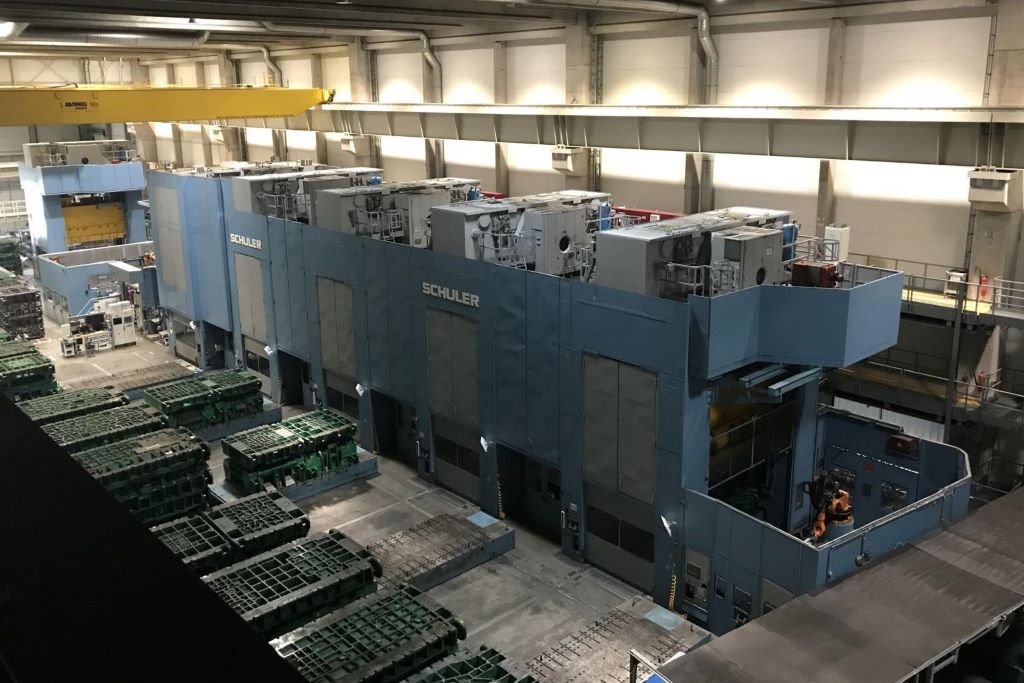

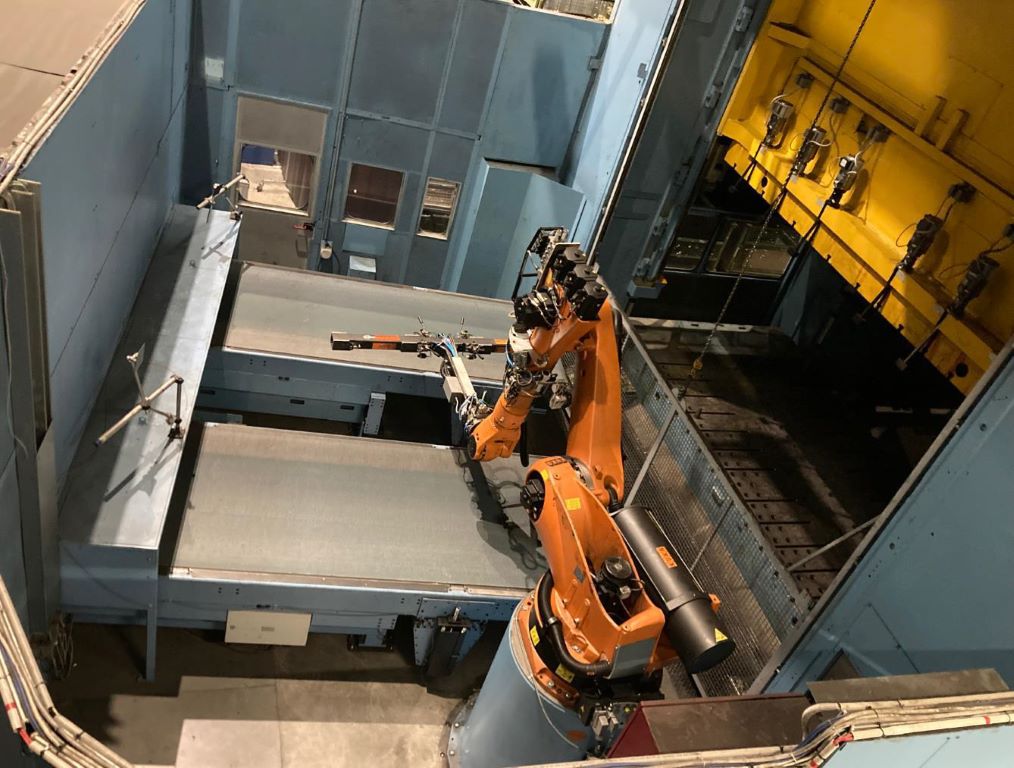

プレスライン Schuler G1 5P/8800 - 8800 トン
仕様 (EN) - プレスライン Schuler G1 5P/8800 - 8800 トン (ID: 76366)
| Type | Stamping line |
| Manufacturer | Schuler |
| Model | G1 5P/8800 |
| Year of manufacture | 1999 |
| Type | Tandem line |
| Press 1 | |
| Make | Erfurt |
| Type | Link Drive |
| Force | 2800 ton |
| SPM | 6-15 |
| Table size | 5000 x 2500 mm |
| Stroke length | 1120 mm |
| Adjustment | 550 mm |
| Presses 2-5 | |
| Make | Schuler |
| Force | 1500 ton |
| SPM | 6-18 |
| Table size | 4500 x 2500 mm |
| Stroke length | 1100 mm |
| Adjustment | 500 mm |
