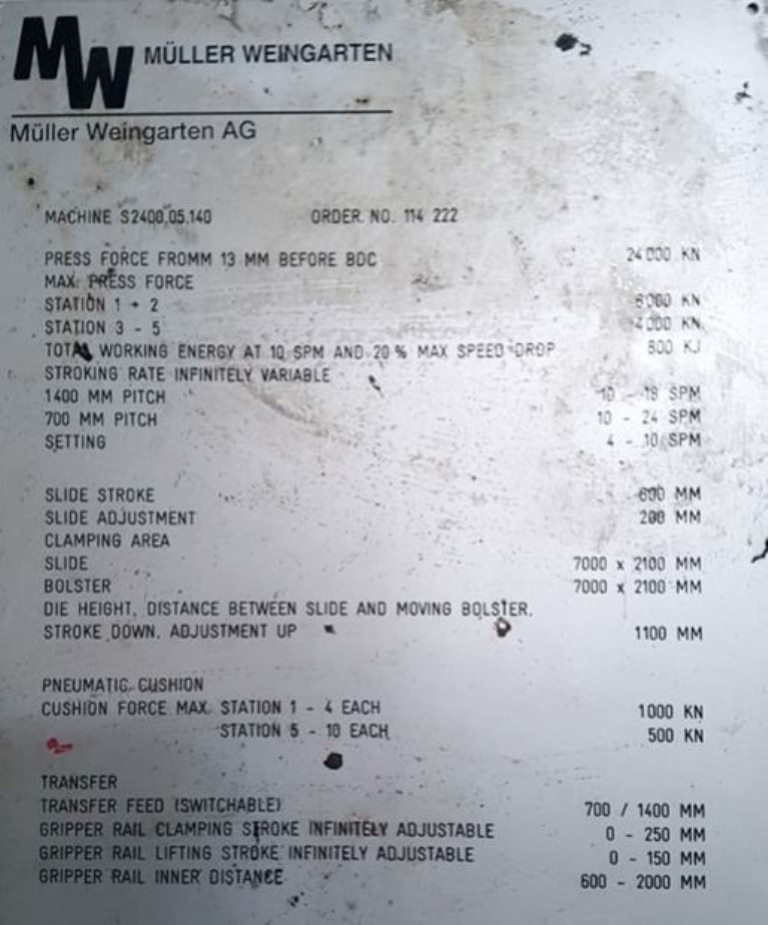

板金プレス Muller Weingarten S2400.05.140 - 2400 トン
仕様 (EN) - 板金プレス Muller Weingarten S2400.05.140 - 2400 トン (ID: 76082)
| Type | Sheet stamping press |
| Manufacturer | Muller Weingarten |
| Model | S2400.05.140 |
| Year of manufacture | 1997 |
| Capacity | 2400 ton |
| Max. press force | |
| Station 1+2 each | 6000 kN |
| Station 3,4,5 each | 4000 kN |
| Stroking rate infinitely variable (SPM) | |
| 1400 mm pitch | 10-18 |
| 700 mm pitch | 10-24 |
| Setting | 4-10 |
| Stroke | 600 mm |
| Table | 7000 x 2100 mm |
| Die height, distance between slide and moving bolster stroke, down, adjustment up | 1100 mm |
| Pneumatic cushion | |
| Cushion force Max station 1-4 each | 1000 kN |
| Station 5-10 each | 500 kN |
| Transfer | |
| Transfer feed (switchable) | 700/1400 mm |
| Gripper rail clamping stroke infinitely adjustable | 0-250 mm |
| Gripper rail lifting stroke infinitely adjustable | 0-150 mm |
| Gripper rail inner distance | 600-2000 mm |
| Slide suspension points | 4 |
| Number of con-rods | 4 |
| Number of moving bolsters | 2 |
| Main motor | 375 kW |
| Cushion stroke | 0-200 mm |
| Cushion size (10ea) | 550 x 1450 mm |
| Cushion pitch | 150 mm |
| Cushion hole (10unit) | 4 x 10 line |
