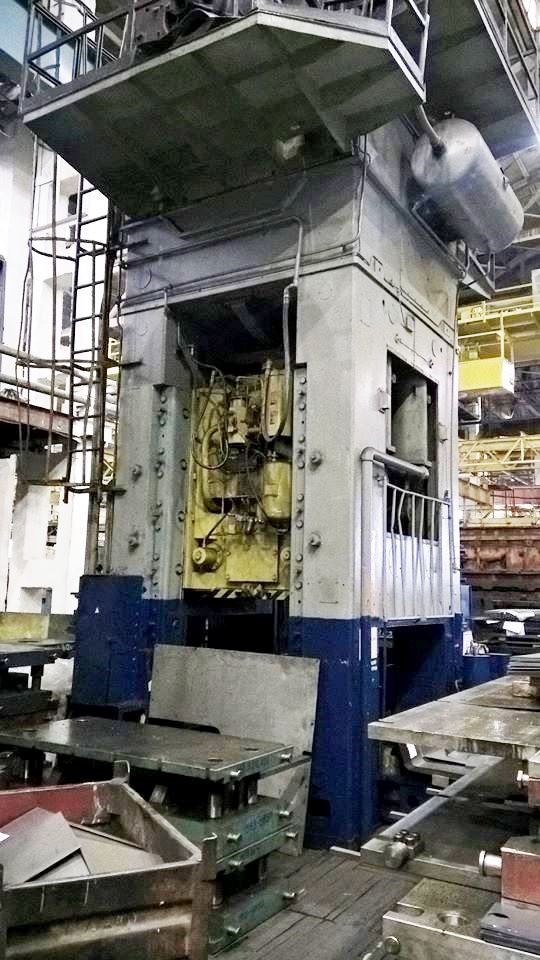

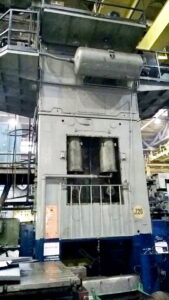

トリミングプレス Erfurt PKZ IV 630 - 630 トン
仕様 (EN) - トリミングプレス Erfurt PKZ IV 630 - 630 トン (ID: S79101)
| Type | Trimming press |
| Manufacturer | Erfurt |
| Model | PKZ IV 630 |
| Max. pressing force | 630 tons |
| Working stroke before lower slide position at max. pressing force | 12,5 mm |
| Max. extract depth of press and extract device | 160 mm |
| Pressing force by using max. extract depth | 220 tons |
| Number of single slide strokes per minute | 18 |
| Slide stroke | 400 mm |
| Slide adjustment | 250 mm |
| Ejector force | 16 tons |
| Distance between columns | 1000 mm |
| Slide dimensions (Width x Depth) | 1000 x 1400 mm |
| Table dimensions (Width x Depth) | 1000 x 1400 mm |
| Opening in the table (Width x Depth) | 850 x 850 mm |
| Main electric motor power | 75 kW |
| Total machine weight | 110 tons |
