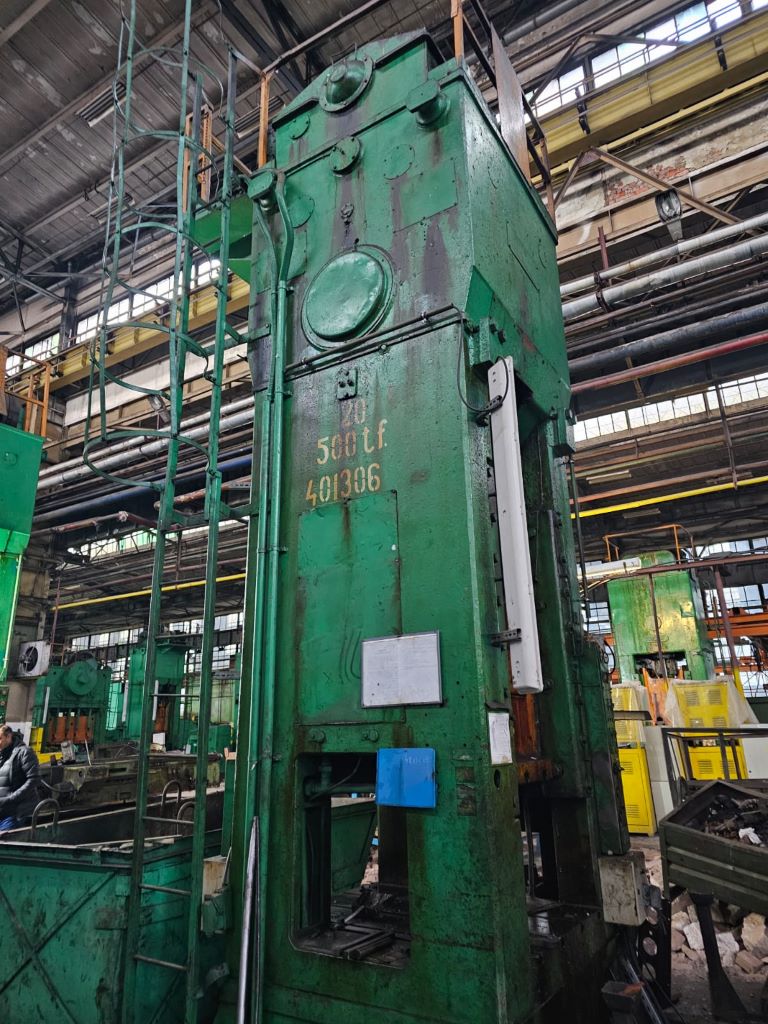

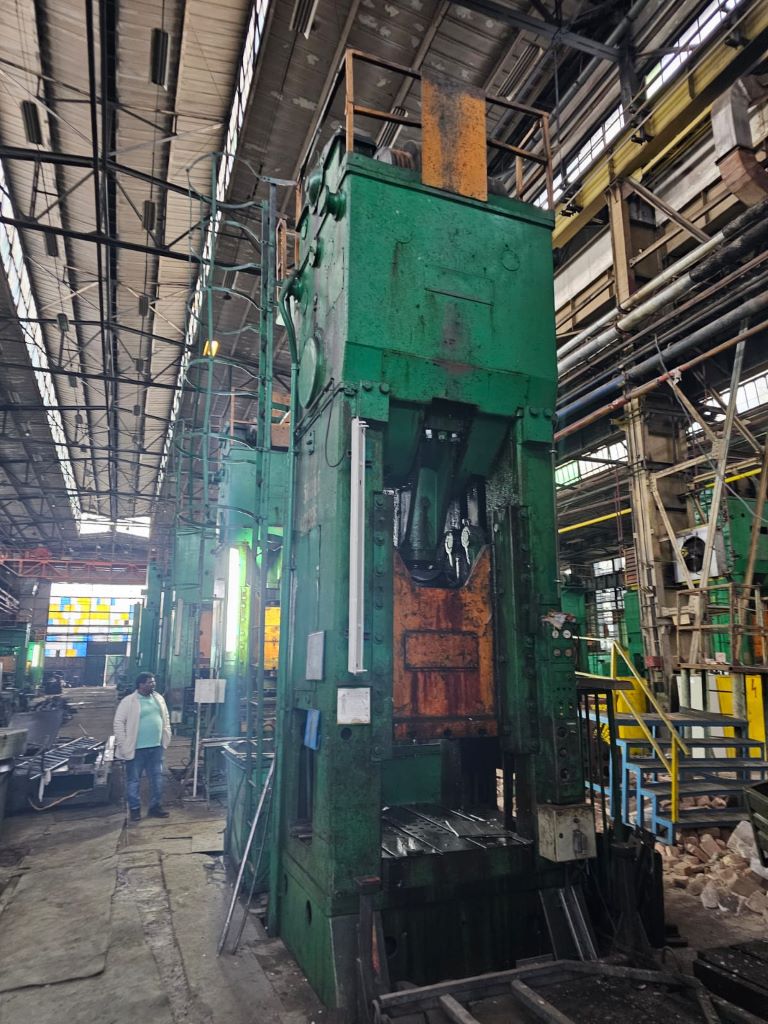

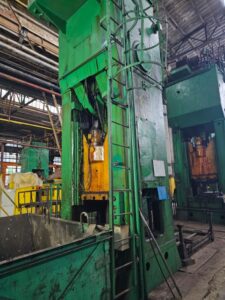

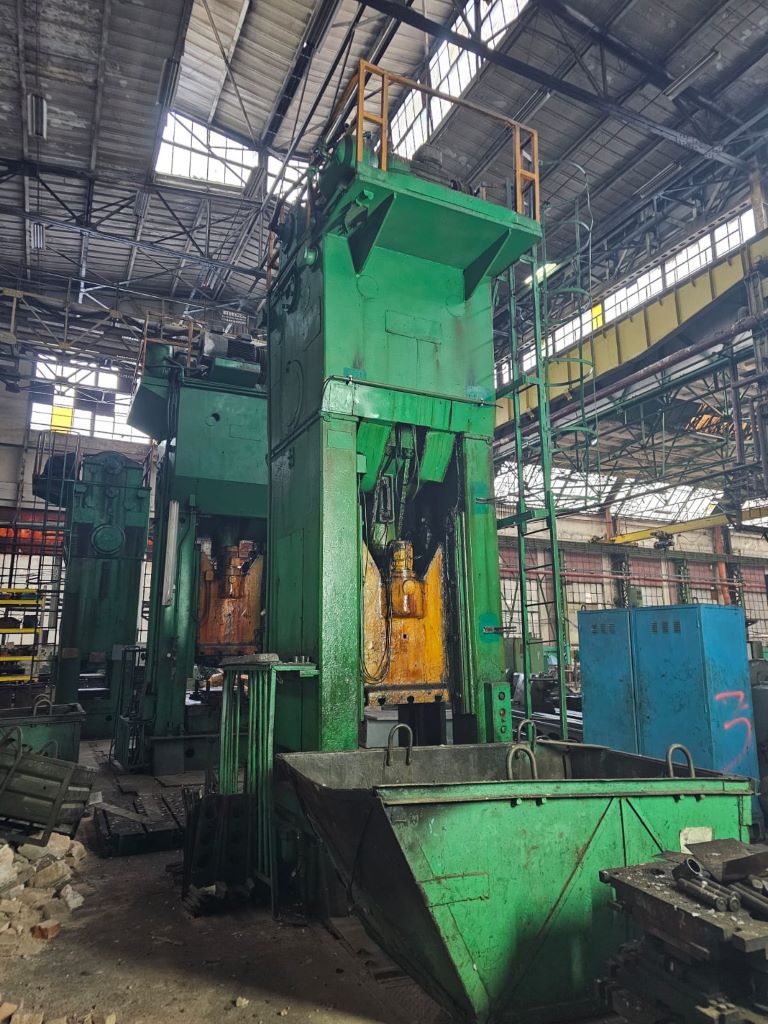

トリミングプレス Erfurt PKZe 500 - 500 トン

Dabrox 掲載 ID: 76374

このオファーに関する詳細情報のお問い合わせ：
- 在庫状況、価格
- 支払い・配送条件
- 特性、状態、写真など

* 必須項目

仕様 (EN) - トリミングプレス Erfurt PKZe 500 - 500 トン (ID: 76374)

TypeTrimming press
ManufacturerErfurt
ModelPKZe 500
Max. slide effort at the distance of 27 mm to the lower dead point5000 kN
Slide effort at the distance of 160 mm to the lower dead point250 kN
Number of single strokes per minute12
Slide stroke400 mm
Slide adjustment220 mm
Ejector stroke180 mm
Thickness of plate with slots for fastening175 mm
Inner height between plate with slots and pusher (stroke down, adjustment up)675 mm
Clearance between columns1000 mm
Table area1000 x 1400 mm
Table opening710 x 710 mm
Pusher area800 x 1120 mm
Table cushion
Max. stroke160 mm
Stroke adjustment160 mm
Max. retention effort800 kN
Max. ejection effort125 kN
Main motor power41 kW — 1320 rpm
Power of pusher motor3,5 kW — 1420 rpm
Number of revs of flywheel shaft630 rpm
Press weight43 tons
