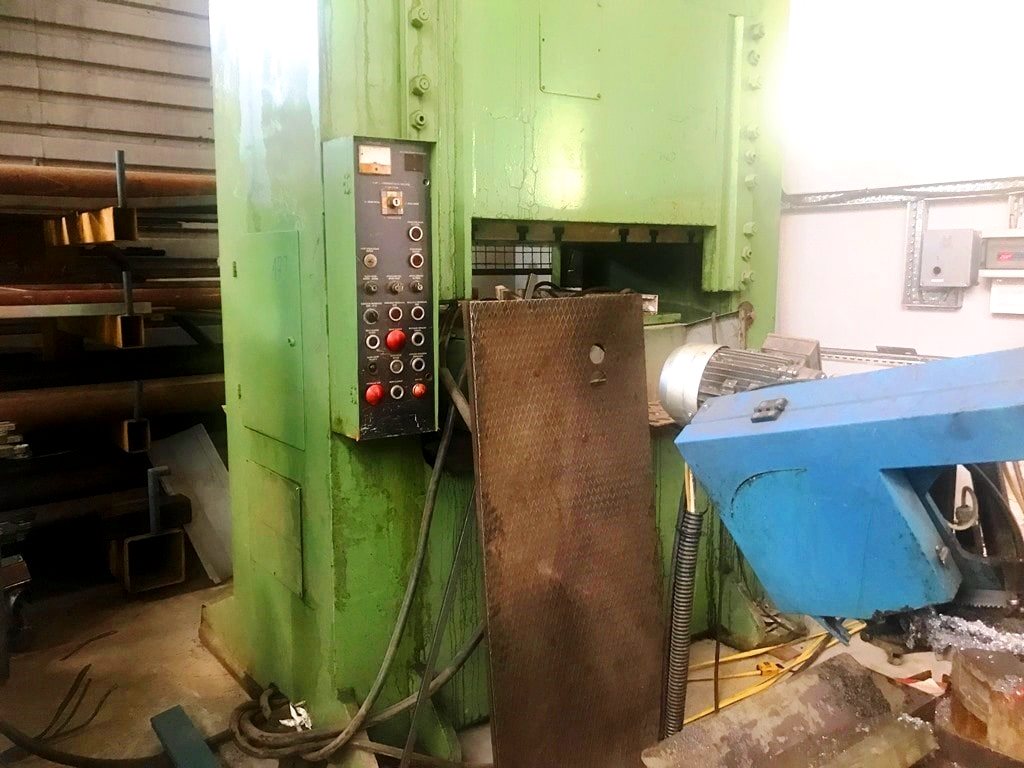

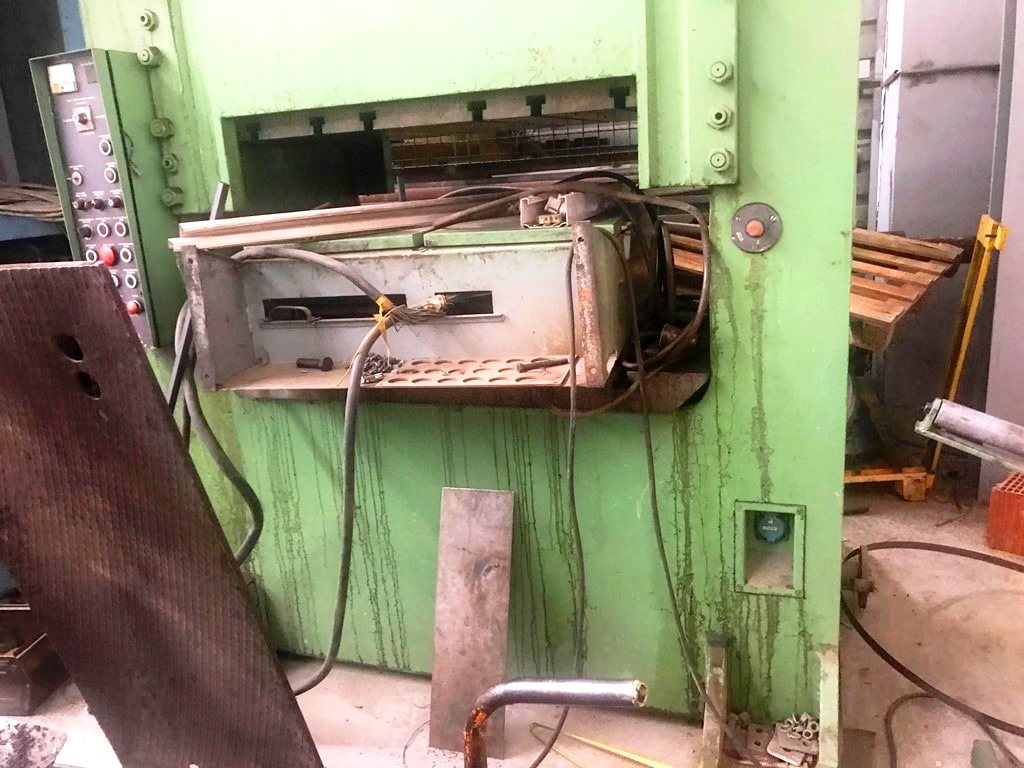

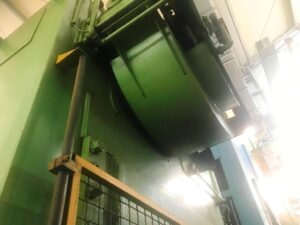

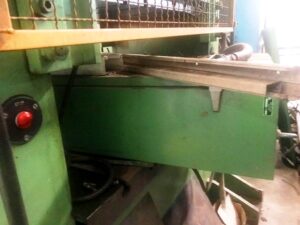

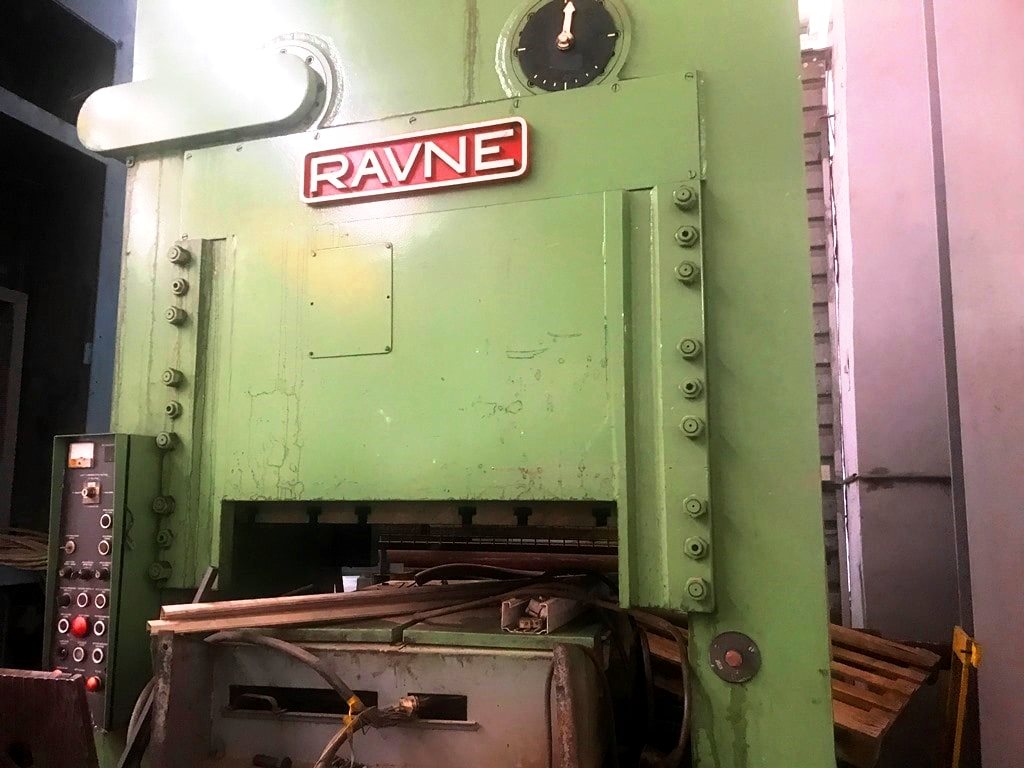

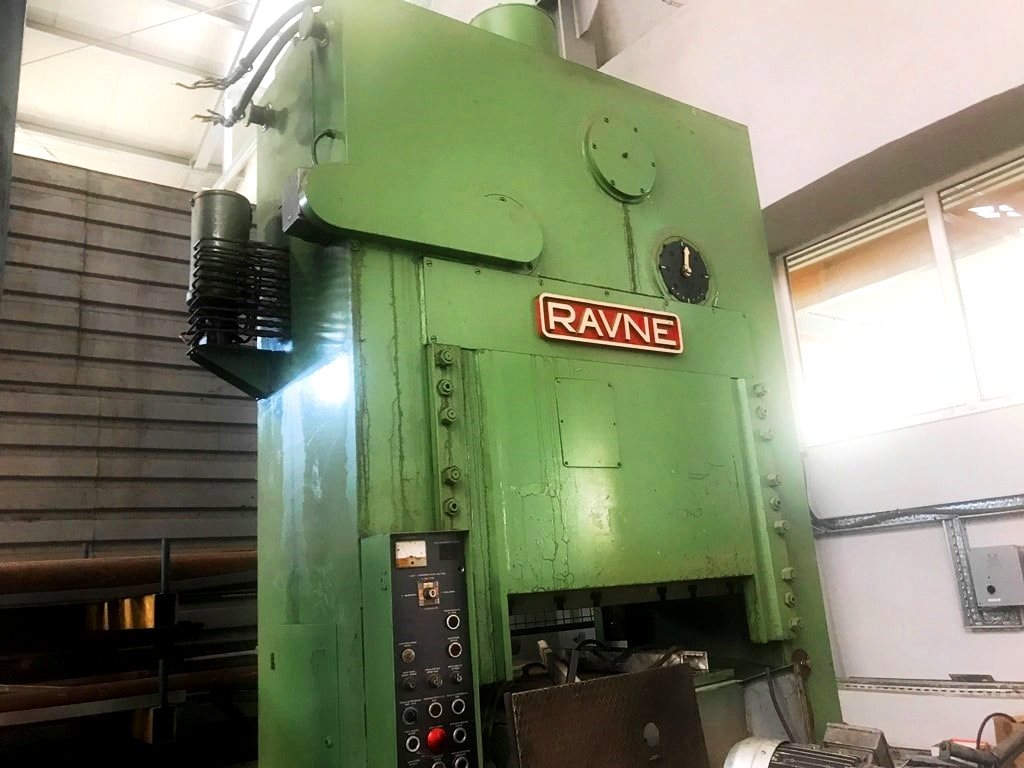

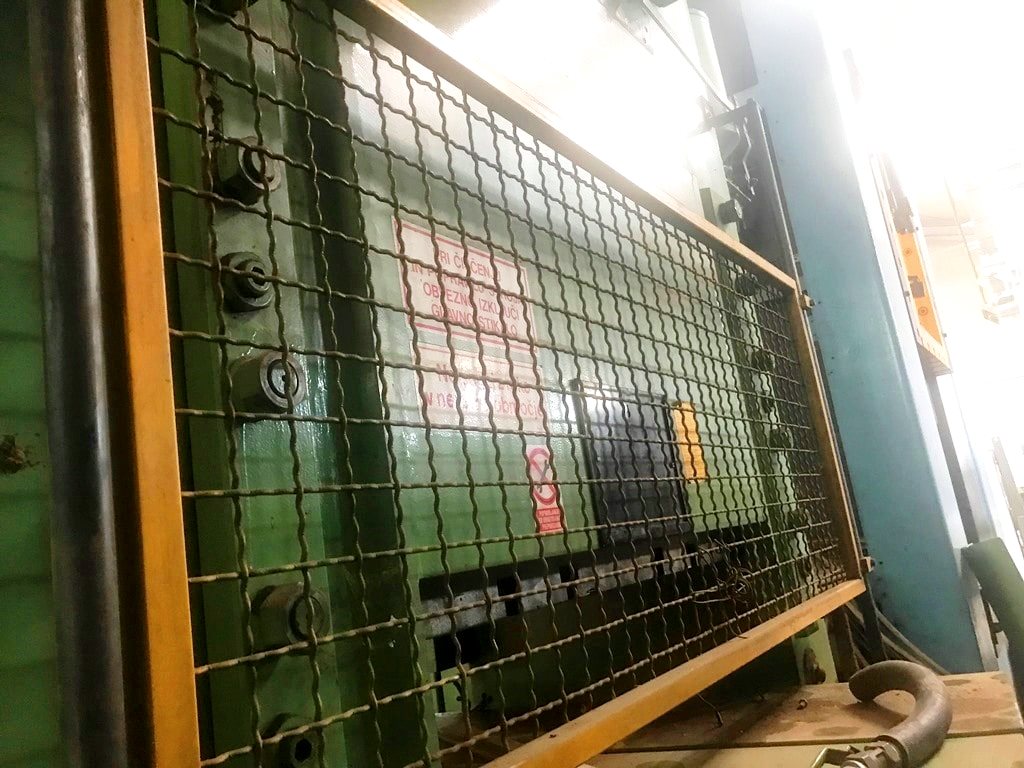

トリミングプレス Ravne KES 250 - 250 トン
仕様 (EN) - トリミングプレス Ravne KES 250 - 250 トン (ID: 75716)
| Type | Trimming press |
| Manufacturer | Ravne |
| Model | KES 250 |
| Force | 250 ton |
| Number of strokes per min. | 57 |
| Distance between posts | 1400 mm |
| Clear distance between table and slide, lower stroke (upper position) | 420 mm |
| Distance between slider and table (groove and adjustment above) | 600 mm |
| Stroke | 180 mm |
| Adjustment | 120 mm |
| Clamping surface (slider) | |
| Width | 1330 mm |
| Length | 850 mm |
| Clamping surface (table) | |
| Width | 1400 mm |
| Length | 950 mm |
| Other information | |
| Clamping plate thickness | 100 mm |
| Main motor power | ~ 30 kW |
| Main engine speed | 1470 mm |
| Motor power for plow control | 1.5 KW |
| Number of engine revolutions per minute | 920 |
| Total weight of the machine | 20335 kg |
| Maximum height of the press from the ground | 4386 mm |
| Height from the floor to the top edge of the table | 700 mm |
