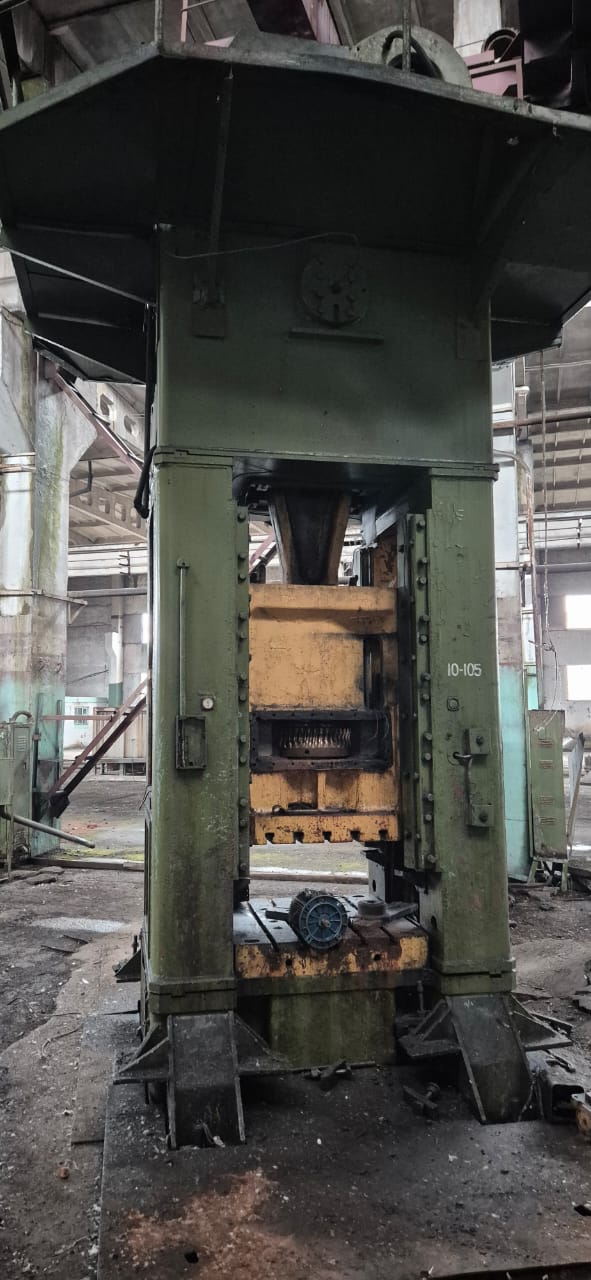

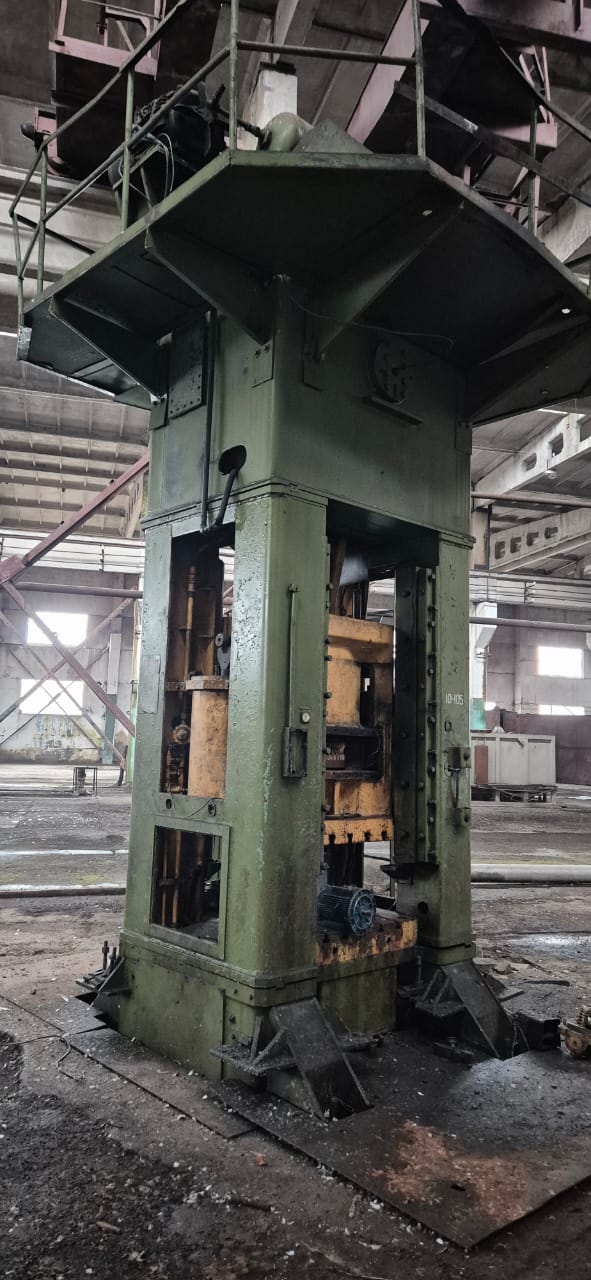

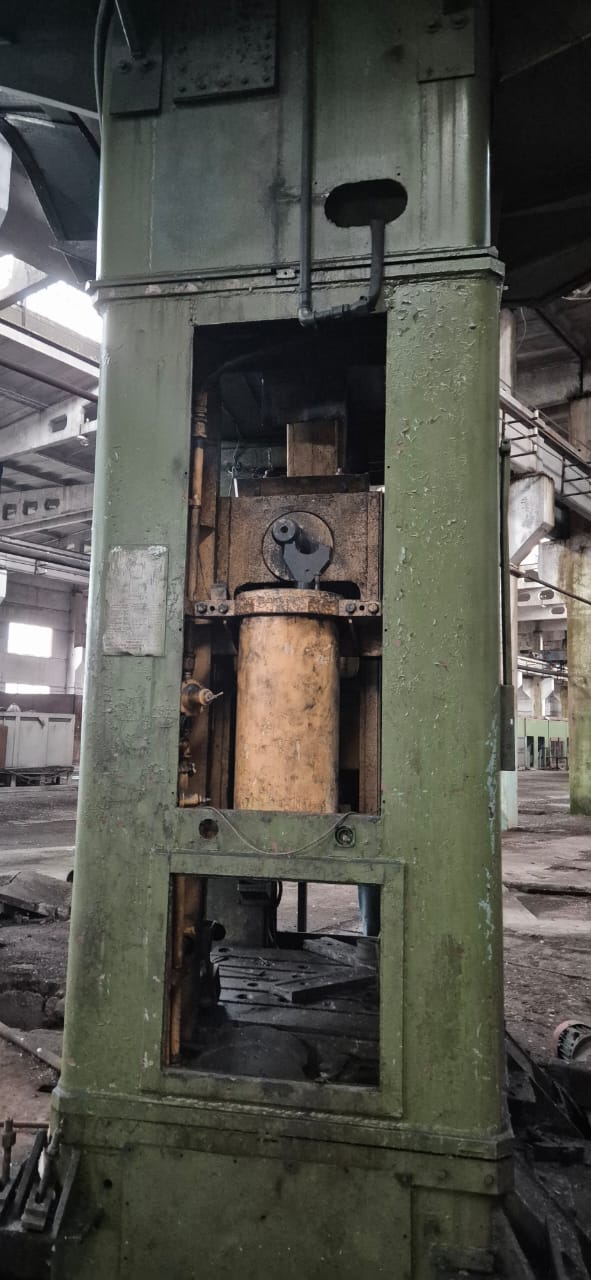

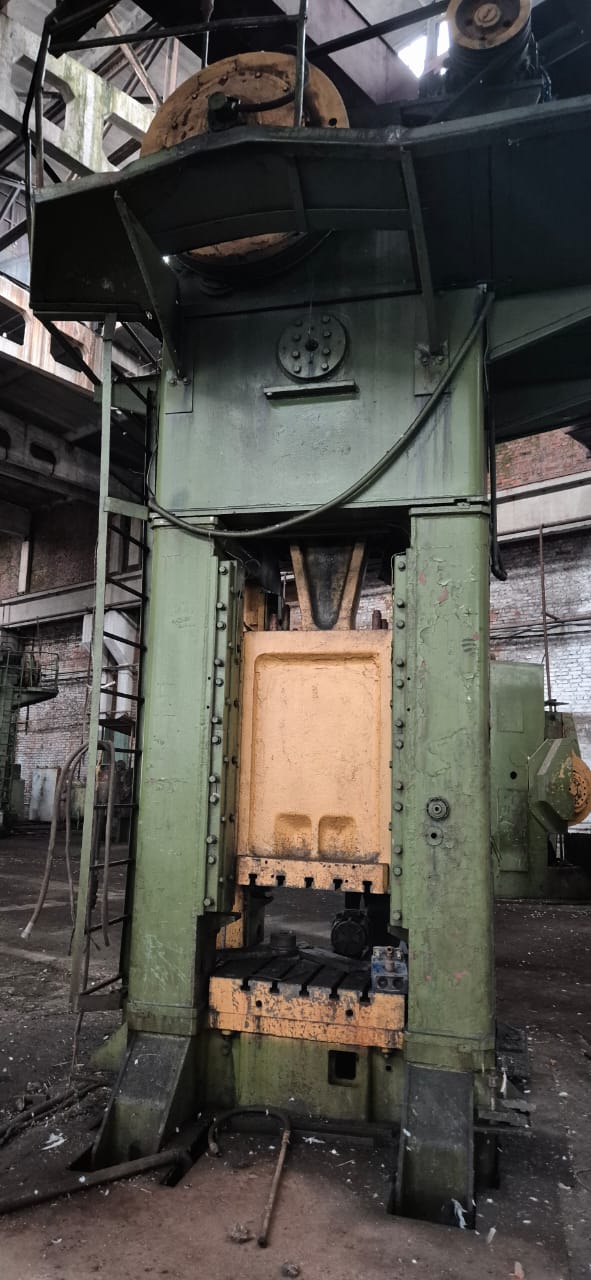

トリミングプレス TMP Voronezh K2536 - 400 トン
仕様 (EN) - トリミングプレス TMP Voronezh K2536 - 400 トン (ID: 76370)
| Type | Trimming press |
| Manufacturer | TMP Voronezh |
| Model | K2536 |
| Maximum force | 400 ton |
| Slider stroke length | 250 mm |
| Number of courses of a slider per minute | 25 |
| Maximum distance between table and slider (in lower position of slider) | 670 mm |
| Table overall dimensions | |
| from front to rear | 1000 mm |
| from left to right | 1000 mm |
| Main electric motor power | 40 kW |
| Press overall dimensions | |
| length | 3410 mm |
| width | 3140 mm |
| height | 5930 mm |
| Press weight | 30600 kg |
