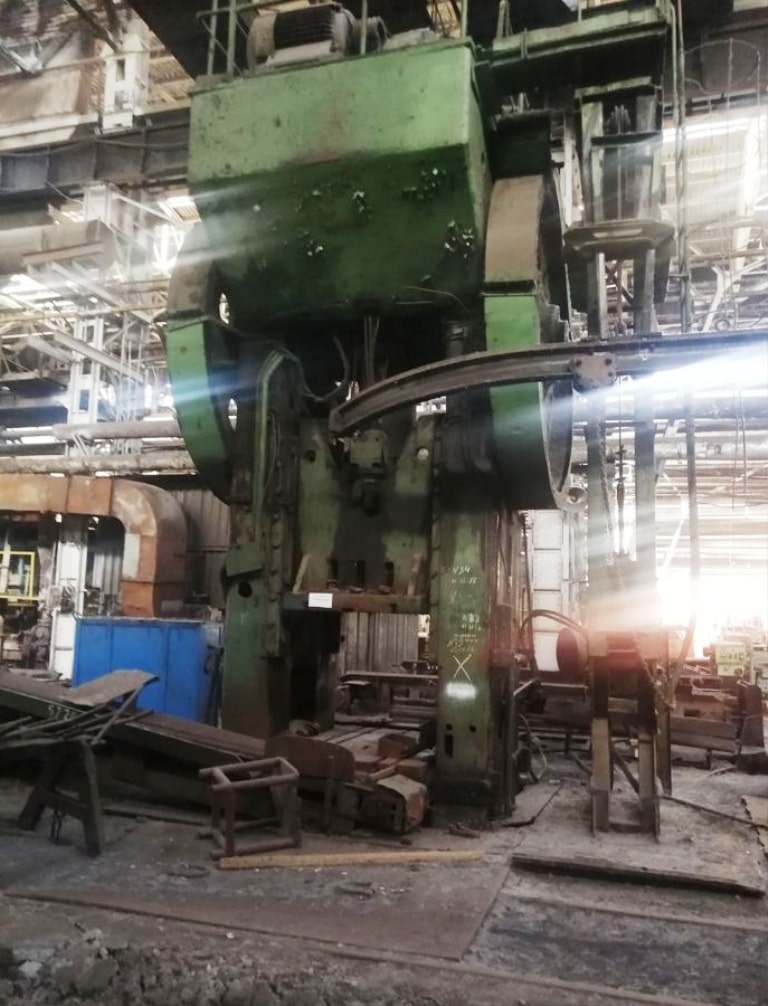

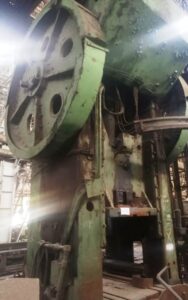

トリミングプレス TMP Voronezh K969C - 1000 トン
仕様 (EN) - トリミングプレス TMP Voronezh K969C - 1000 トン (ID: 75697)
| Type | Trimming press |
| Manufacturer | TMP Voronezh |
| Model | K969C |
| Made in | Russia |
| Nominal force | 1000 ton |
| Slider stroke | 500 mm |
| Number of slider strokes per minute | 10 |
| Greatest distance between the table and the slide | 920 mm |
| Adjustment of the distance between the table and the slide | 200 mm |

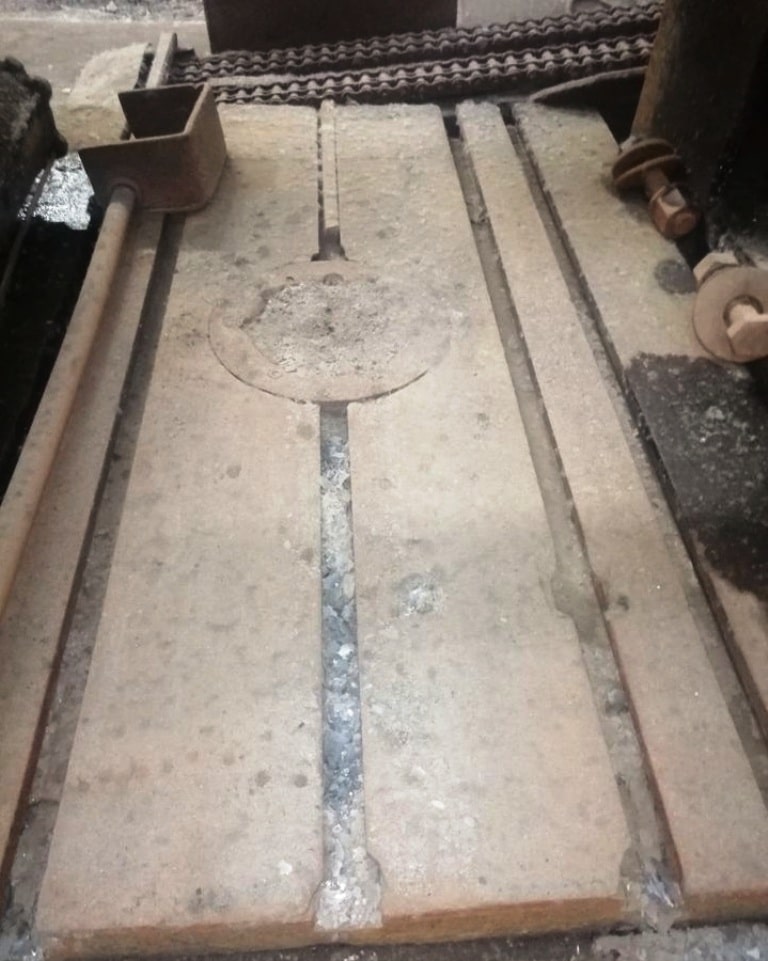

| Table dimensions | 1990 x 1490 mm |
| Dimensions of the hole in the table are | 940 x 940 mm |
| Slider dimensions | 1210 mm |
| Distance between guides | 1280 mm |
| Distance from stop to guides | 940 mm |
| Electric motor power | 76 kW |
| Press dimensions | 3375 х 3525 х 7840 mm |
| Weight | 88 ton |
