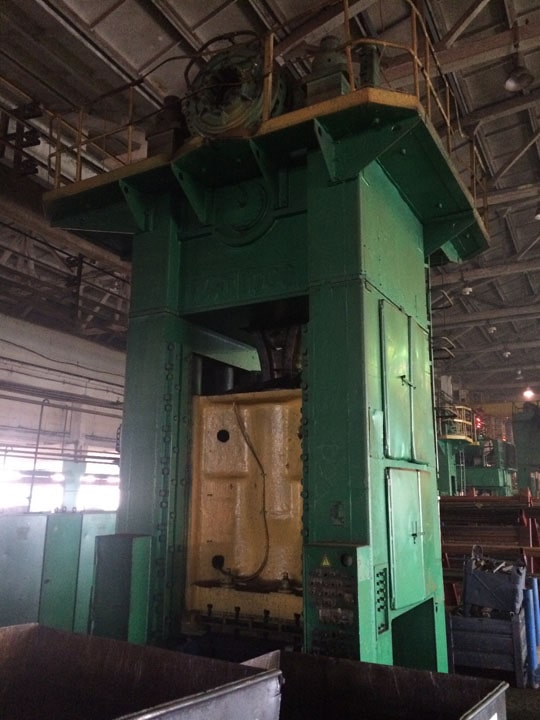

トリミングプレス TMP Voronezh KA9540 - 1000 トン

Dabrox 掲載 ID: S84059

このオファーに関する詳細情報のお問い合わせ：
- 在庫状況、価格
- 支払い・配送条件
- 特性、状態、写真など

* 必須項目

仕様 (EN) - トリミングプレス TMP Voronezh KA9540 - 1000 トン (ID: S84059)

TypeTrimming press
ManufacturerTMP Voronezh
ModelKA9540
Nominal force1000 tons
Not reaching of lower dead point by the slide8 mm
Slide stroke500 mm
Number of continuous strokes per minute20
Max. number of single strokes per minute15
Closed height680 mm
Adjustment of closed height200 mm
Slide dimensions
Left-to-right1250 mm
Front-to-back1250 mm
Bolster plate dimensions
Left-to-right1250 mm
Front-to-back1250 mm
Main drive electric motor power75 kW
Overall dimensions
Left-to-right4310 ± 40 mm
Front-to-back3820 ± 40 mm
Height above floor level6980 ± 60 mm
