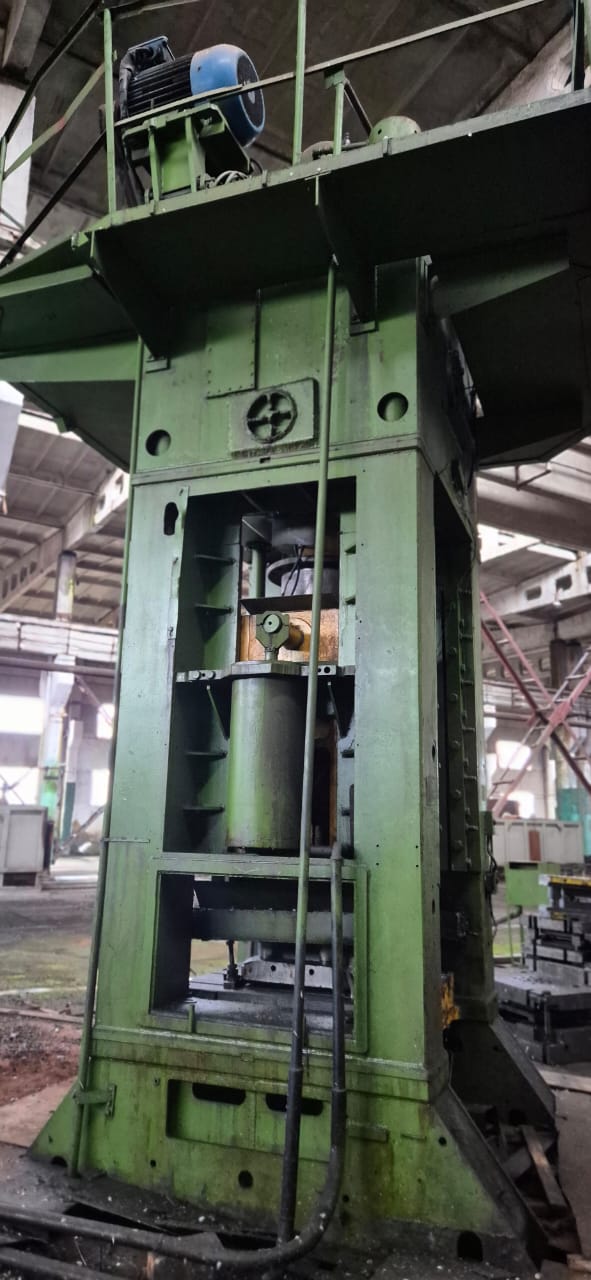

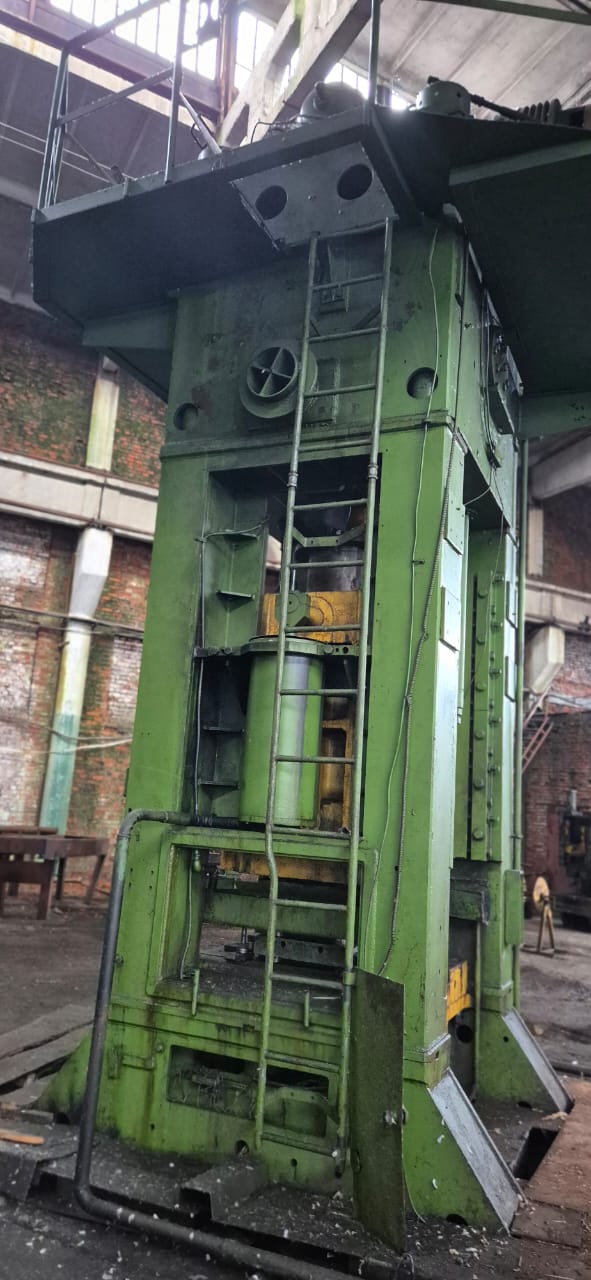

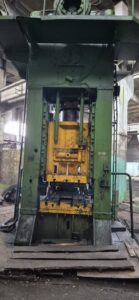

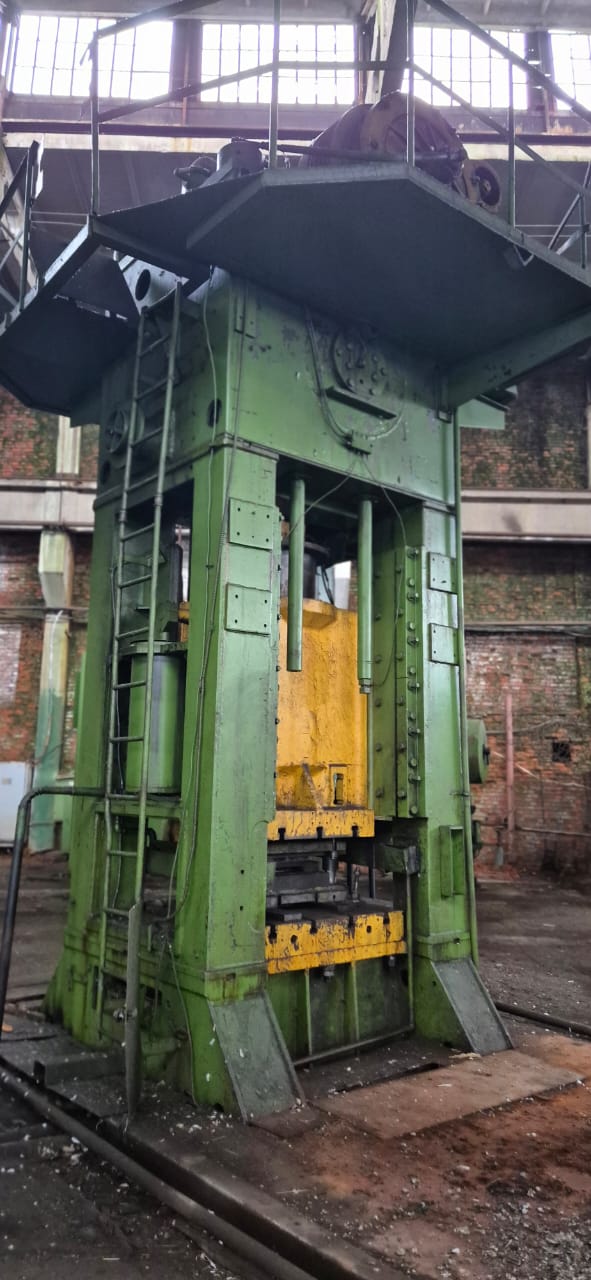

トリミングプレス TMP Voronezh KB9538 - 630 トン
仕様 (EN) - トリミングプレス TMP Voronezh KB9538 - 630 トン (ID: 76369)
| Type | Trimming press |
| Manufacturer | TMP Voronezh |
| Model | KB9538 |
| Capacity | 630 ton |
| Stroke | 400 mm |
| SPM | 30 |
| Bolster plate-to-ram adjustable stroke | 180 mm |
| Max. distance plate-to-ram (in lower position of slider) | 750 mm |
| Table size | 1250 x 1250 mm |
| Main motor power | 55 kW |
| Dimensions L x W x H | 3650 x 3680 x 6370 mm |
| Press weight | 57.5 ton |
