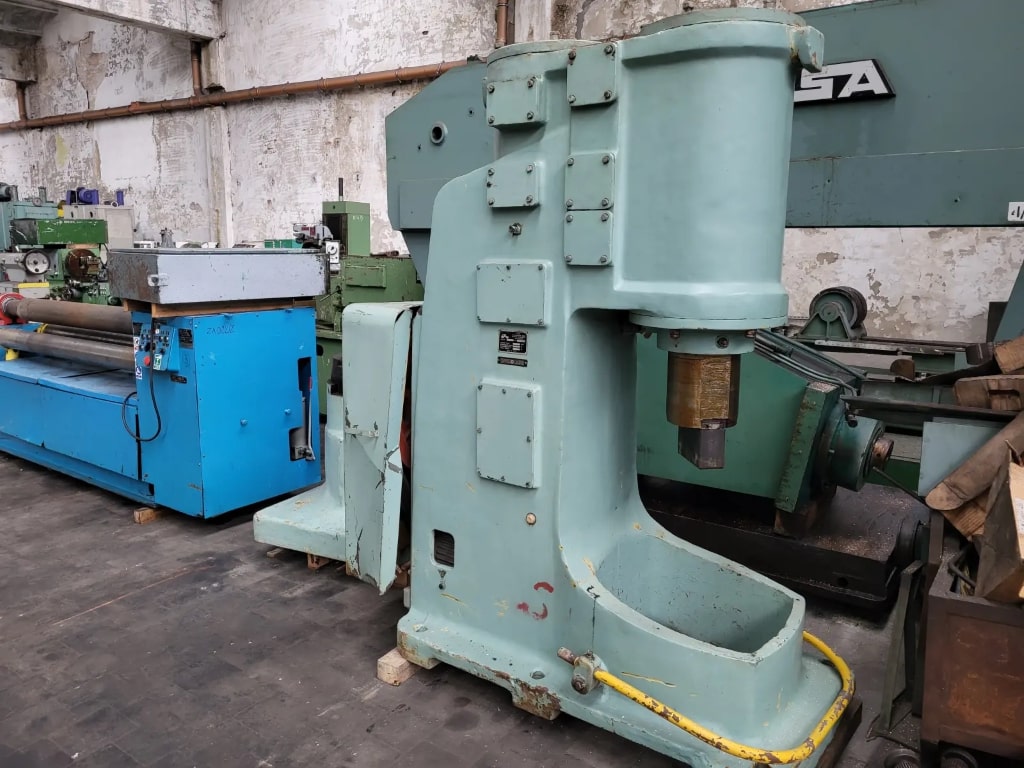

鍛造ハンマー Astrakhan MA4132 - 160 トン
仕様 (EN) -
鍛造ハンマー Astrakhan MA4132 - 160 トン (ID: S89302)
| Type | Forging hammer |
| Manufacturer | Astrakhan |
| Model | MA4132 |
| Weight of the falling parts | 160 kg |
| Number of strokes per min | 196 |
| Effective kinetic energy of falling part by stroke | 250 kg/m |
| Distance from ram axis-to-frame | 350 mm |
| Anvil dimensions | |
| — Length | 190 mm |
| — Width | 75 mm |
| — Anvil height above the floor | 800 mm |
| Diameter of working cylinder | 315 mm |
| Diameter of compressor cylinder | 330 mm |
| Stroke run | 390 mm |
| Optimal stamping section of work-piece | |
| — Square | 70 mm |
| — Rounded | 80 mm |
| Dimensions (L x W x H) | 930 x 1860 x 2160 mm |
| Weight of the hammer with an anvil-block | 5290 kg |
