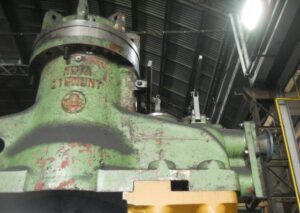

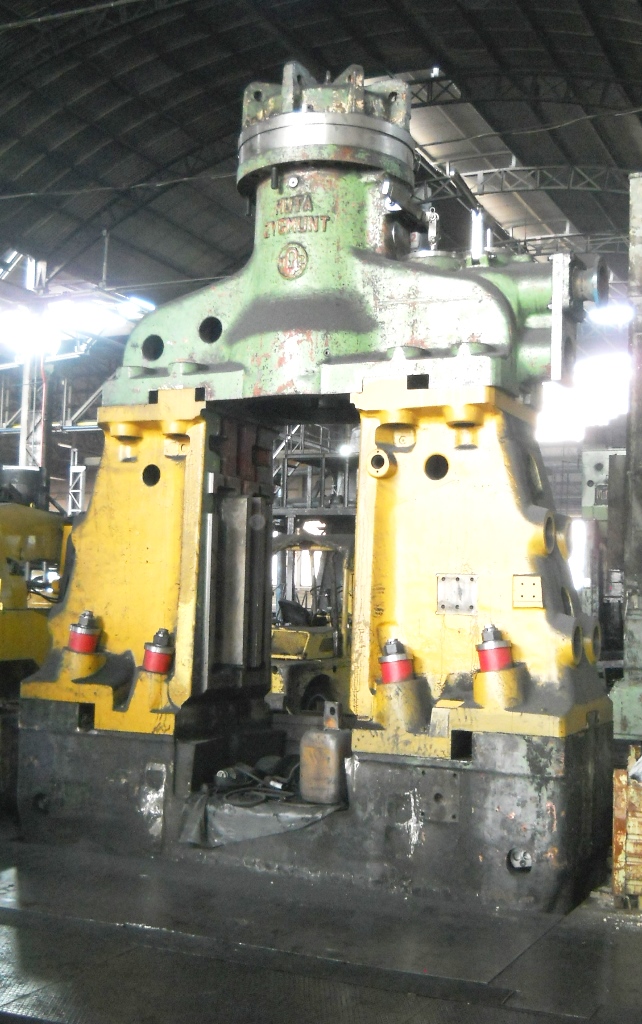

鍛造ハンマー Huta Zygmunt MPM 16000 B - 17500 kgm
仕様 (EN) -
鍛造ハンマー Huta Zygmunt MPM 16000 B - 17500 kgm (ID: S79347)
| Type | Forging hammer |
| Manufacturer | Huta Zygmunt |
| Model | MPM 16000 B |
| Capacity | 17500 kgm |
| Ram Stroke | 1,000 mm |
| Ram L-to-R | 900 mm |
| Ram F-to-B | 1,250 mm |
| Anvil L-to-R | 4,080 mm |
| Anvil F-to-B | 2,400 mm |
| Between the Guides | 850 mm |
| Max Blows per Minute | 80 |
| Nominal Weight of Ram | 6,300 kgs |
| Weight of Lower Anvil | 120,000 kgs |
| Lower Anvil Height | 2,400 mm |
| Hammer Base Height | 2,400 mm |
| Floor Space L-to-R | 4,080 mm |
| Floor Space F-to-B | 2,400 mm |
| Hammer Height above the Floor | 5,000 mm |
| Total Hammer weight | 168,000 kgs |
