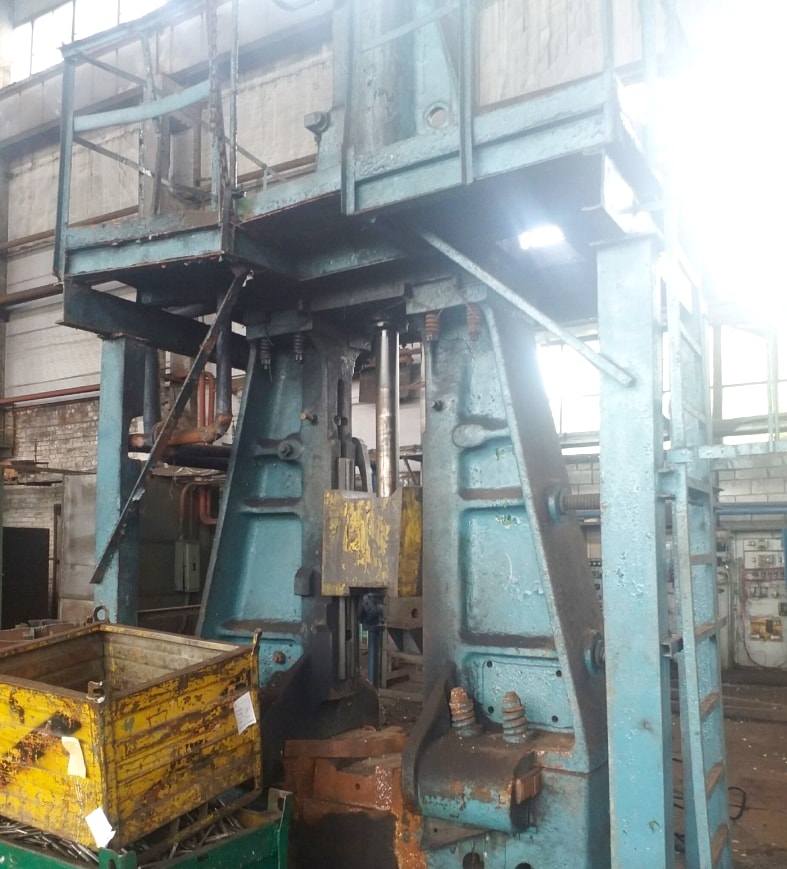

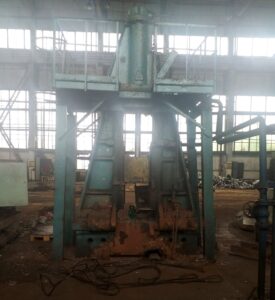

鍛造ハンマー VoronezhPress M211 - 1 トン
仕様 (EN) -
鍛造ハンマー VoronezhPress M211 - 1 トン (ID: 75622)
| Type | Forging hammer |
| Manufacturer | VoronezhPress |
| Model | M211 |
| Capacity | 1 ton |
| Max travel of ram | 1200 mm |
| Distance between column | 560 mm |
| Distance between guides | 500 mm |
| Min. height of die upper | 110 mm |
| Lower | 110 mm |
| Cylinder dia | 280 mm |
| Piston rod dia | 120 mm |
| Min. height of die | 220 mm |
| Saw block height | 660 mm |
| Weight of anvil block | 20.37 ton |
| Hammer weight | 30.7 ton |
| Dimensions | 2380 x 1390 x 5045 mm |
