鍛造ハンマー VoronezhPress M212 - 2 トン
仕様 (EN) -

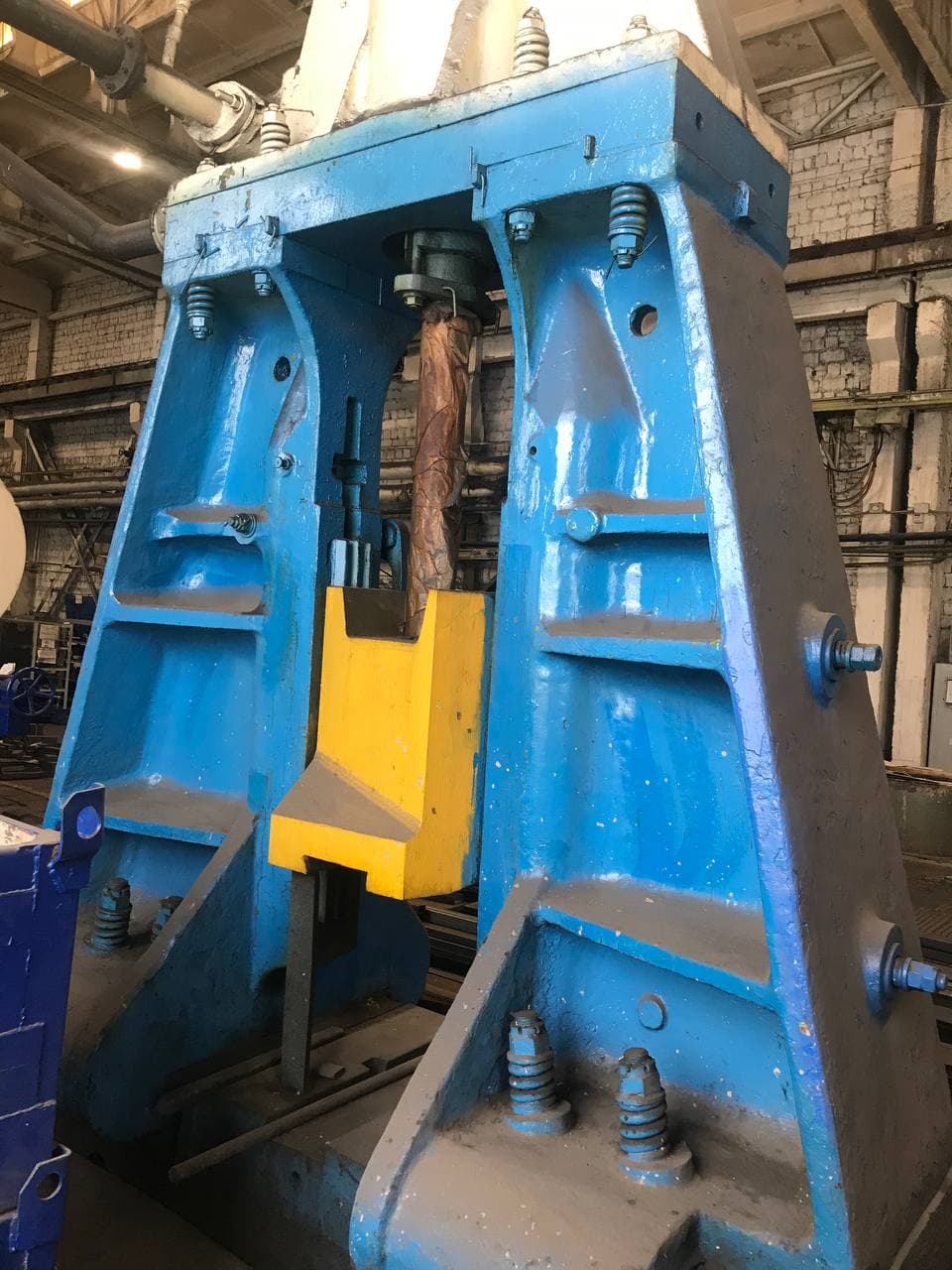

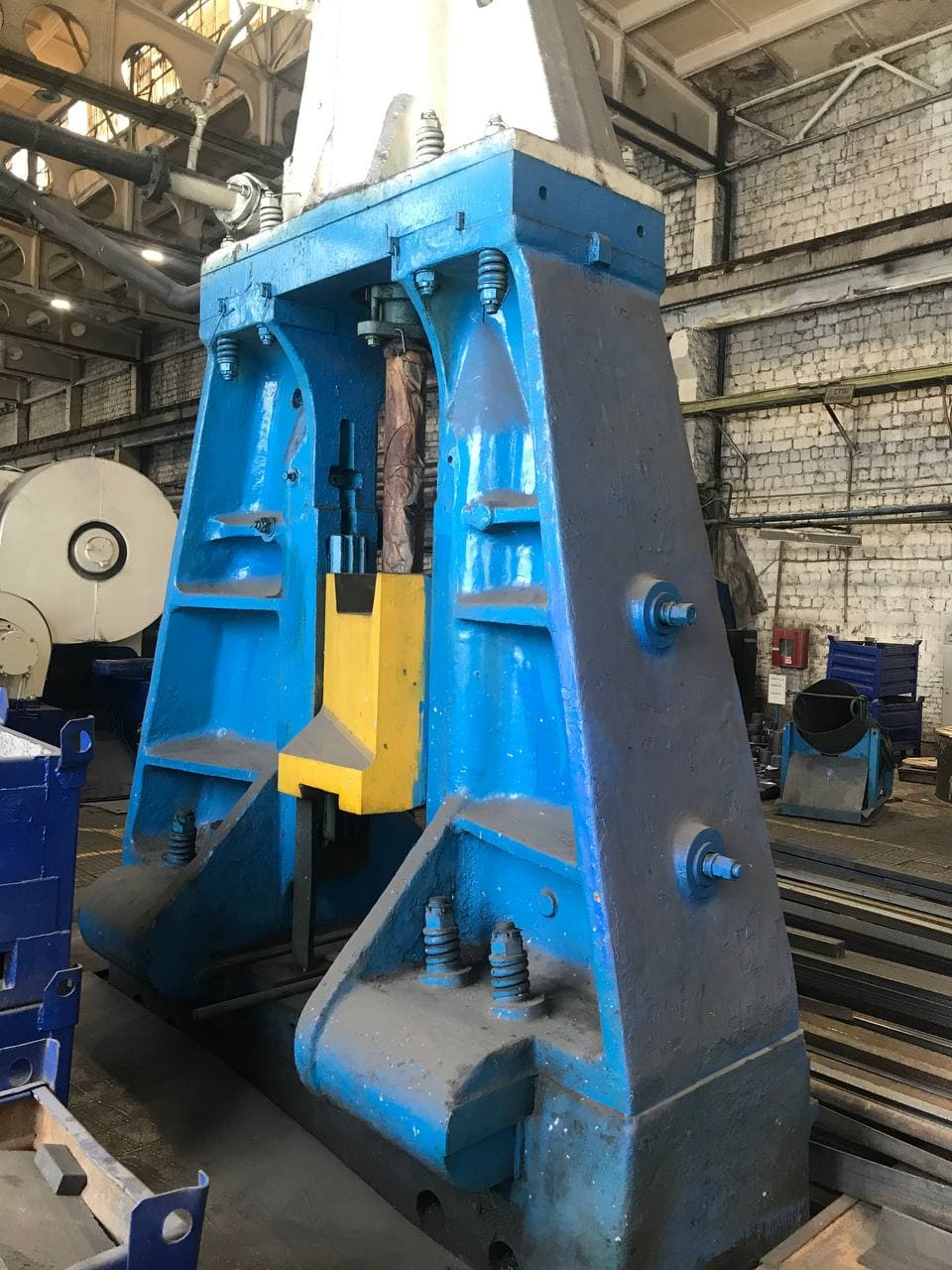

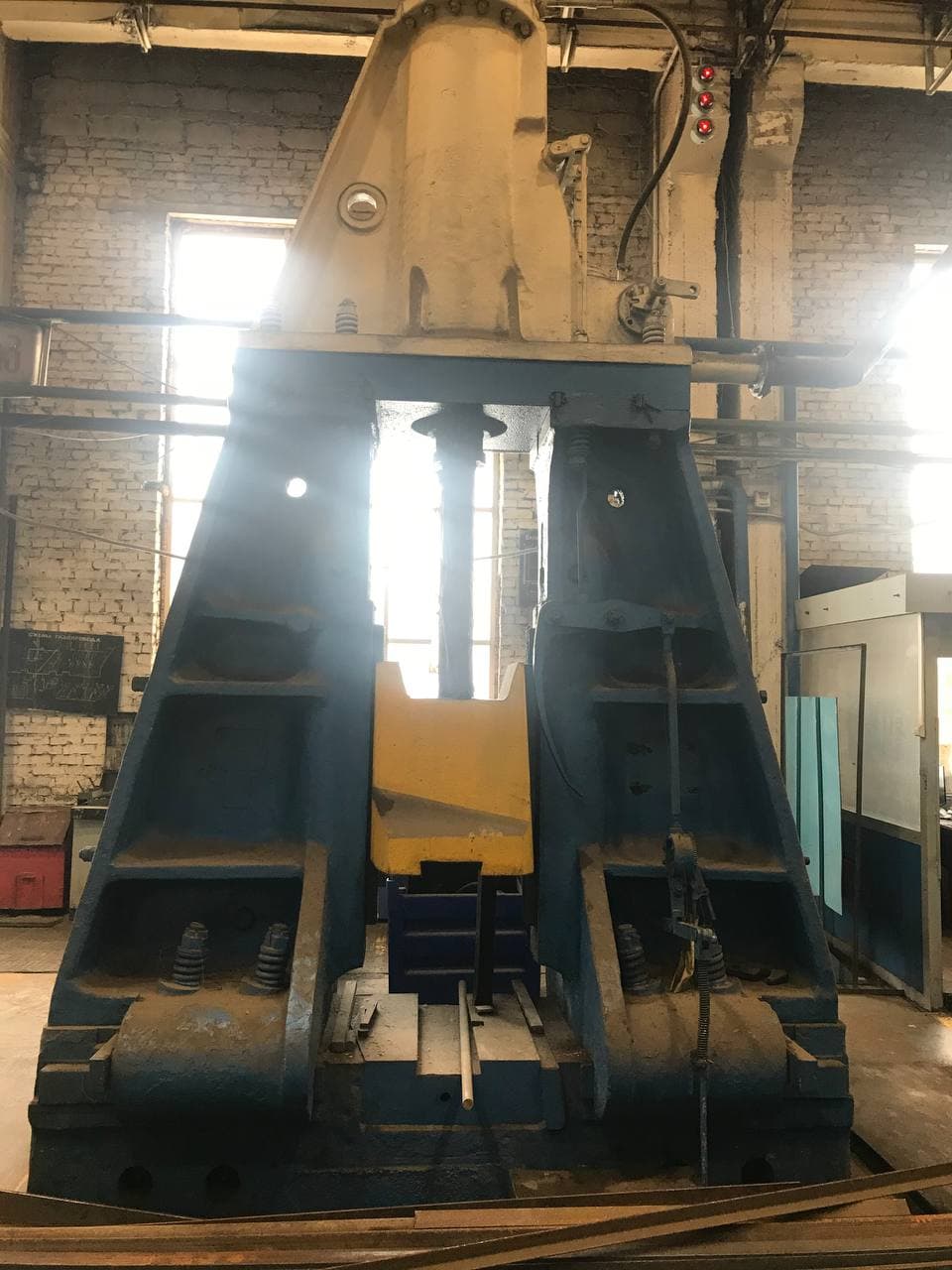

鍛造ハンマー VoronezhPress M212 - 2 トン (ID: 75971)
| Type | Forging hammer |
| Manufacturer | VoronezhPress |
| Model | M212 |
| Nominal mass of drop parts | 2000 kg |
| Impact energy | 50 kJ |
| Max. number of blows per minute | 70 |
| Max. ram stroke | 1200 mm |
| Distance clear between guides | 600 mm |
| Ram front-to-back dimensions | 670 mm |
| Die-holder front-to-back dimensions | 900 mm |
| Bottom die impression-to-floor distance | 840 mm |
| Minimum die holder-to-ram distance | 260 mm |
| Steam (air) pressure | |
| — Inlet | 6-8 Mpa |
| — Exhaust | 0,2-0,5 Mpa |
| Overall dimension | 2950 x 1660 mm |
| Height above floor level | 5310 mm |
| Mass (less anvil block) | 18,31 tons |
| Mass of anvil block | 40 tons |
