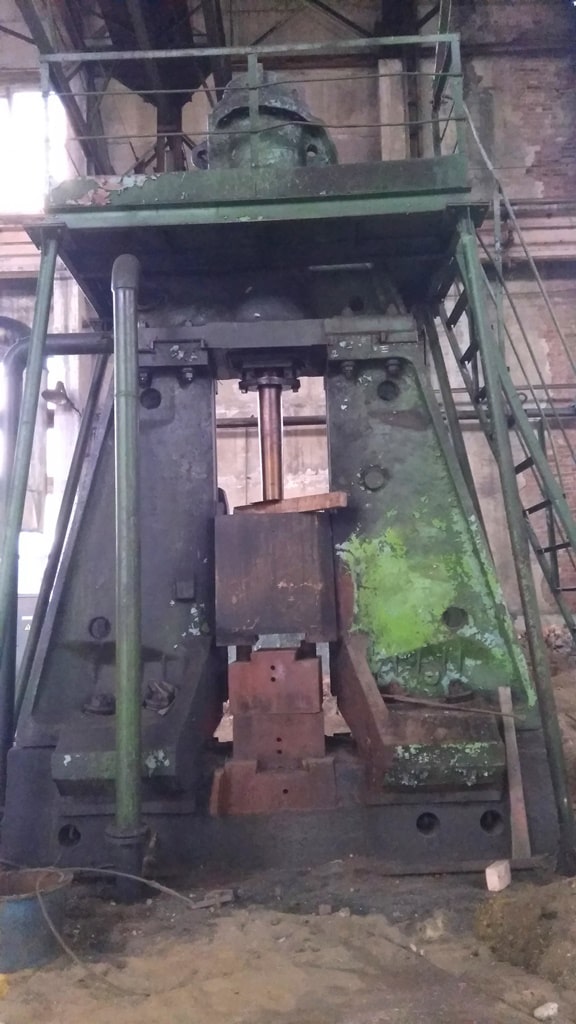

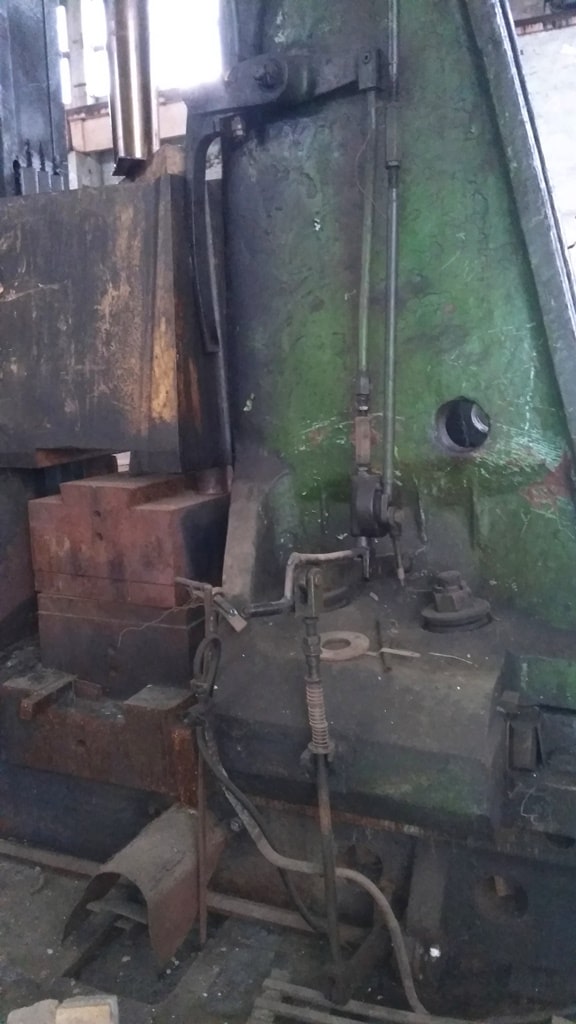

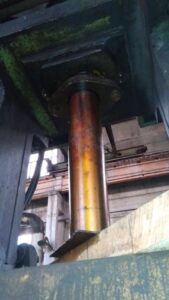

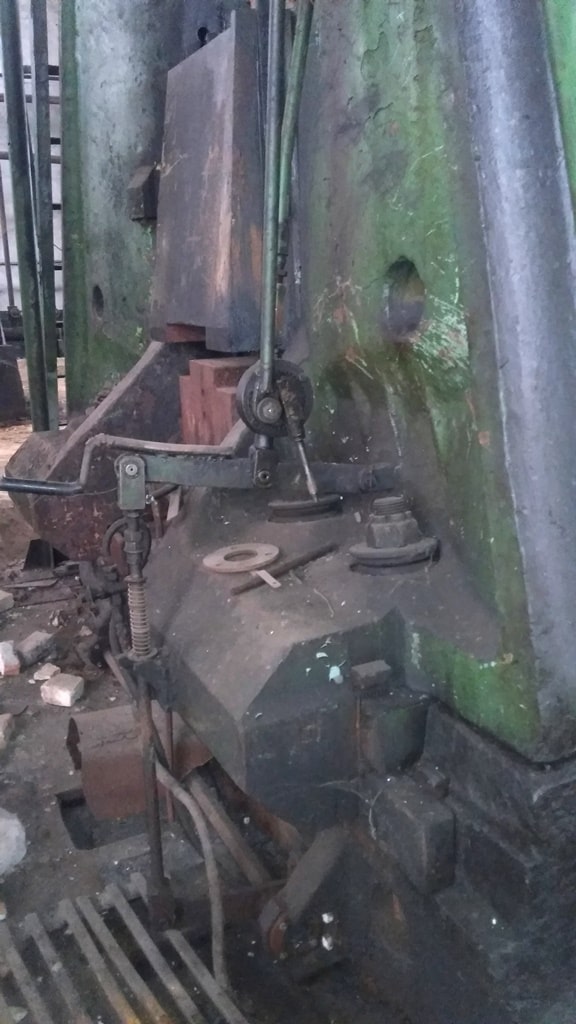

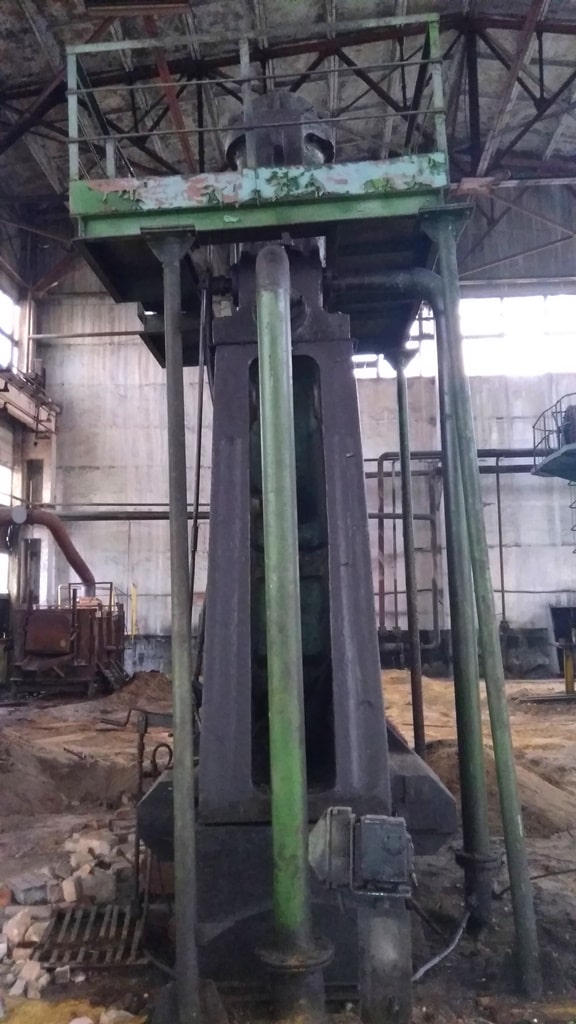

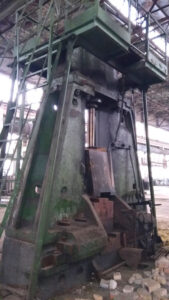

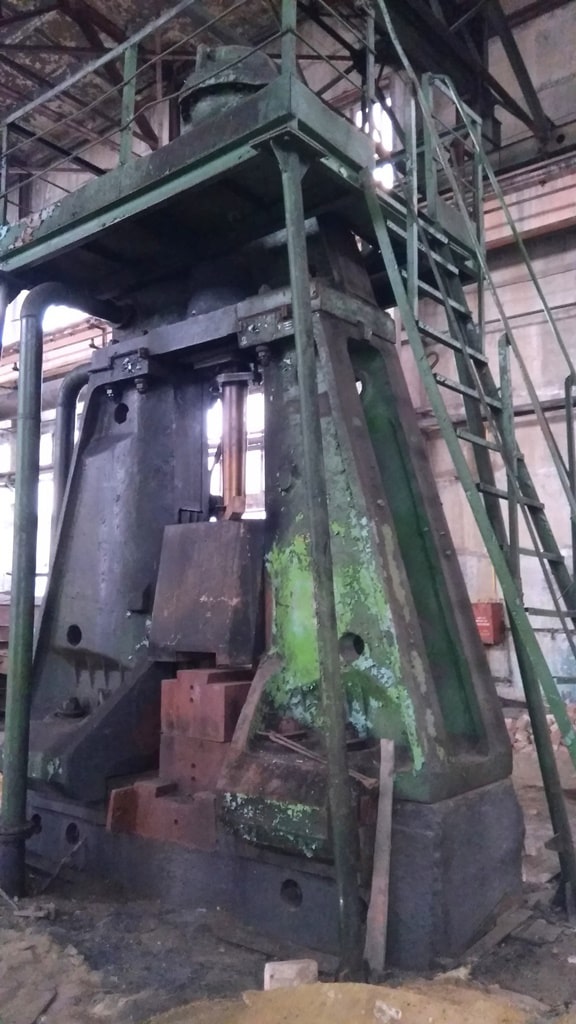

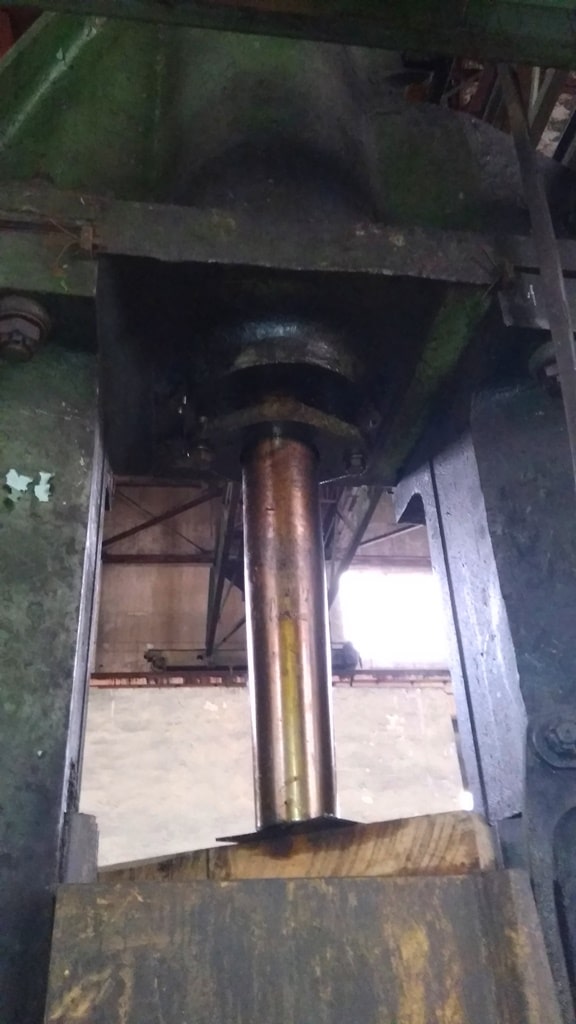

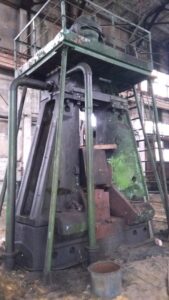

鍛造ハンマー TMP Voronezh M2145 - 3 トン
仕様 (EN) -
鍛造ハンマー TMP Voronezh M2145 - 3 トン (ID: 75363)
| Type | Forging hammer |
| Manufacturer | TMP Voronezh |
| Model | M2145 |
| Type of machine | Air steam forging hammer |
| Nominal mass of drop parts | 3150 kg |
| Strike energy | 80 kJ |
| Max number of blows per 1 min | 60 |
| Max ram stroke | 1250 mm |
| Distance clear between guides | 710 mm |
| Ram front-to-back dimensions | 750 mm |
| Die-holder front-to-back dimensions | 1000 mm |
| Bottom die impression-to-floor distance | 800 mm |
| Min die holder-to-ram distance | 340 mm |
| Steam (air) pressure | 0.7-0.9 MPa |
| Overall dimensions | |
| Floor space | 3820×1800 mm |
| Height above Floor level | 5340 mm |
| Weight without anvil | 25 ton |
| Weight of anvil block | 63 ton |
| Total weight of the hammer with anvil block | 88 ton |
