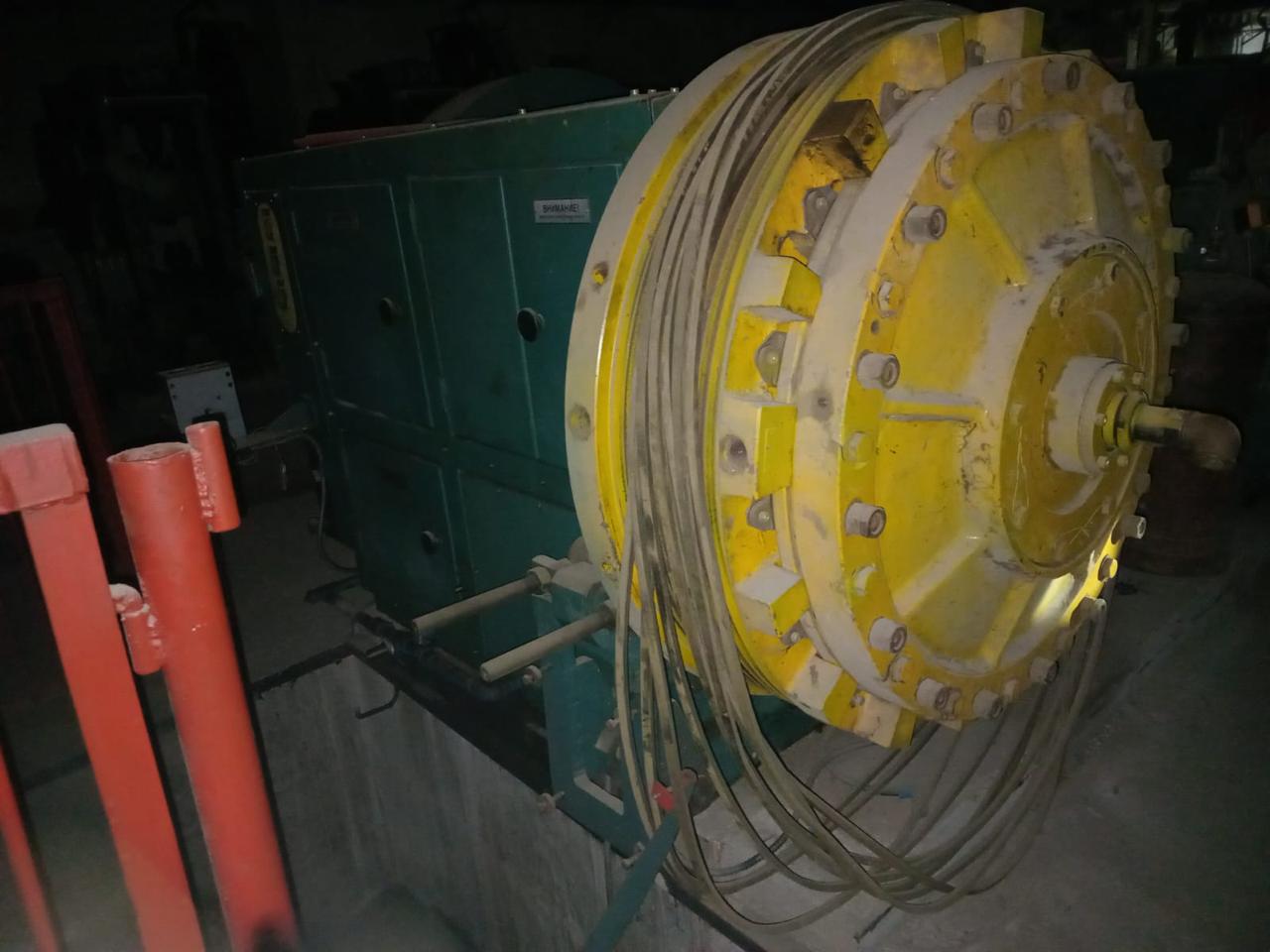

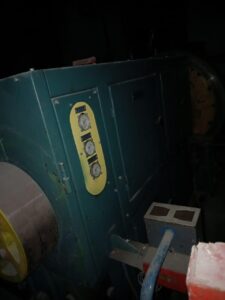

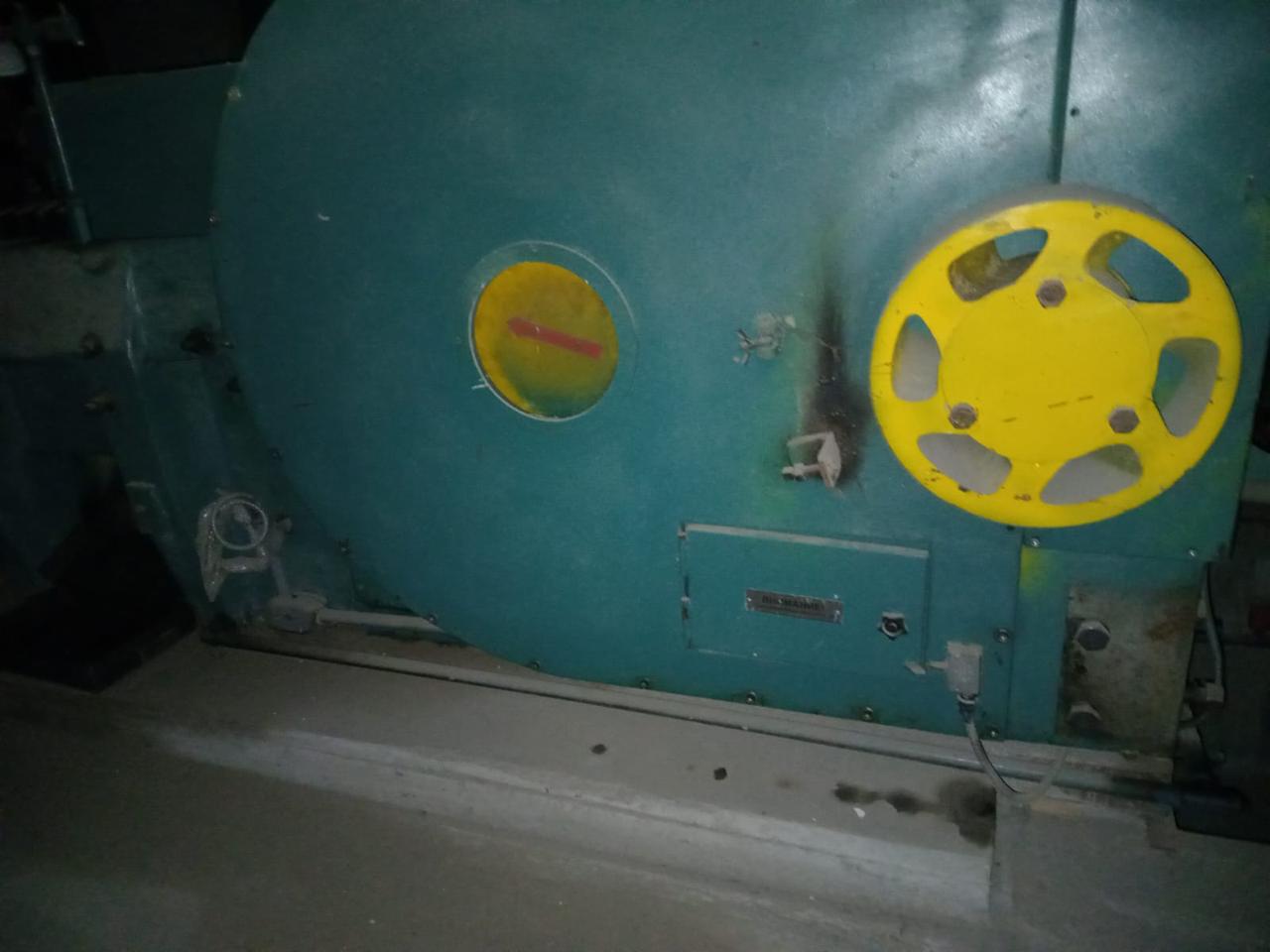

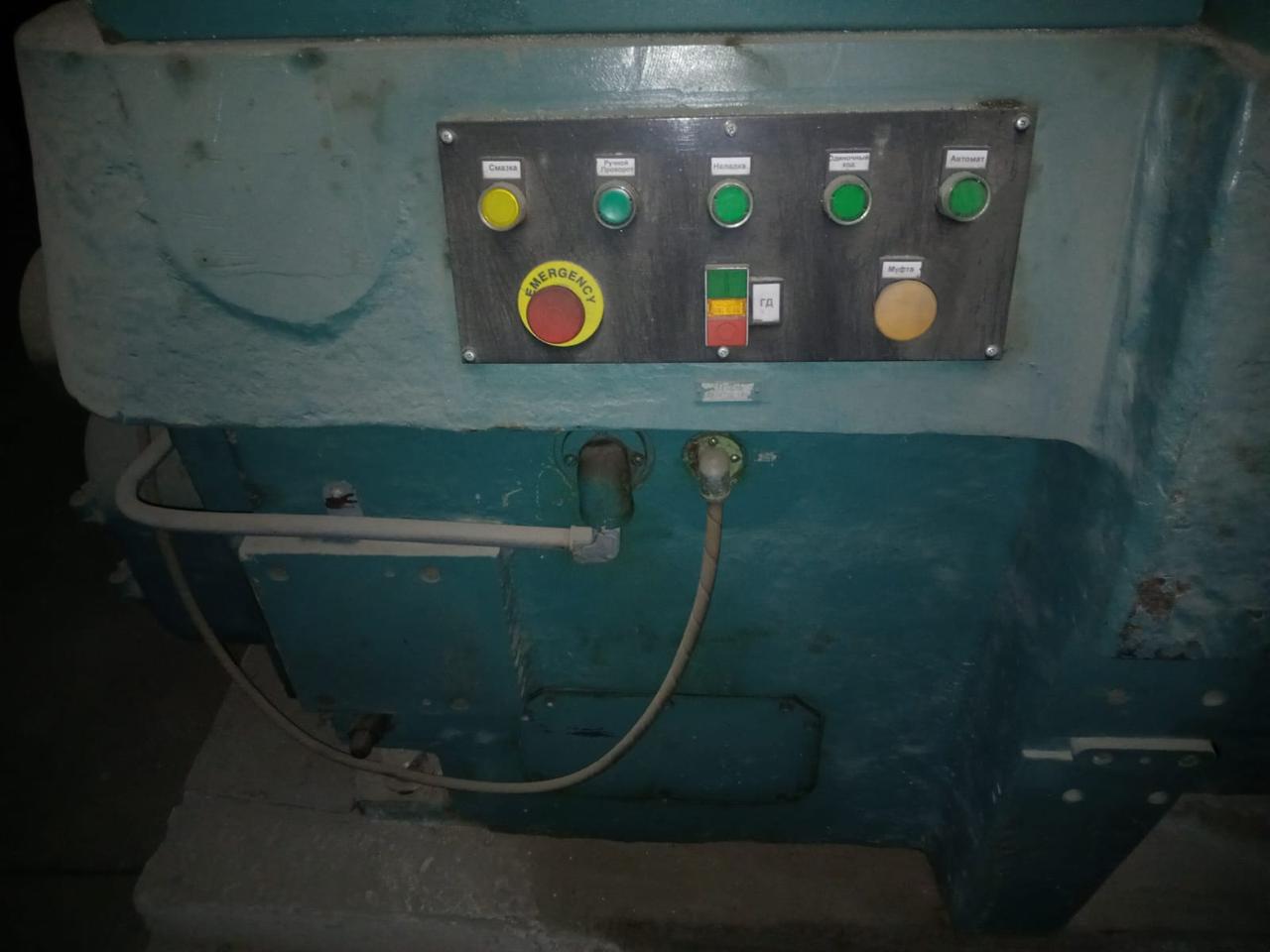

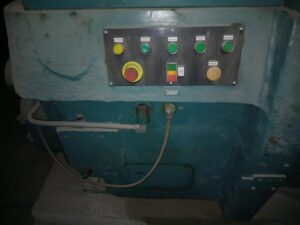

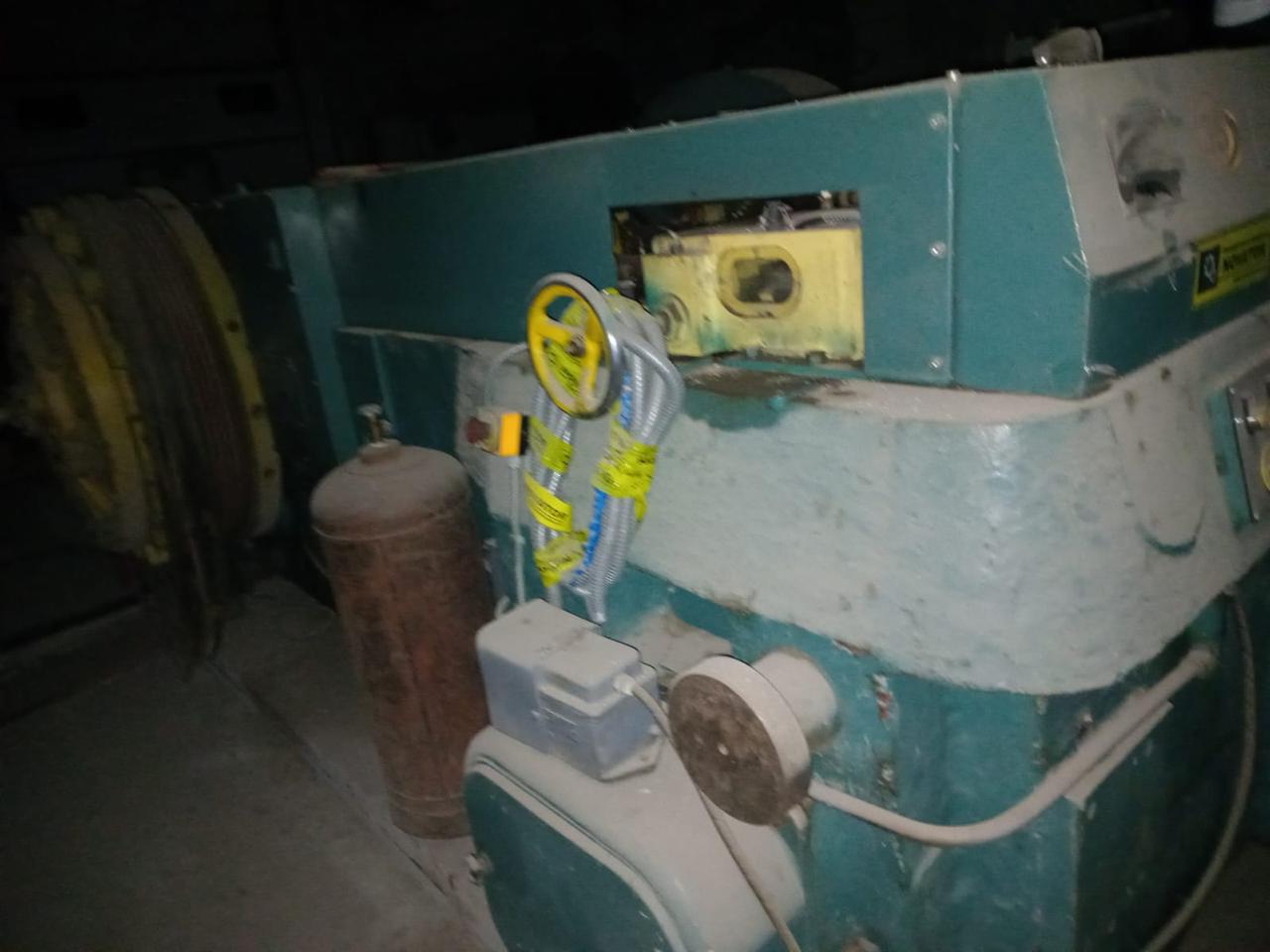

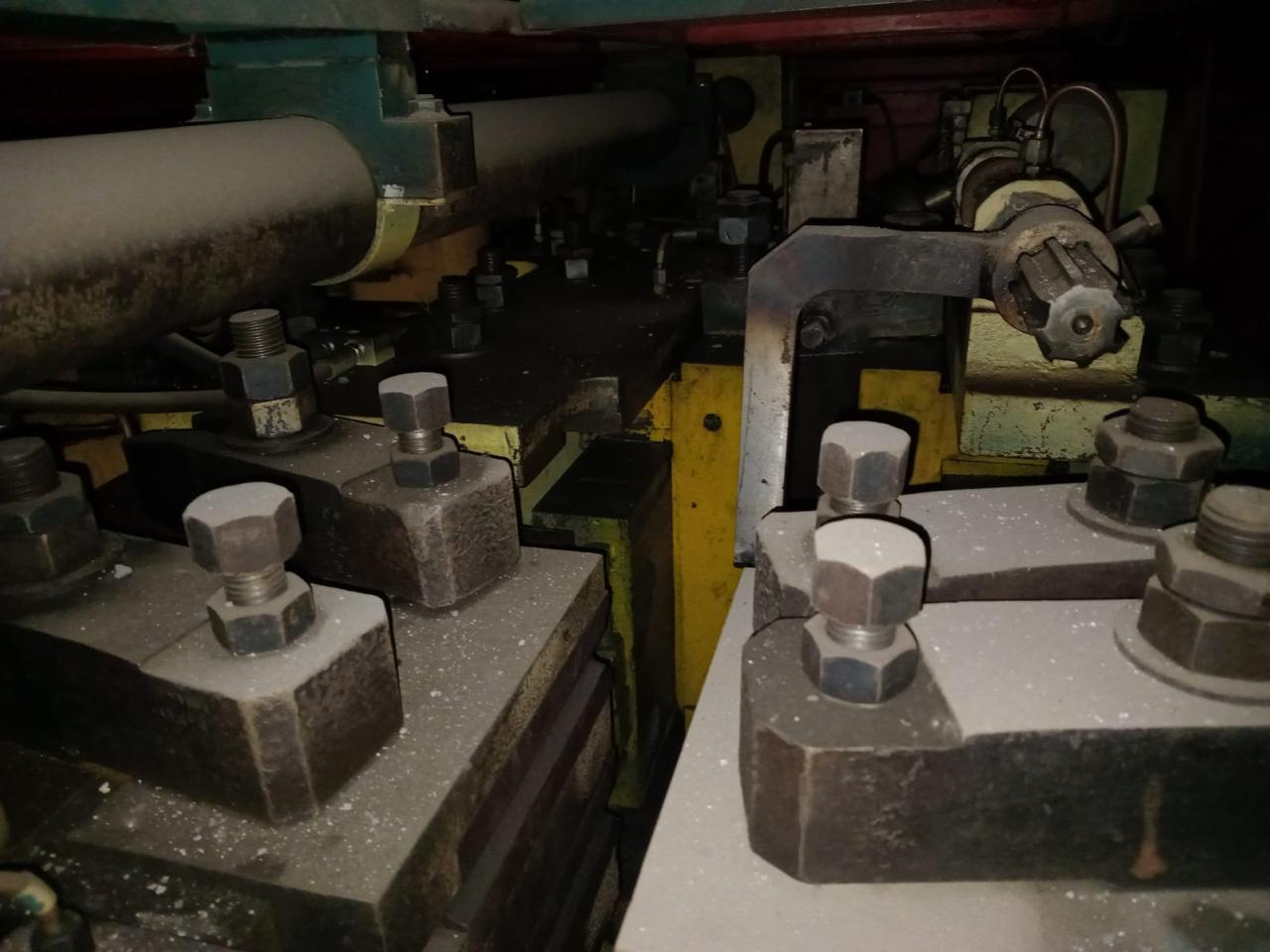

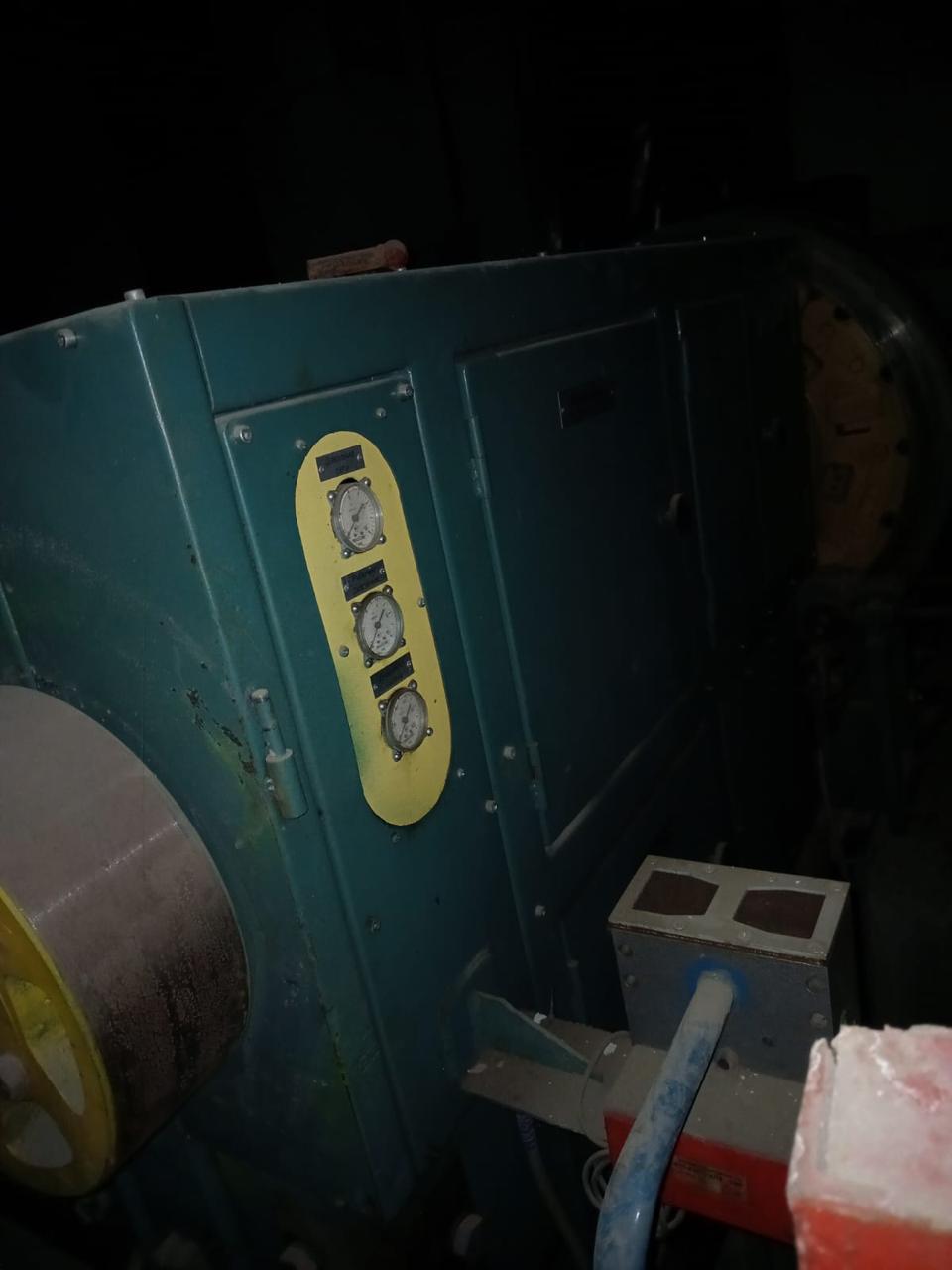

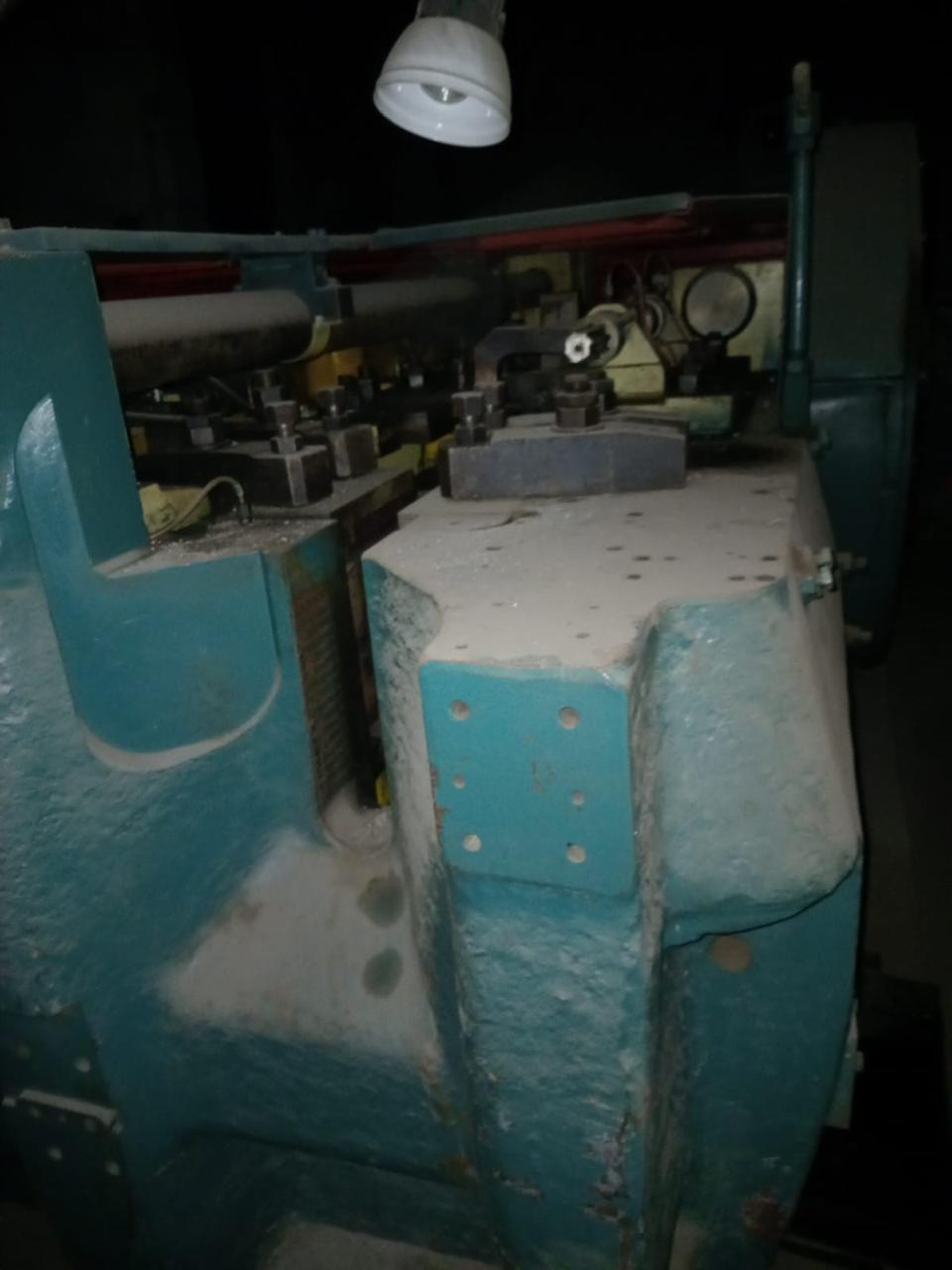

鍛造アップセッター Ryazan V1134 - 250 トン
技術仕様 -
Ryazan V1134 (ID: 76415)
| タイプ | 鍛造アップセッター |
| メーカー | Ryazan |
| モデル | V1134 |
| Max. diameter of initial blank | 30 mm |
| Blank length | |
| Min. | 120 mm |
| Max. | 300 mm |
| Max. diameter of upset flange | 60 mm |
| Upset slide nominal force | 2500 kN |
| Max. force on clamping slide with dies closed | 2500 kN |
| Stroke | |
| Movable die | 100 mm |
| Upset slide (full) | 220 mm |
| Die closing | 140 mm |
| Slide strokes per minute | 45 |
| Machine overall dimensions | |
| Length | 6050 mm |
| Width | 4600 mm |
| Height | 2260 mm |
| Machine weight | 24680 kg |
