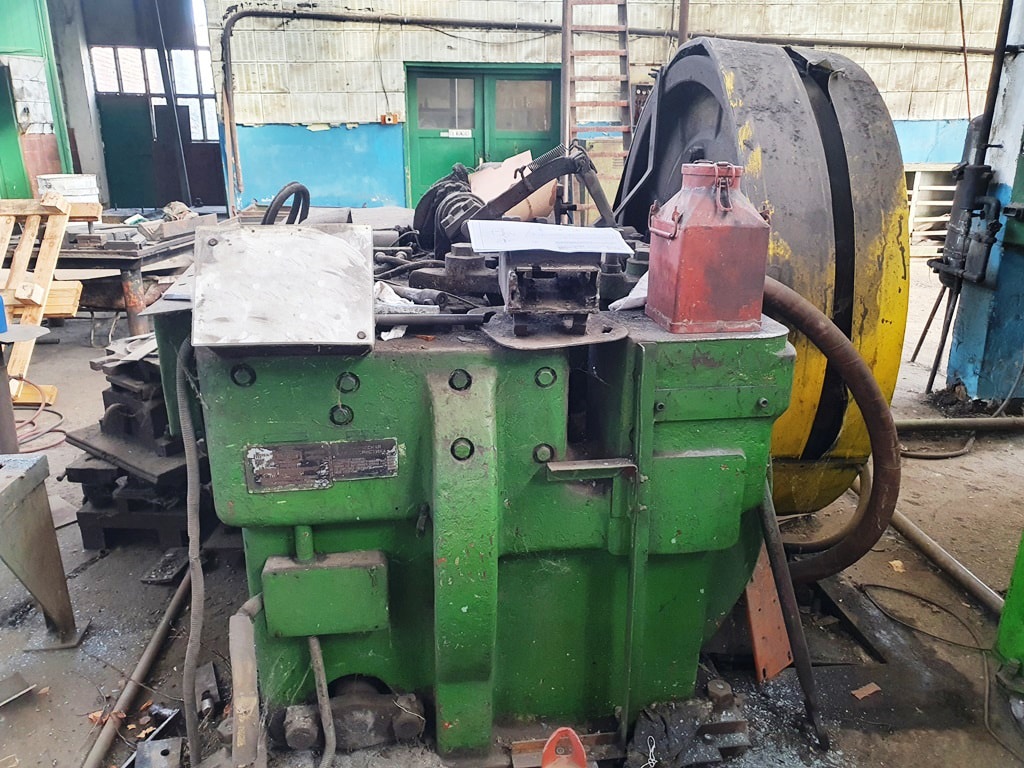

水平鍛造機 Ryazan V1132 - 160 トン
仕様 (EN) -
水平鍛造機 Ryazan V1132 - 160 トン (ID: 75719)
| Type | Forging upsetter |
| Manufacturer | Ryazan |
| Model | V1132 |
| Max. diameter of workpiece | 35 mm |
| Max. diameter of upset flange | 60 mm |
| Upset slide nominal force | 160 ton |
| Force on clamping slide with dies closed | 160 ton |
| Upset slide stroke | 200 mm |
| Upset slide stroke with dies closed | 125 mm |
| Slide continuous idle strokes per minute | 80 |
| Electric motor power | ~17 kW |
| Machine overall dimensions | |
| Length | 2100 mm |
| Width | 2820 mm |
| Height | 1600 mm |
