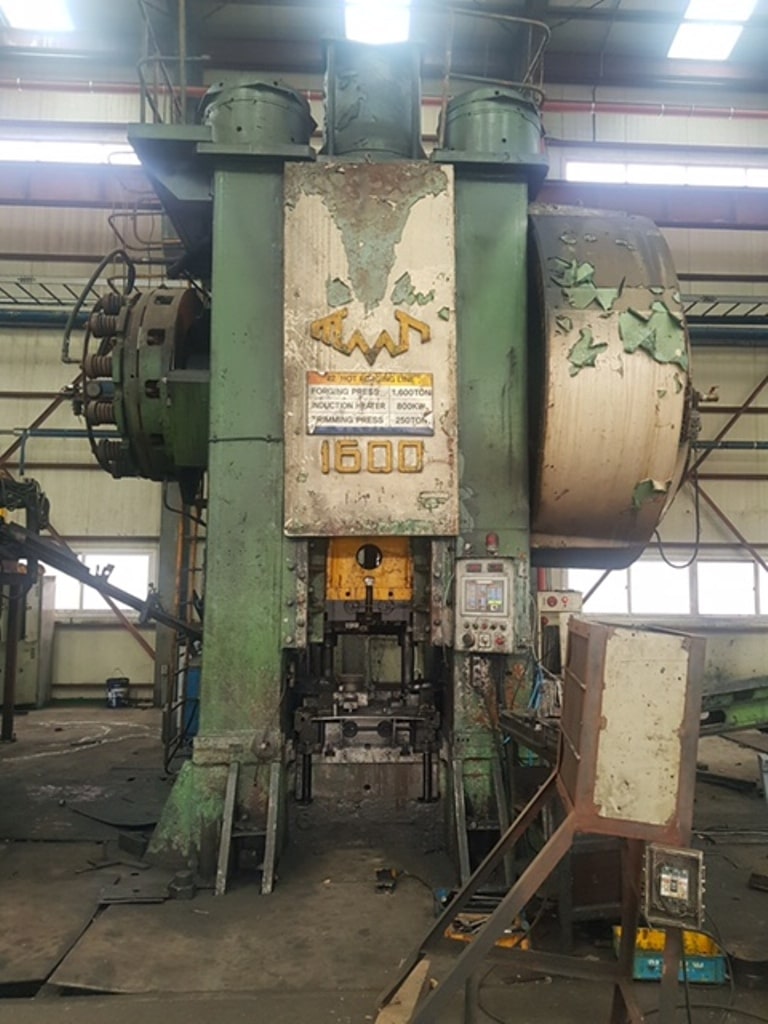

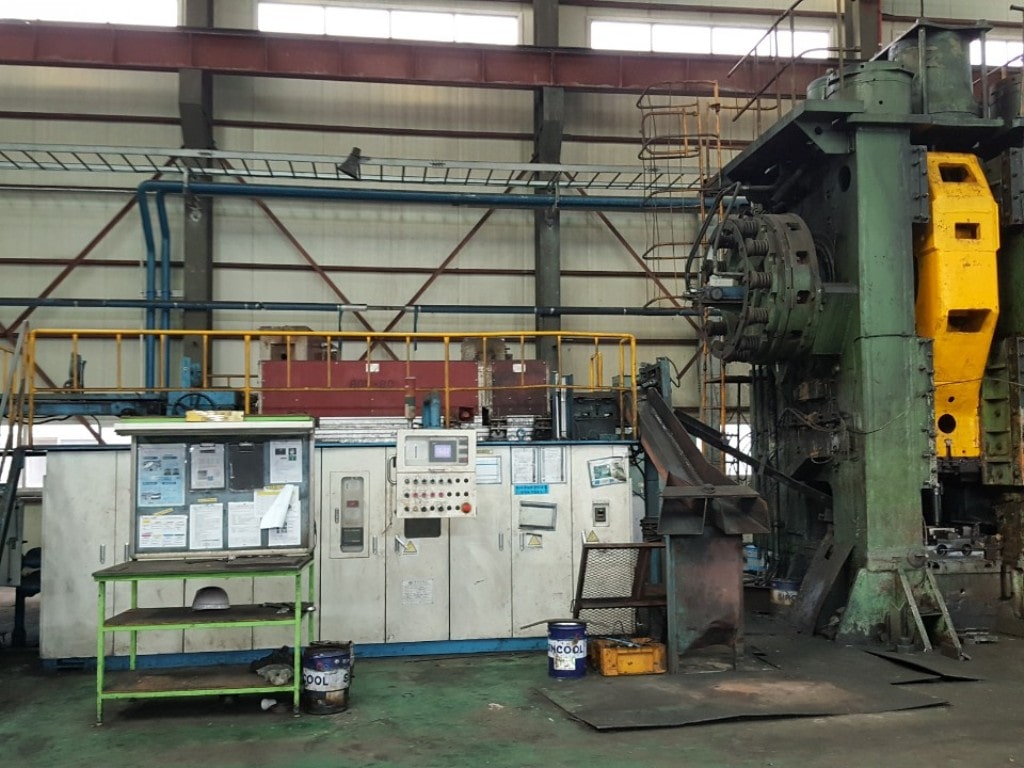

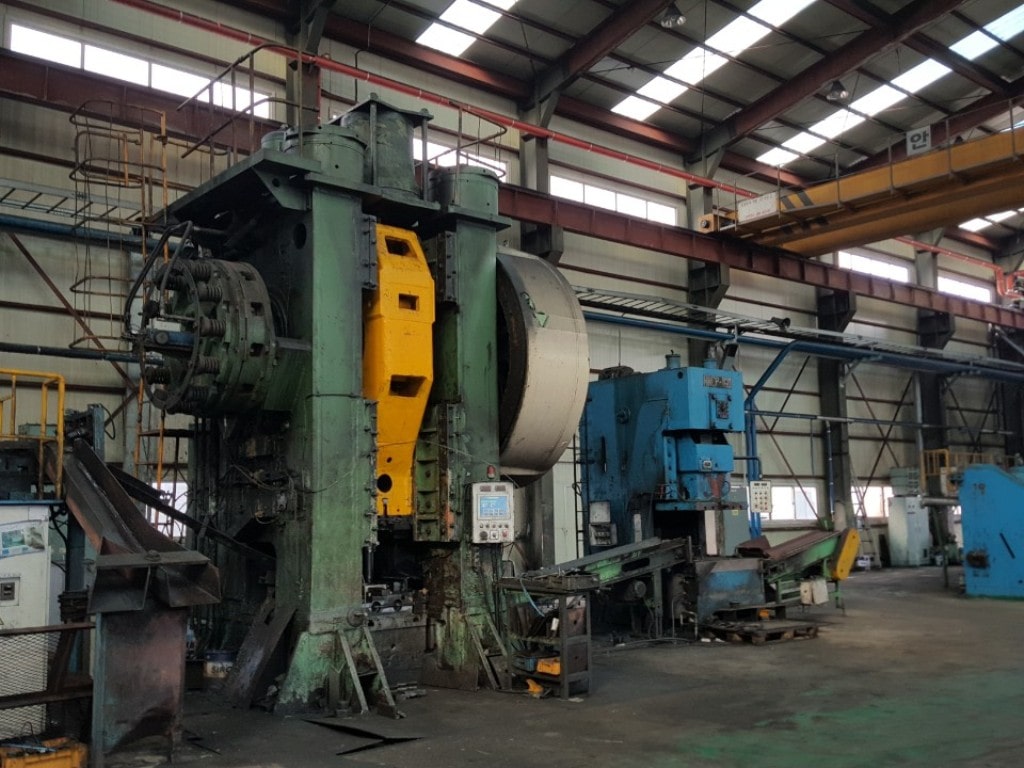

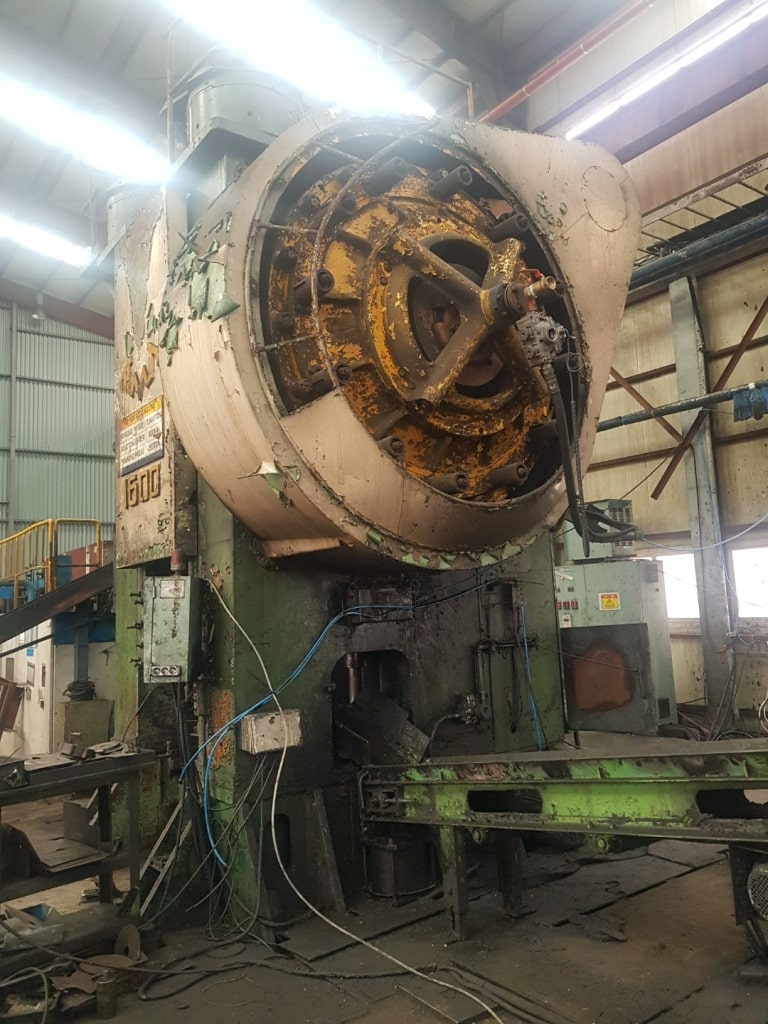

熱間鍛造ライン TMP Voronezh K04.038.842 - 1600 トン

Dabrox 掲載 ID: 75883

このオファーに関する詳細情報のお問い合わせ：
- 在庫状況、価格
- 支払い・配送条件
- 特性、状態、写真など

* 必須項目

仕様 (EN) - 熱間鍛造ライン TMP Voronezh K04.038.842 - 1600 トン (ID: 75883)

TypeHot forging line
ManufacturerTMP Voronezh
ModelK04.038.842
Year of manufacture1978
Capacity1600 ton
Slide stroke300 mm
Slide stroke length at maximum force0,16 mm
Distance adjustment between table and slider10 mm
Slide stroke number in 1 min85
Length of a rod920 mm
The closed height (the least distance between a table and a slider in his bottom position)660 mm
Table overall dimensions940 x 1200 mm
Table height above floor level450 mm
Slide overall dimensions860 x 910 mm
The size of lateral windows
— Height560 mm
— Width600 mm
Main motor90 kW
Press overall dimensions
— Length4850 mm
— Width3515 mm
— Height above floor level5570 mm
Press weight119680 kg
