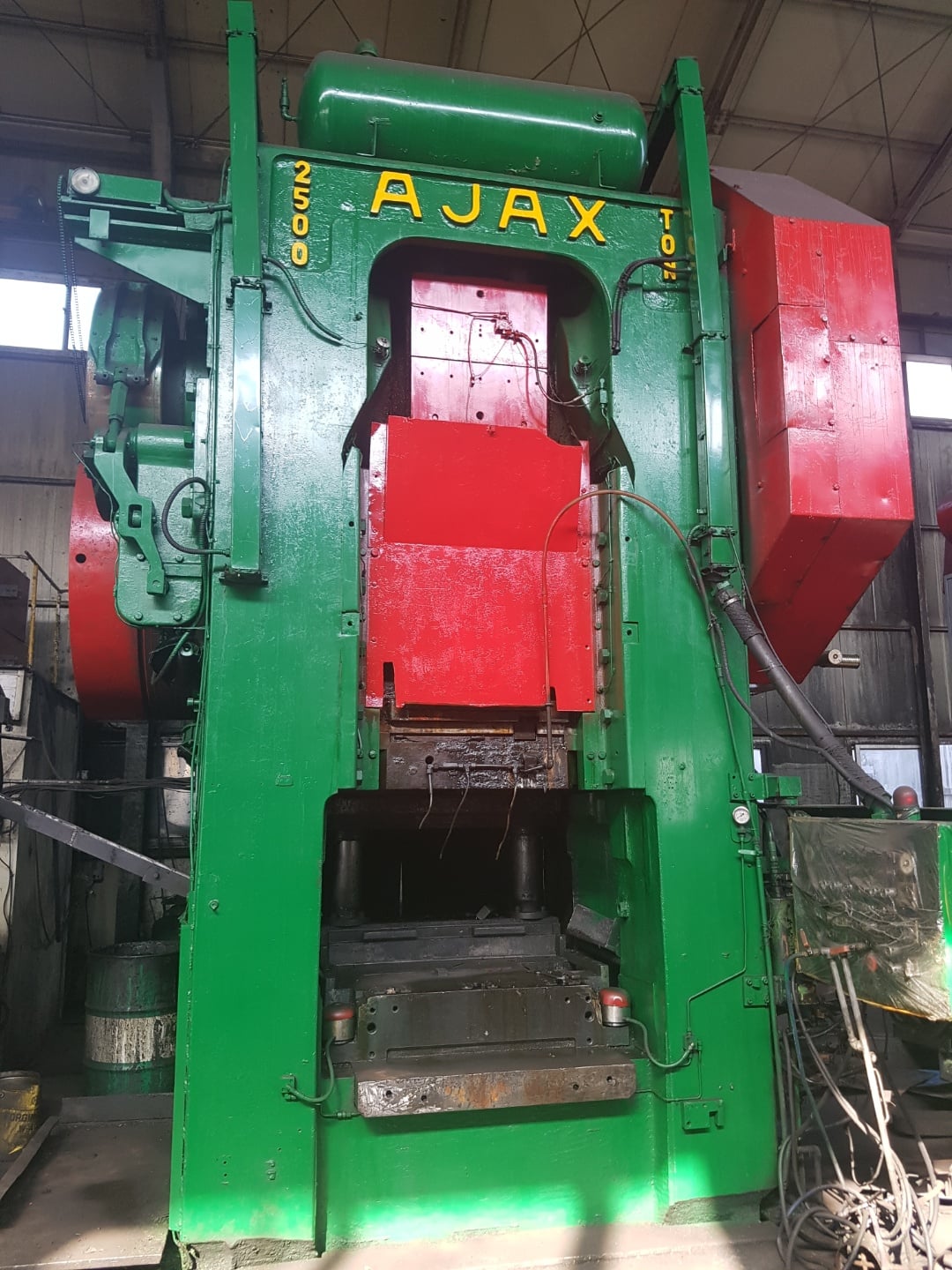

熱間鍛造プレス Ajax 2500 MT - 2500 トン
仕様 (EN) - 熱間鍛造プレス Ajax 2500 MT - 2500 トン (ID: S86879)
| Type | Hot forging press |
| Manufacturer | Ajax |
| Model | 2500 MT |
| Year of manufacture | 1988 |
| Capacity | 2500 ton |
| SPM | 50 |
| Stroke | 350 mm |
| Ram Face L-R / F-B | 1320 mm / 1240 mm |
| Top Knockout Stroke | 48 |
| Ram to table | 1041 mm |
| Norminal Mech. Stroke | 64 |
| Table to floor | 1000 mm |
| Die seat L-R / F-B | 1380 mm / 1520 mm |
| Width between Column L-R | 1219 mm |
| Side window width | 711 mm |
| Floor space L-R / F-B | 4166 mm / 3734 mm |
| Height above floor | 5614 mm |
| Motor | 112 kW |
| Weight | 150 ton |
