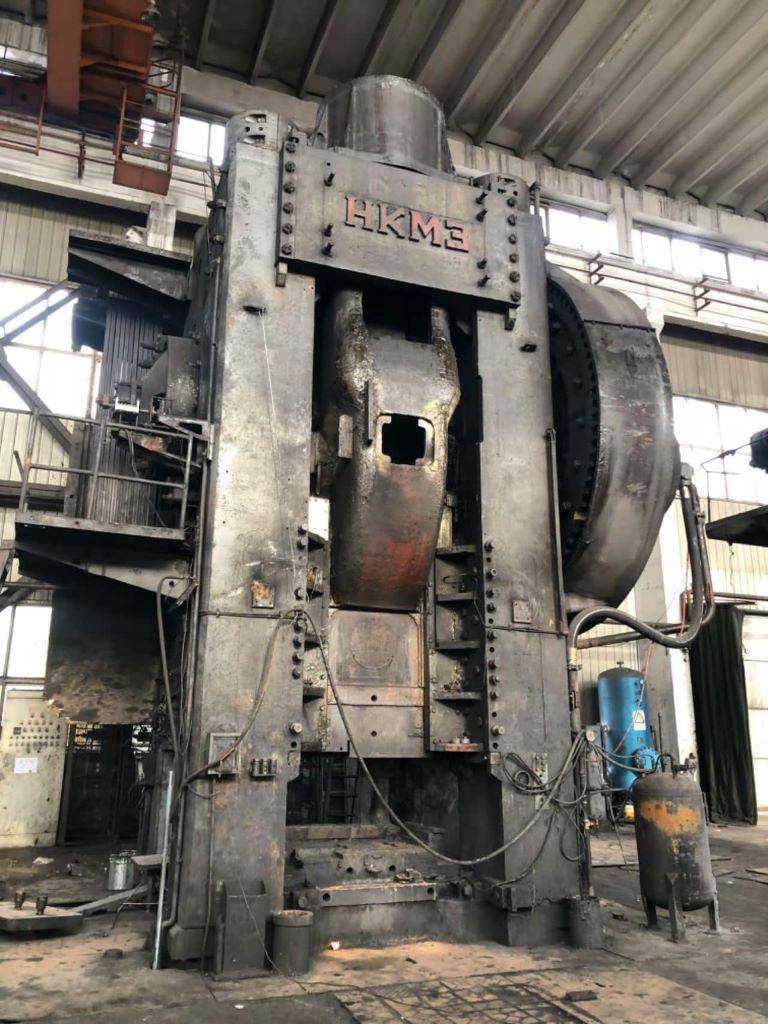

熱間鍛造プレス Kramatorsk NKMZ 6300 - 6300 トン
仕様 (EN) - 熱間鍛造プレス Kramatorsk NKMZ 6300 - 6300 トン (ID: S88950)
| Type | Hot forging press |
| Manufacturer | Kramatorsk NKMZ |
| Model | 6300 |
| Rated capacity | 6300 ton |
| Slide stroke | 460 mm |
| Slide strokes per minute (continuous) | 40 |
| Shut height | 1150 mm |
| Adjustable distance between table and slide | 15 mm |
| Distance between uprights clear | 1950 mm |
| Table working surface | |
| L-to-R | 1600 mm |
| F-to-B | 1900 mm |
| Slide dimensions | |
| L-to-R | 1680 mm |
| F-to-B | 1680 mm |
| Top ejector stroke | 100 mm |
| Bottom ejector stroke | 230 mm |
| Uprights openings dimensions | |
| Width | 1100 mm |
| Height | 1250 mm |
| Main drive motor power | 400 kW |
| Overall dimensions | |
| L-to-R | 8600 mm |
| F-to-B | 5900 mm |
| Height above floor level | 9300 mm |
| Weight | 658 ton |
