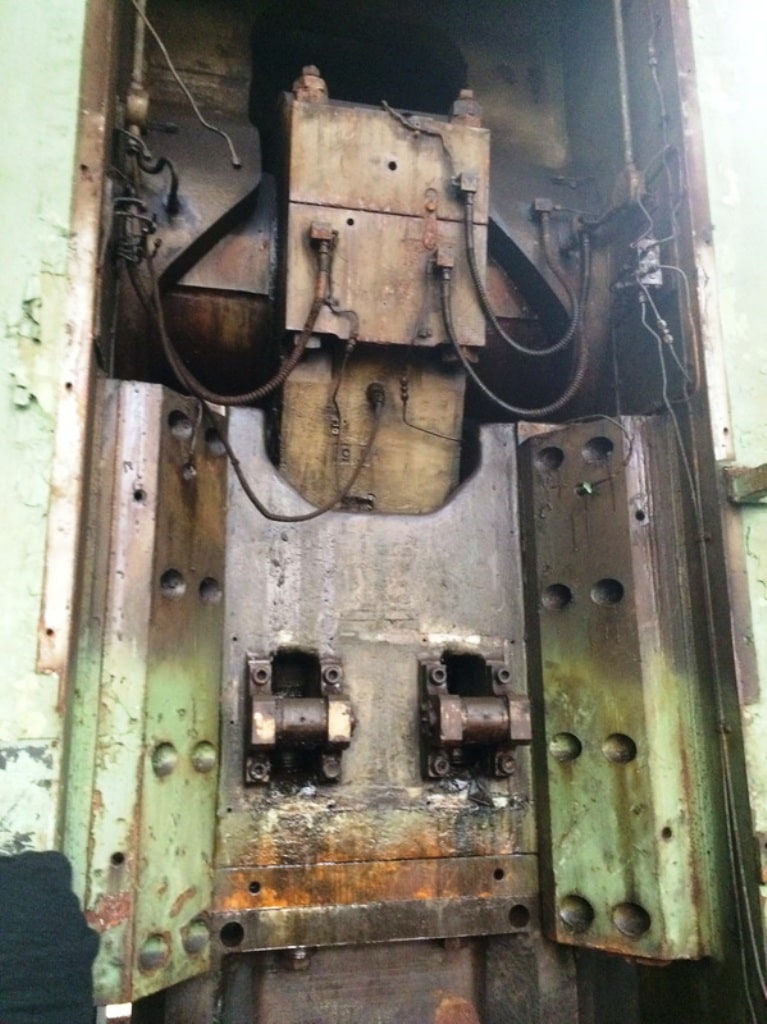

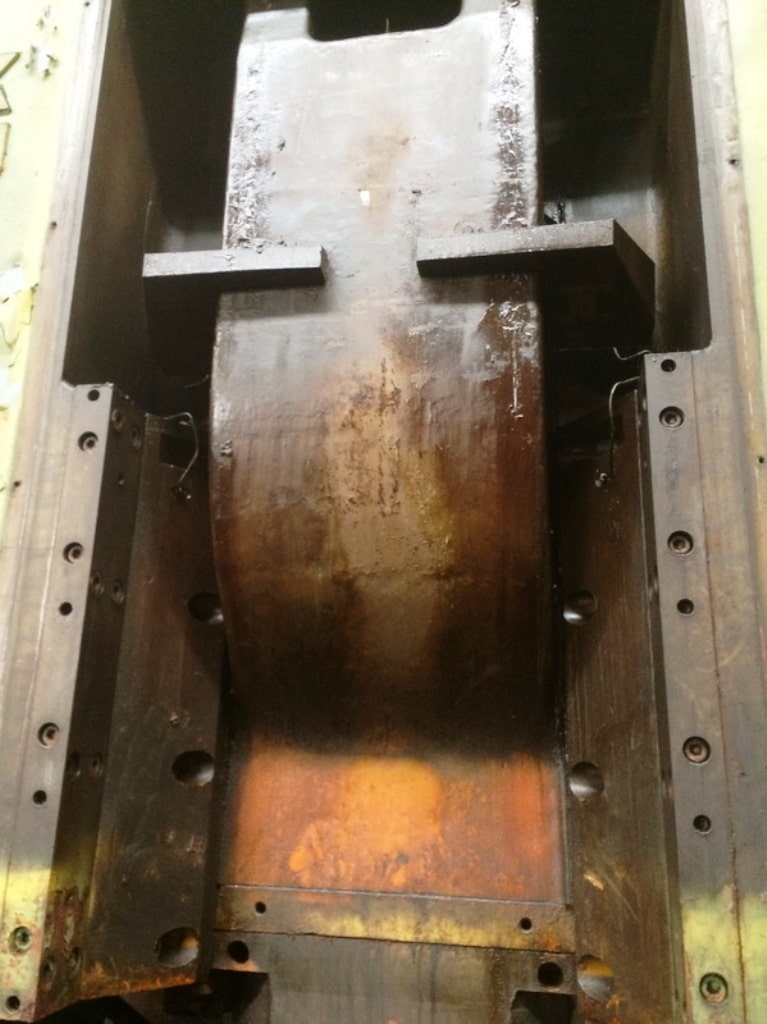

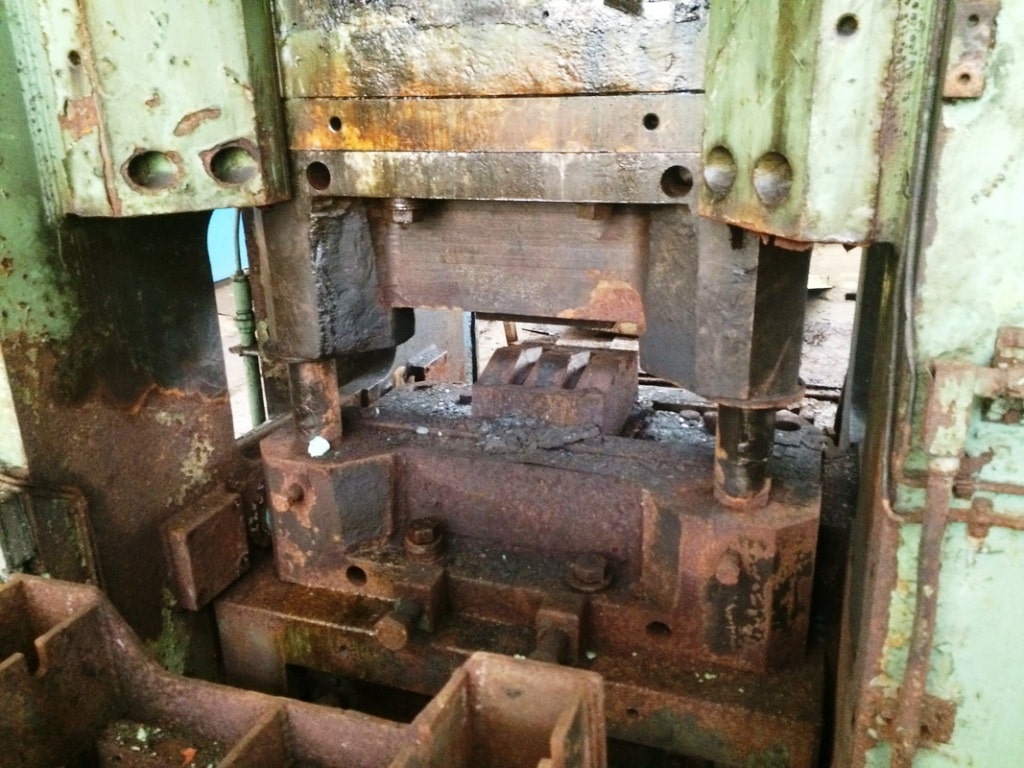

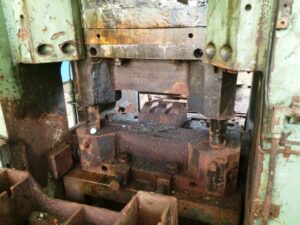

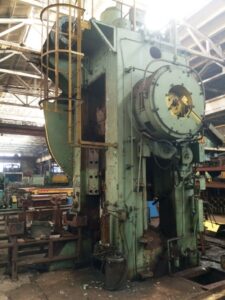

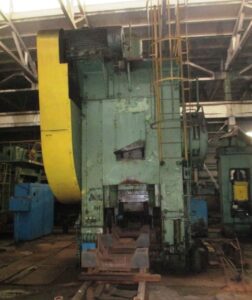

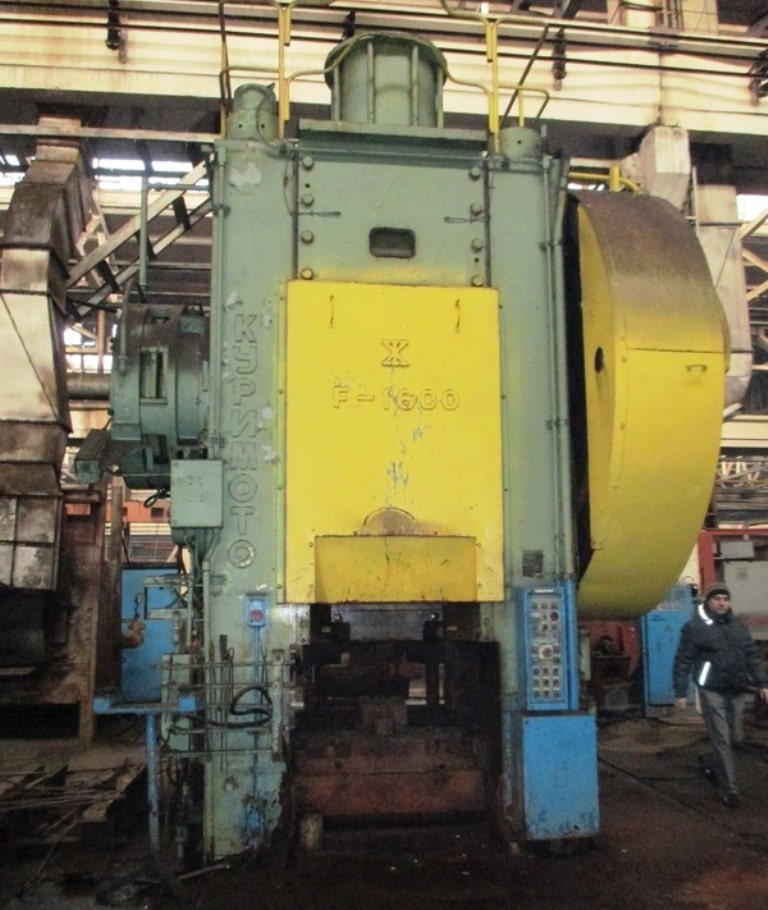

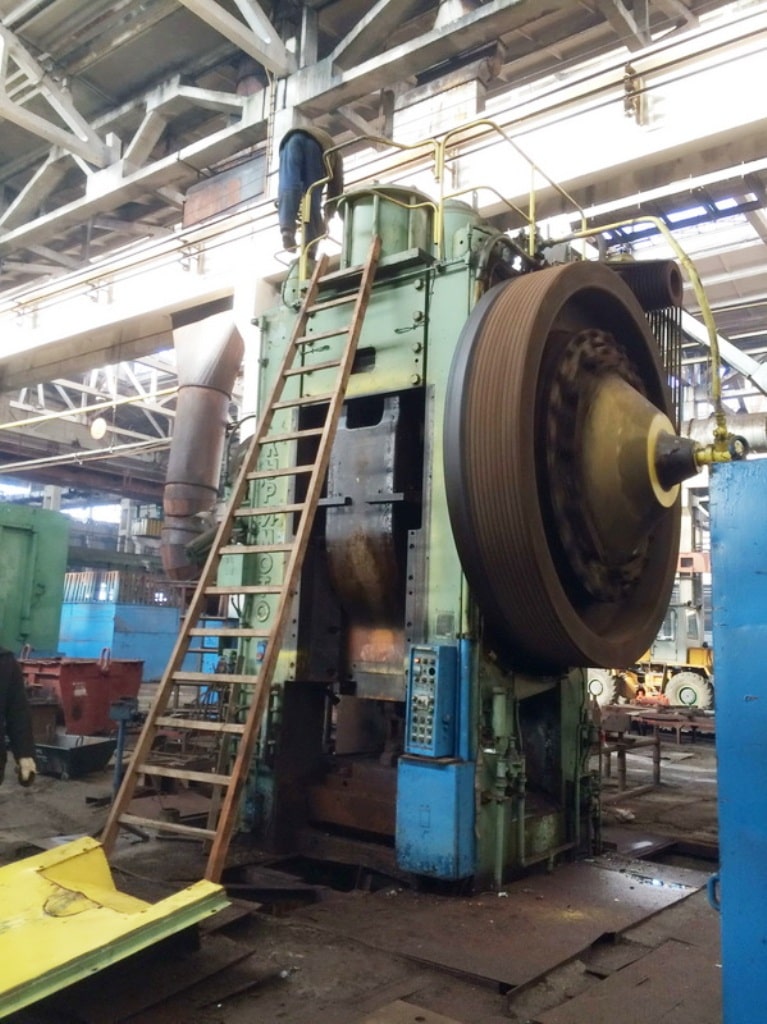

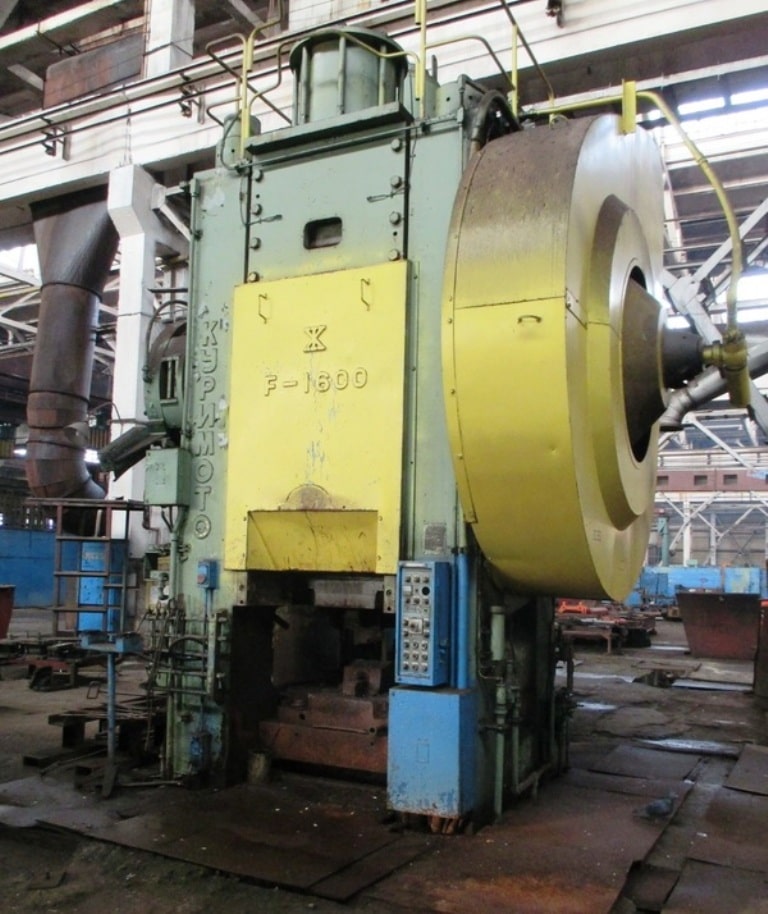

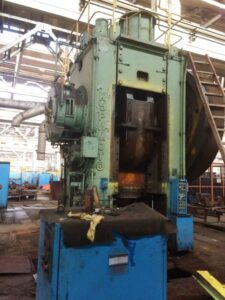

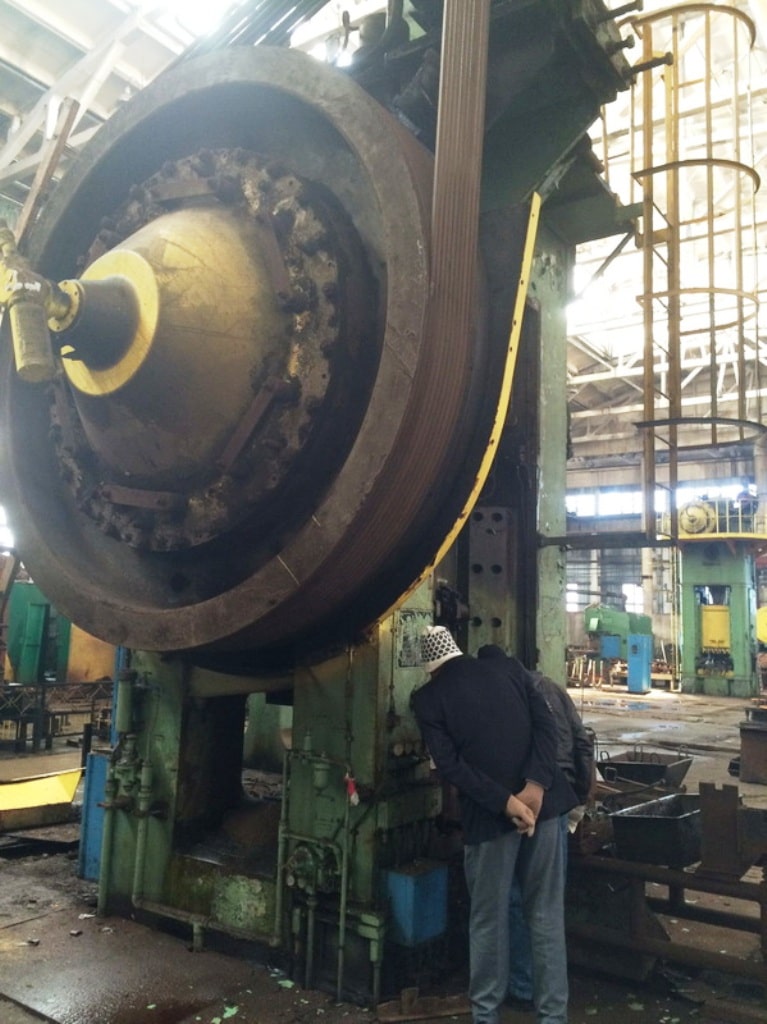

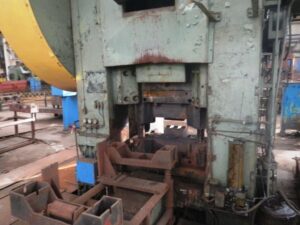

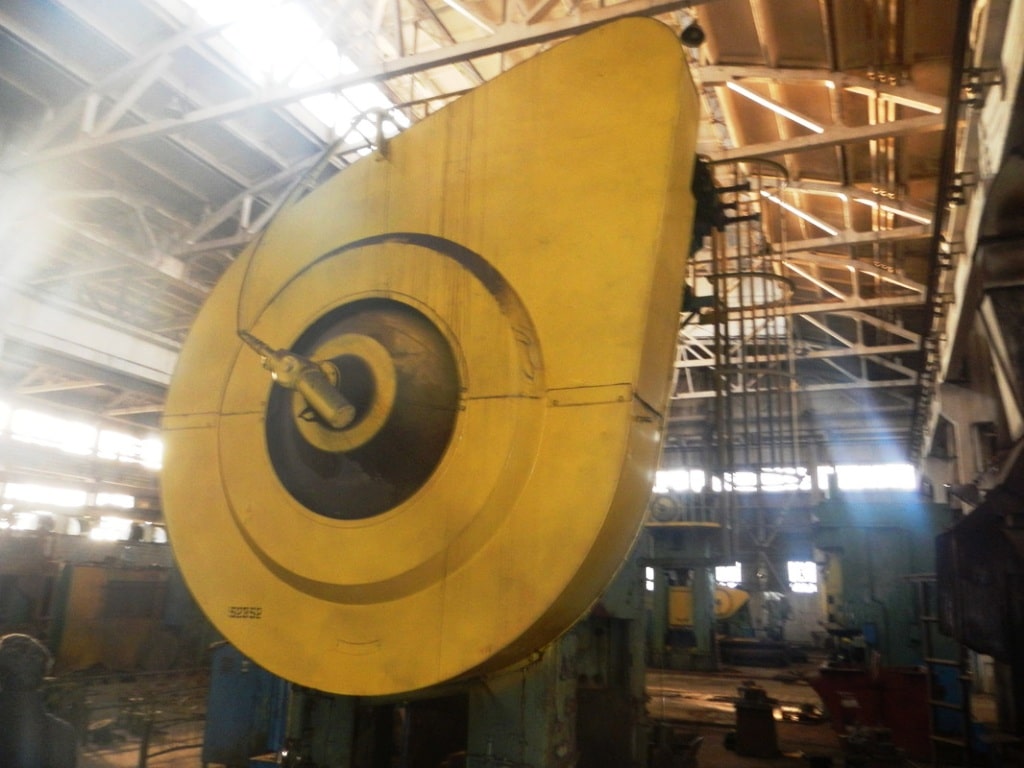

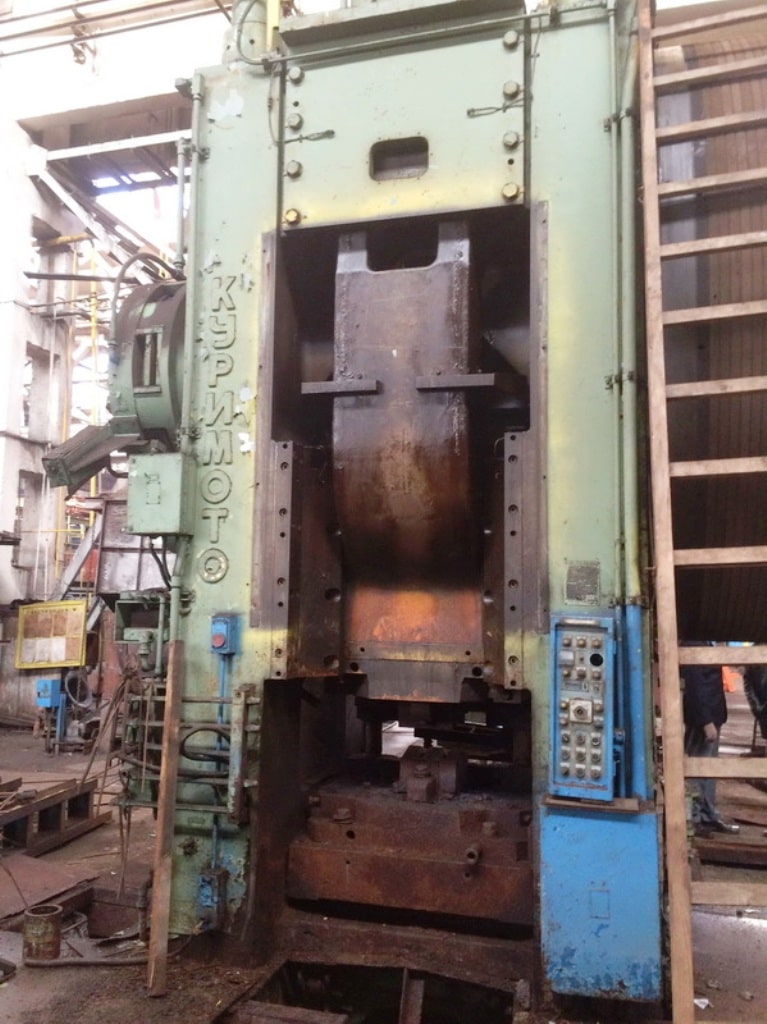

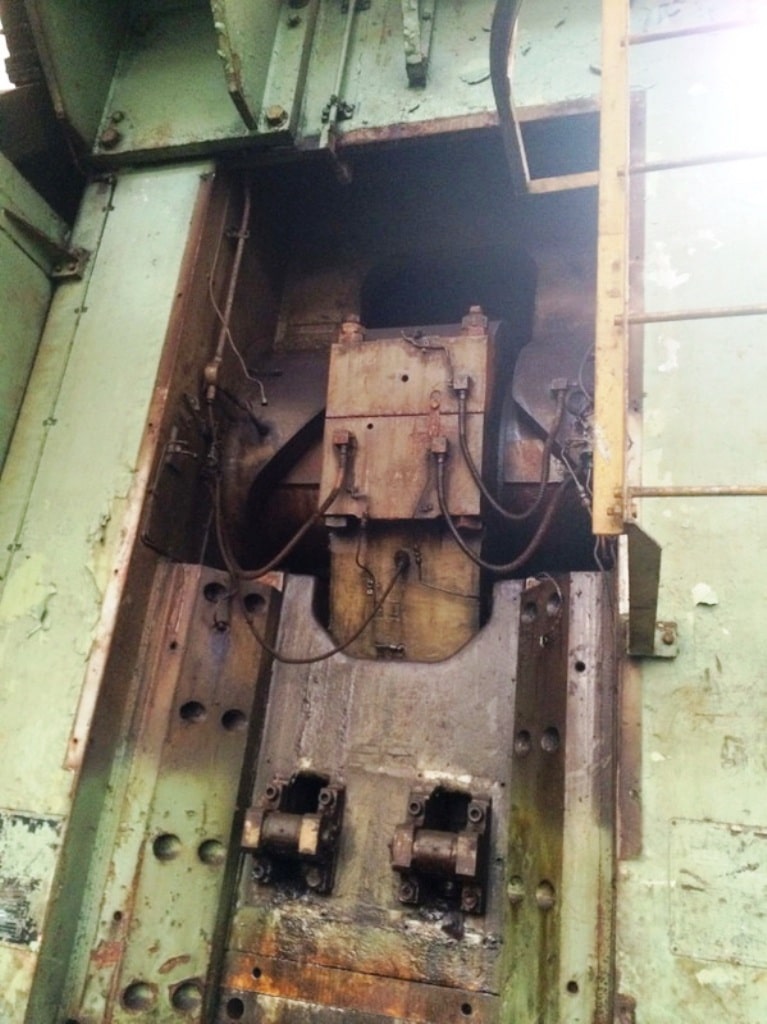

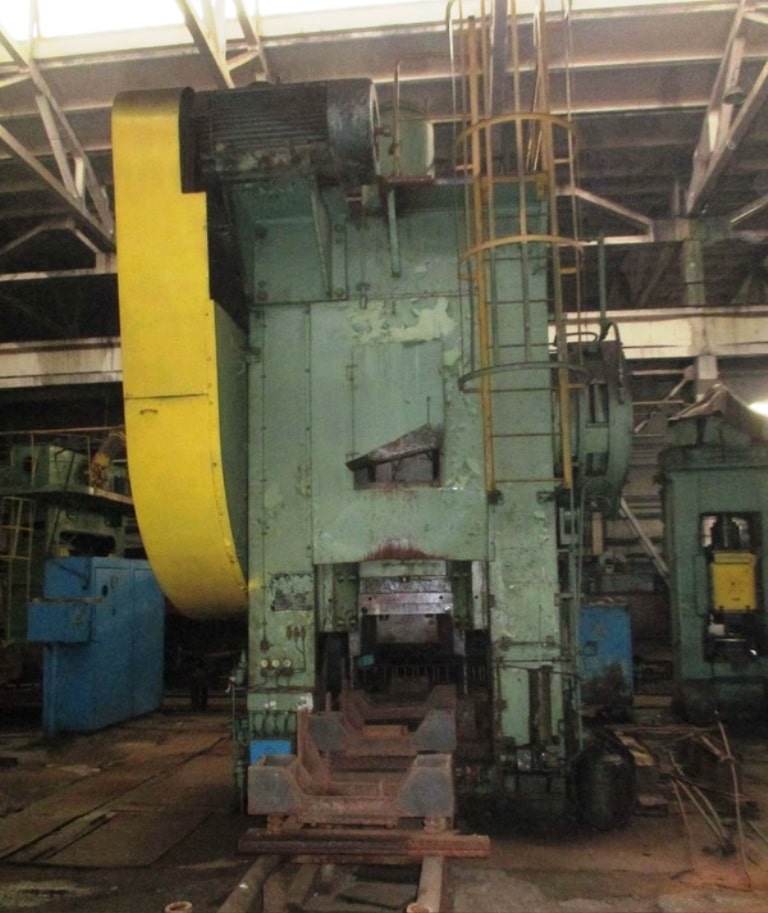

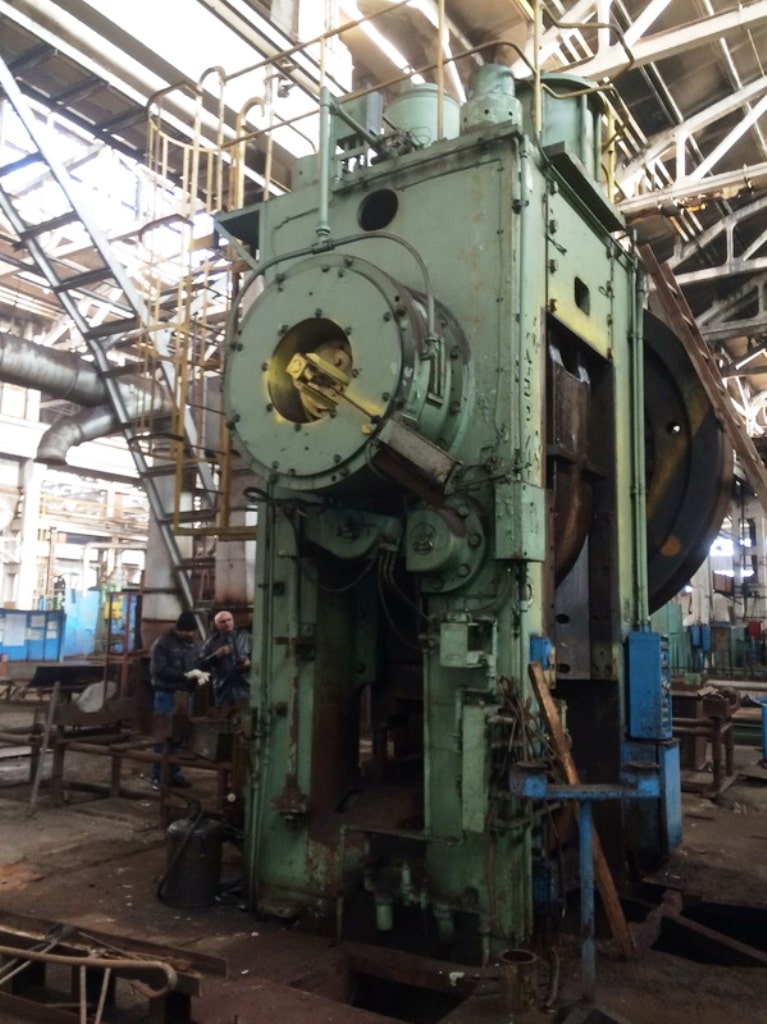

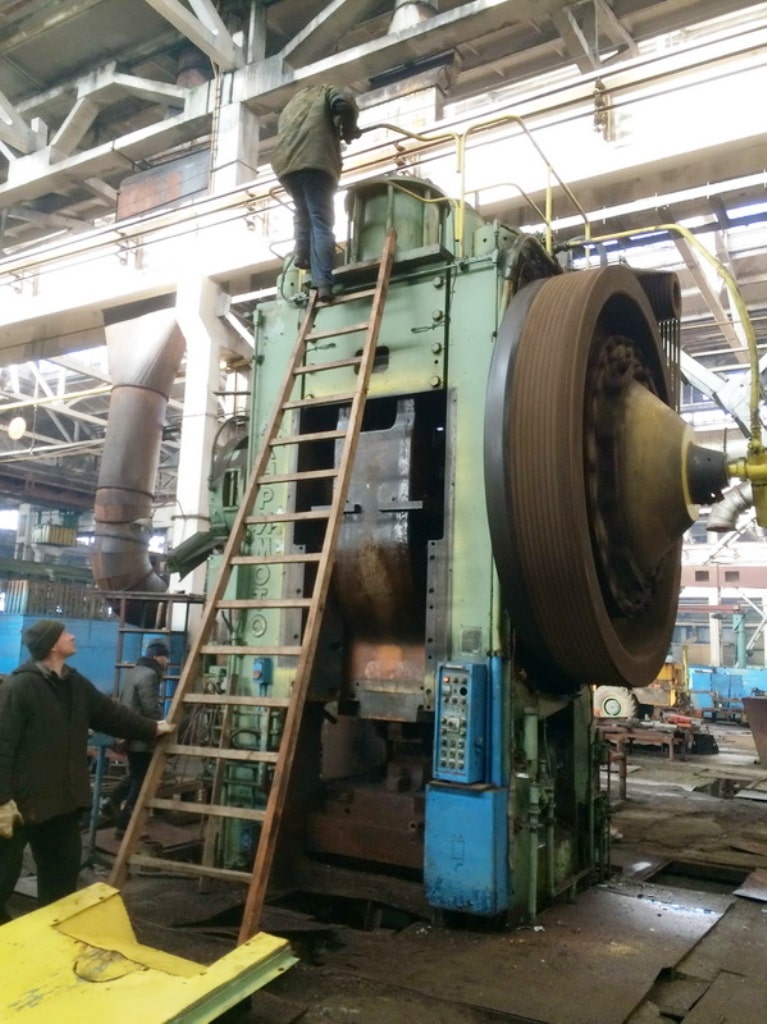

熱間鍛造プレス Kurimoto F-1600 - 1600 トン
仕様 (EN) - 熱間鍛造プレス Kurimoto F-1600 - 1600 トン (ID: S84501)
| Type | Hot forging press |
| Manufacturer | Kurimoto |
| Model | F-1600 |
| Force | 1600 tons |
| Stroke length | 280 mm |
| Number of strokes per minute | 80 |
| Number of working strokes per minute | 22 |
| Closed height | 760 mm |
| Adjustable level of closed height | 16 mm |
| Table area | |
| — left-to-right | 1240 mm |
| — front-to-back | 1140 mm |
| Slide area | |
| — left-to-right | 920 mm |
| — front-to-back | 920 mm |
| — bed distance | 1290 mm |
| Upper ejection | |
| — force | 4 tons |
| — stroke | 50 mm |
| Lower ejection | |
| — force | 30 tons |
| — stroke | 60 mm |
| Working air pressure | 5 kg/cm² |
| Main electric motor | 380 V; 50 Hz; 75 kW |
| Electric motor for adjustment of closed height | 380 V; 50 Hz; 1,5 kW |
| Electric motor for pump for feeding of lubricating oil | 380 V; 50 Hz; 0,2 kW |
