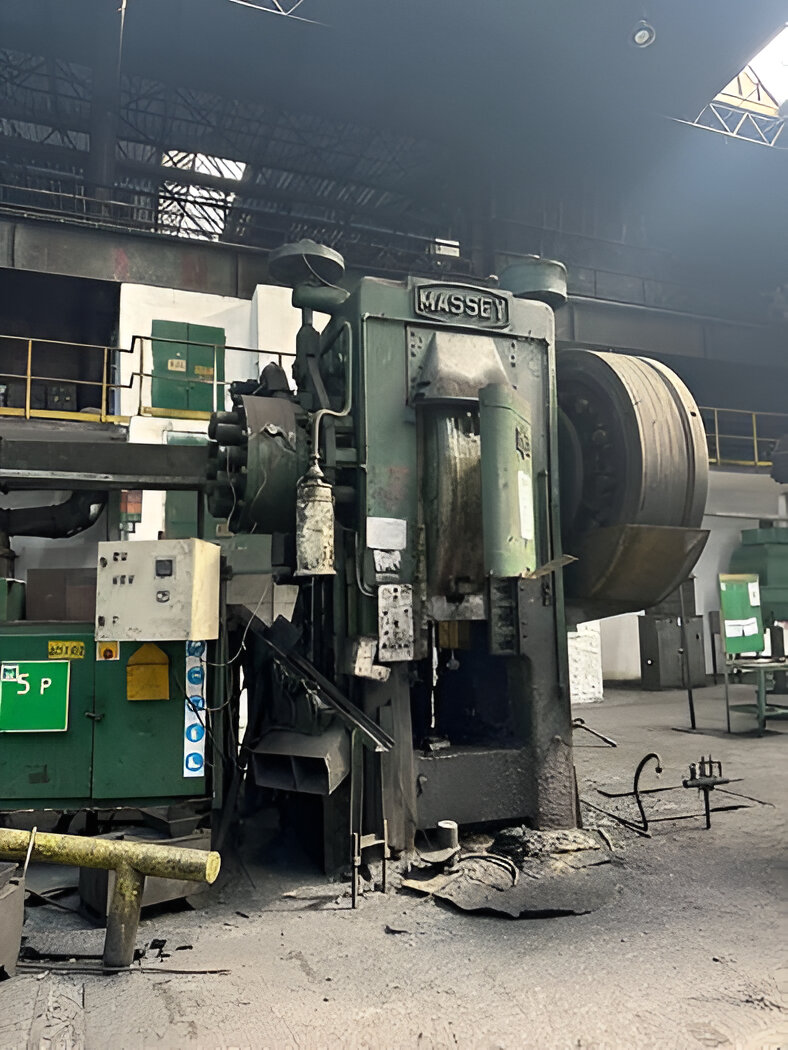

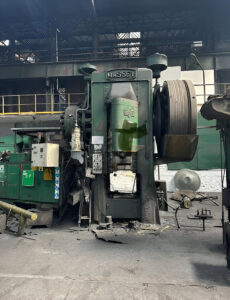

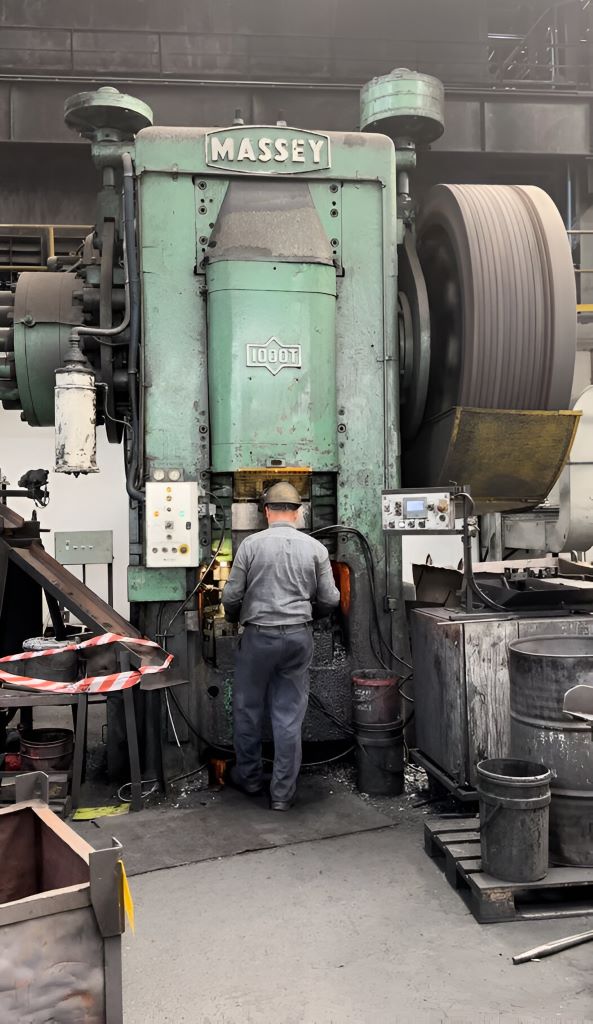

熱間鍛造プレス Massey 1000 - 1000 トン
仕様 (EN) - 熱間鍛造プレス Massey 1000 - 1000 トン (ID: 76215)
| Type | Hot forging press |
| Manufacturer | Massey |
| Model | 1000 |
| Capacity | 1000 ton |
| Stroke | 254 mm |
| Stroke per min. | 95 |
| Journal dia. | 368 mm |
| Shaft diameter at eccentric | 622 mm |
| Ram width (L to R) | 762 mm |
| Depth (F to B) | 762 mm |
| Between column (L to R) | 915 mm |
| Table to Floor | 710 mm |
| Ram to table (bottom of stroke) | 622 mm |
| Ram to Table (top of stroke) | 876 mm |
| Side opening in columns depth (F to B) | 510 mm |
| Height | 600 mm |
| Table width (L to R) | 900 mm |
| Depth (F to B) Wedge | 686 mm |
| Table adjustment | 13 mm |
| Motor rating (Continuous) | 50 kW |
| Motor speed at full load | 560 rpm |
| Supply system | 380 V, (+- 20V) 3ph, 50Hz |
| Total Height | 5030 mm |
| Above floor | 4725 mm |
| Max. Width (L to R) | 3900 mm |
| Depth (F to B) | 3050 mm |
| Floor space required | 3900 x 3000 mm |
| Approx. weight | 65 ton |
