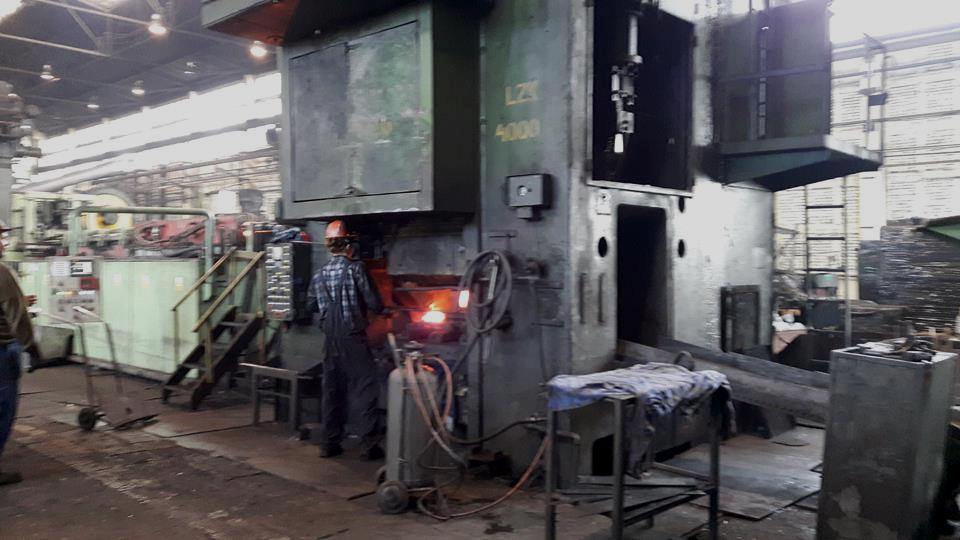

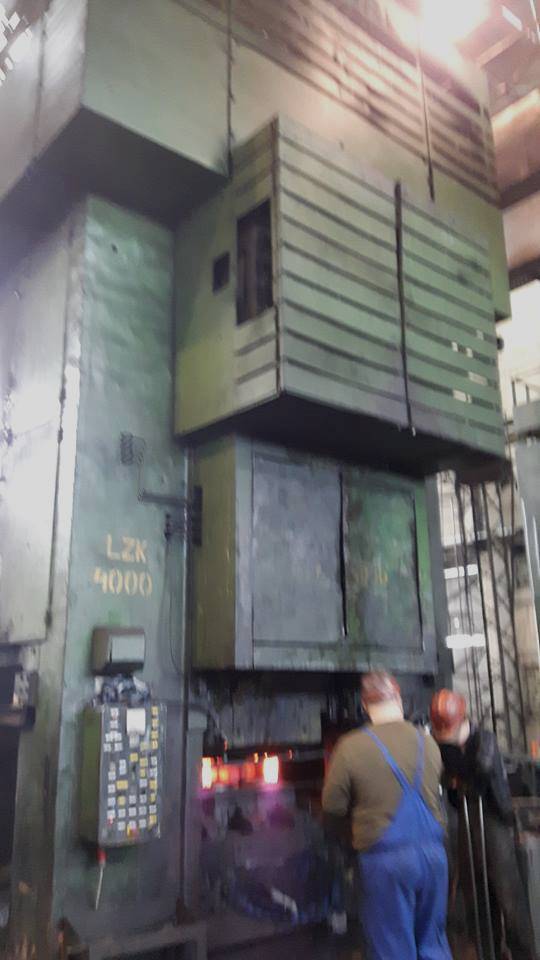

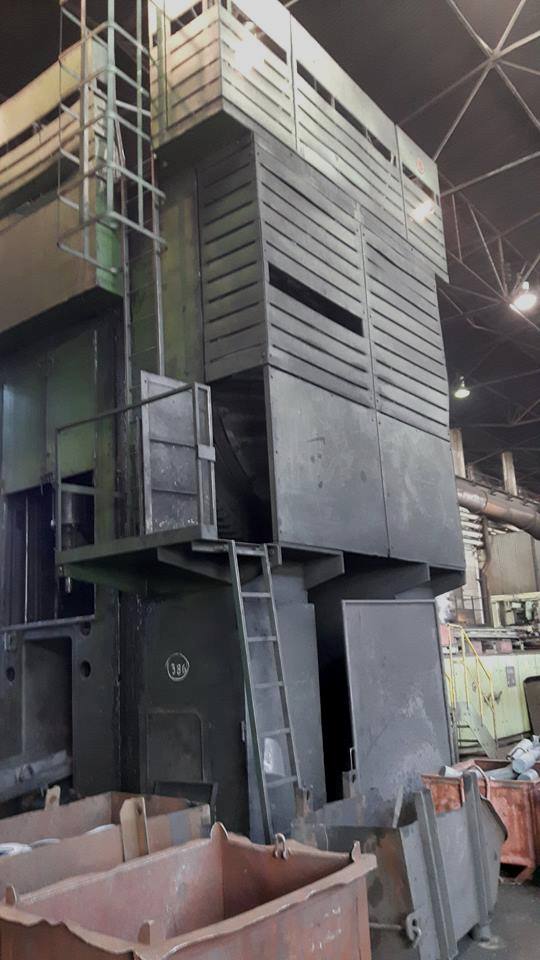

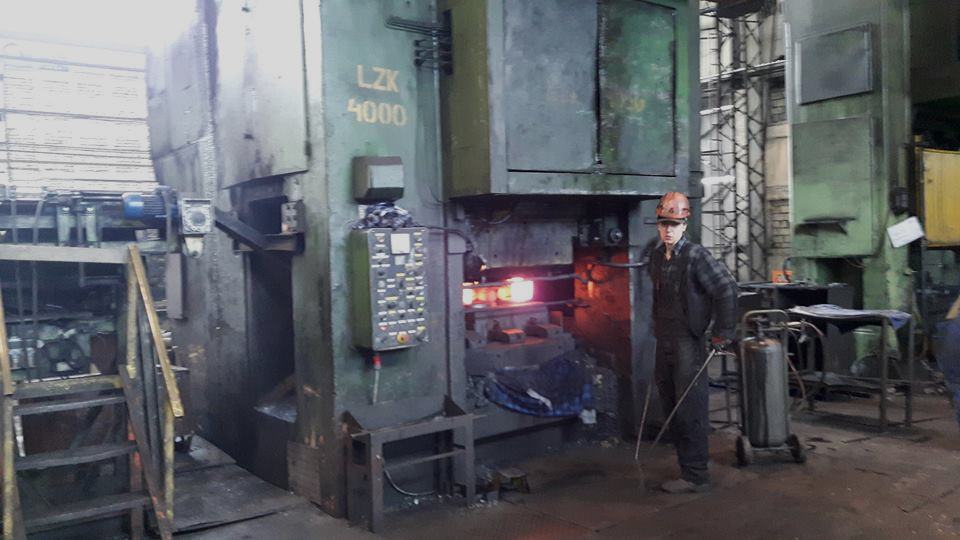

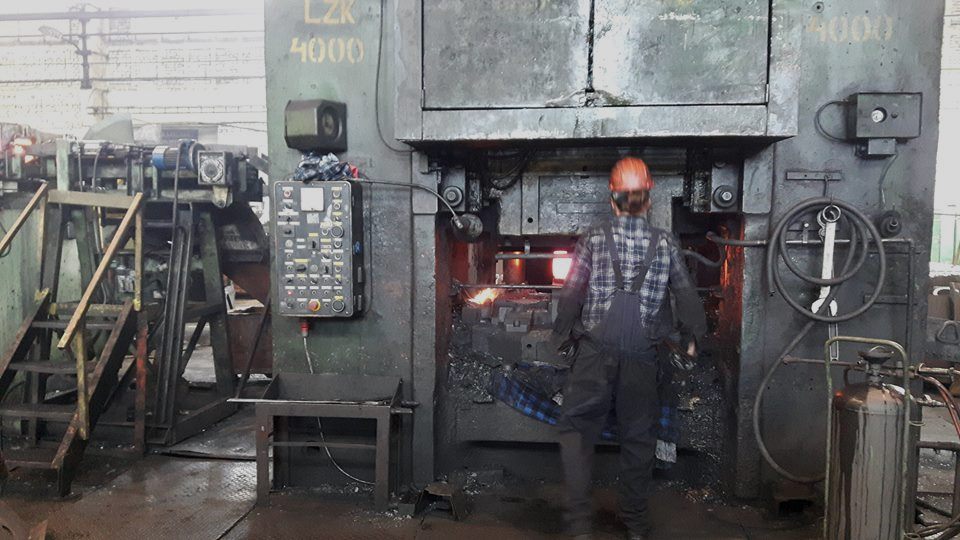

熱間鍛造プレス Smeral LZK 4000 A - 4000 トン

Dabrox 掲載 ID: 75492

このオファーに関する詳細情報のお問い合わせ：
- 在庫状況、価格
- 支払い・配送条件
- 特性、状態、写真など

* 必須項目

仕様 (EN) - 熱間鍛造プレス Smeral LZK 4000 A - 4000 トン (ID: 75492)

TypeHot forging press
ManufacturerSmeral
ModelLZK 4000 A
Rated force4000 ton
Slide stroke380 mm
Frequency of the slide strokes per min55
Max distance between slider and bed1580 mm
Width of bed under guide lines1580 mm
Bed dimensions1520 x 1600 mm
Slider dimensions1470 x 1400 mm
Slider adjustment15 mm
Quantity of used strokes per min20
Stroke of middle lower extractor
Working31 mm
Max (for die changing)41,5 mm
Stroke of upper extractor70 mm
Working air pressure6 atm
Overall air expense660 l/stroke
Water expense16 l/min
Overall width of machine4700 mm
Overall depth of machine4840 mm
Overall height of machine8690 mm
Height of machine under floor level7670 mm
Overall weight250 ton
Drive capacity200 kW
Working voltage of main drive3×380 V, 50 Hz
