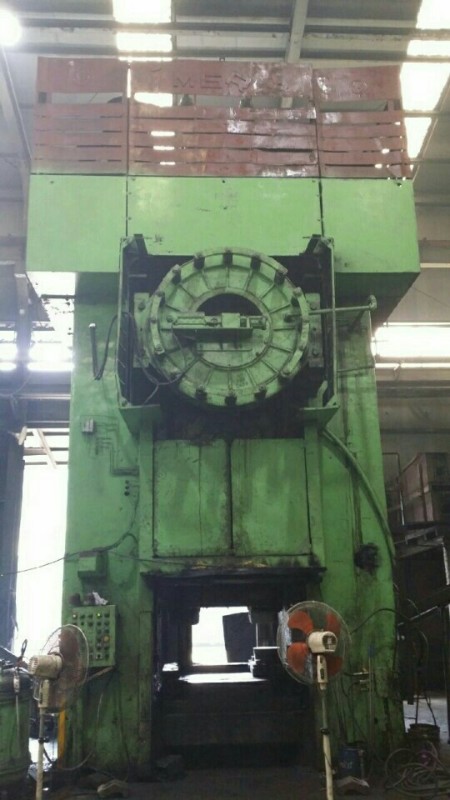

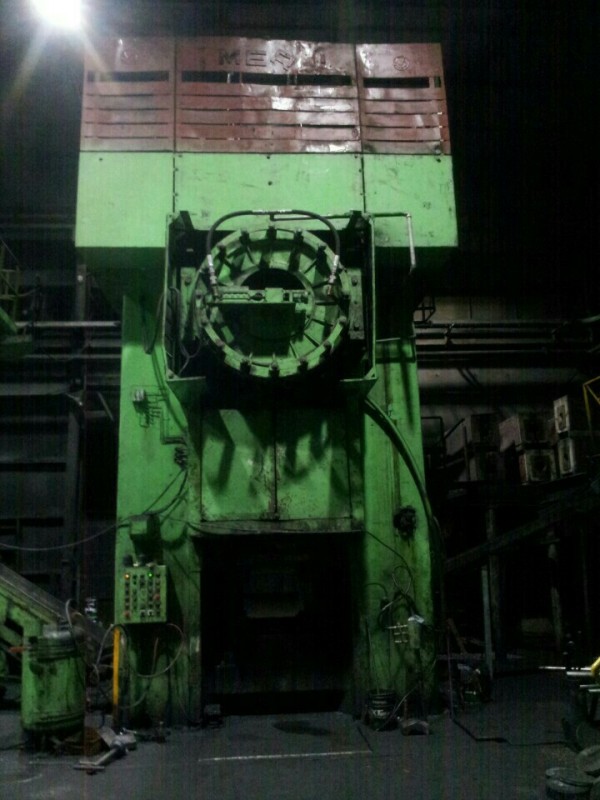

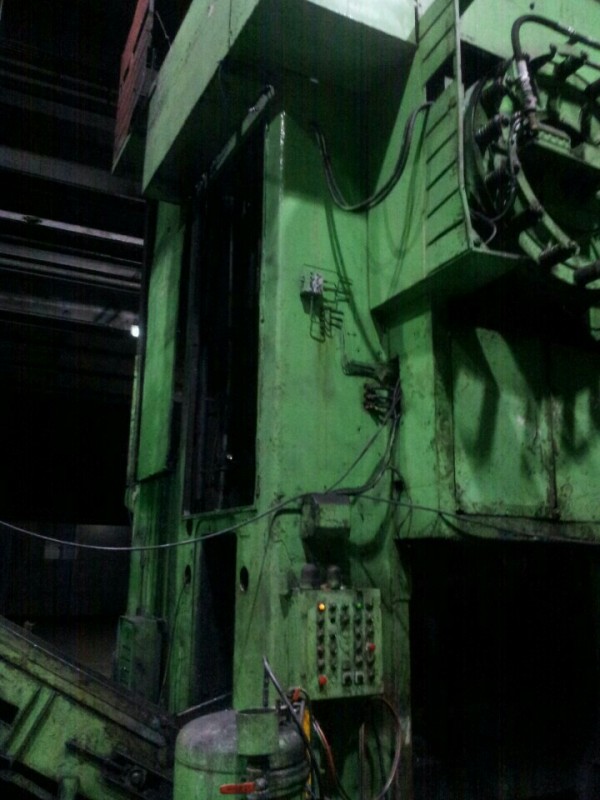

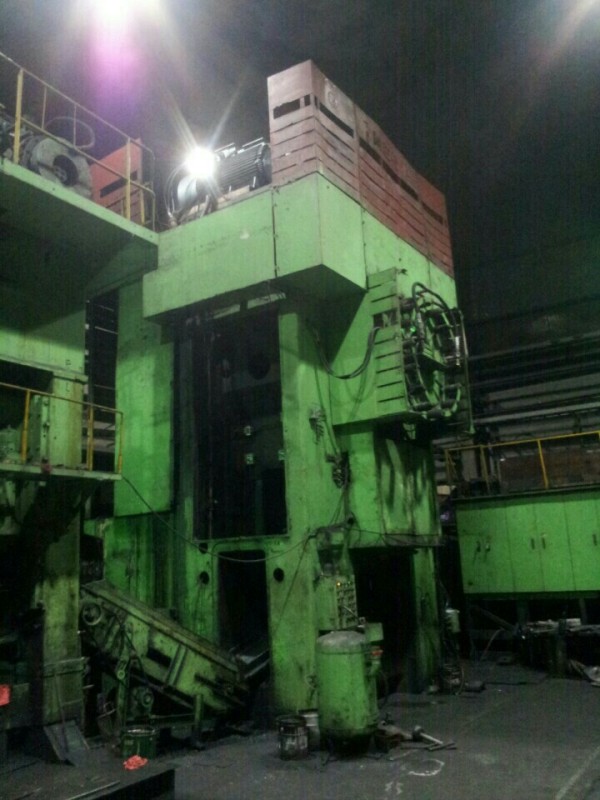

熱間鍛造プレス Smeral LZK 4000 A - 4000 トン
仕様 (EN) - 熱間鍛造プレス Smeral LZK 4000 A - 4000 トン (ID: S78504)
| Type | Hot forging press |
| Manufacturer | Smeral |
| Model | LZK 4000 A |
| Force | 4000 ton |
| Slide stroke | 380 mm |
| Frequency of the slide strokes per min | 55 |
| Shut height | 1380 mm |
| Width of bed under guide lines | 1580 mm |
| Bed dimensions | 1520×1600 mm |
| Slider dimensions | 1450×1440 mm |
| Slider adjustment | 15 mm |
| Overall width of machine | 4440 mm |
| Overall depth of machine | 4656 mm |
| Overall height of machine | 8570 mm |
| Overall weight (net) | 245 000 kg |
| Working voltage of main drive | 3×380 V |
| Frequency | 50 Hz |
| Overall used machine capacity | 200 kW |
