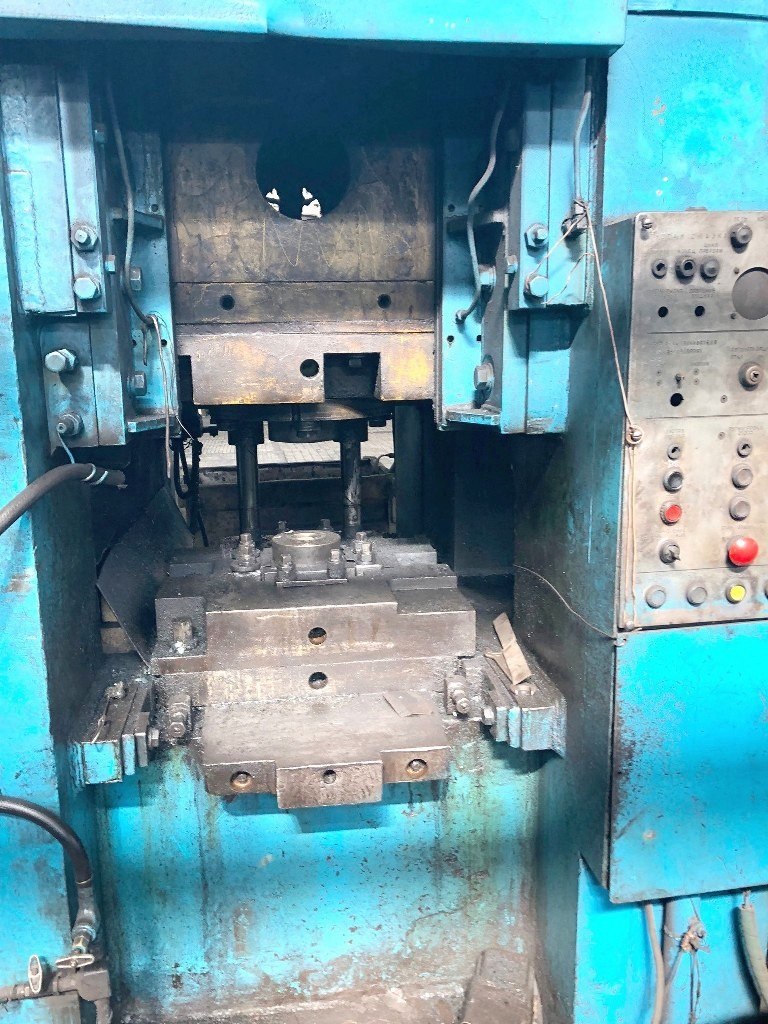

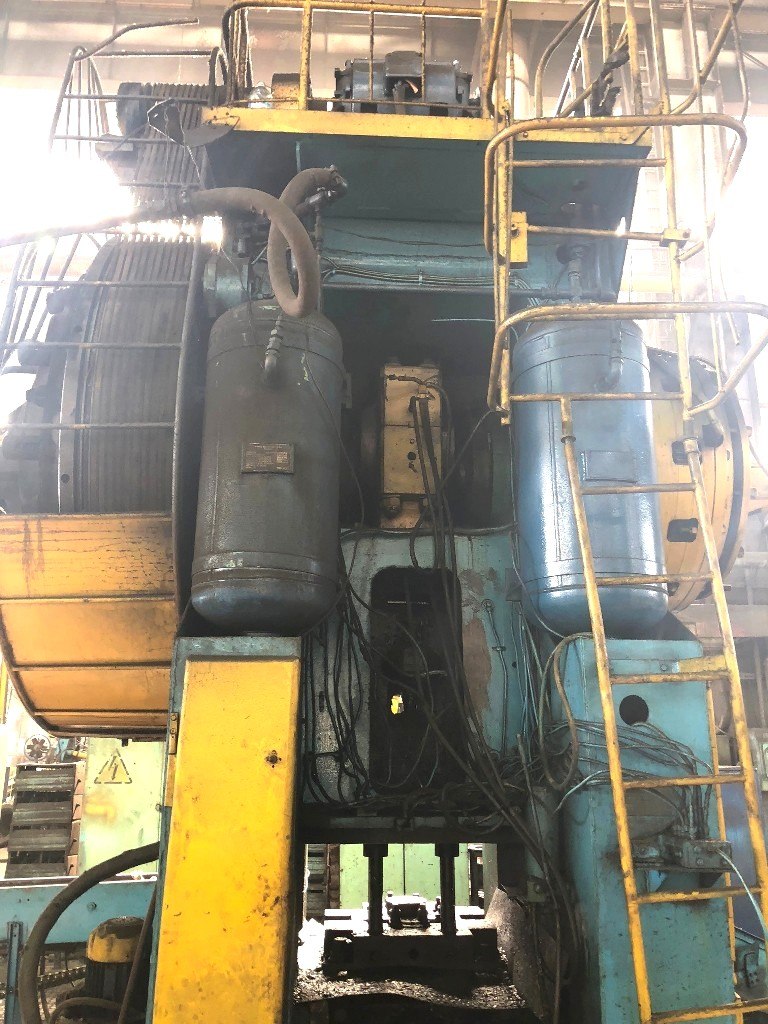

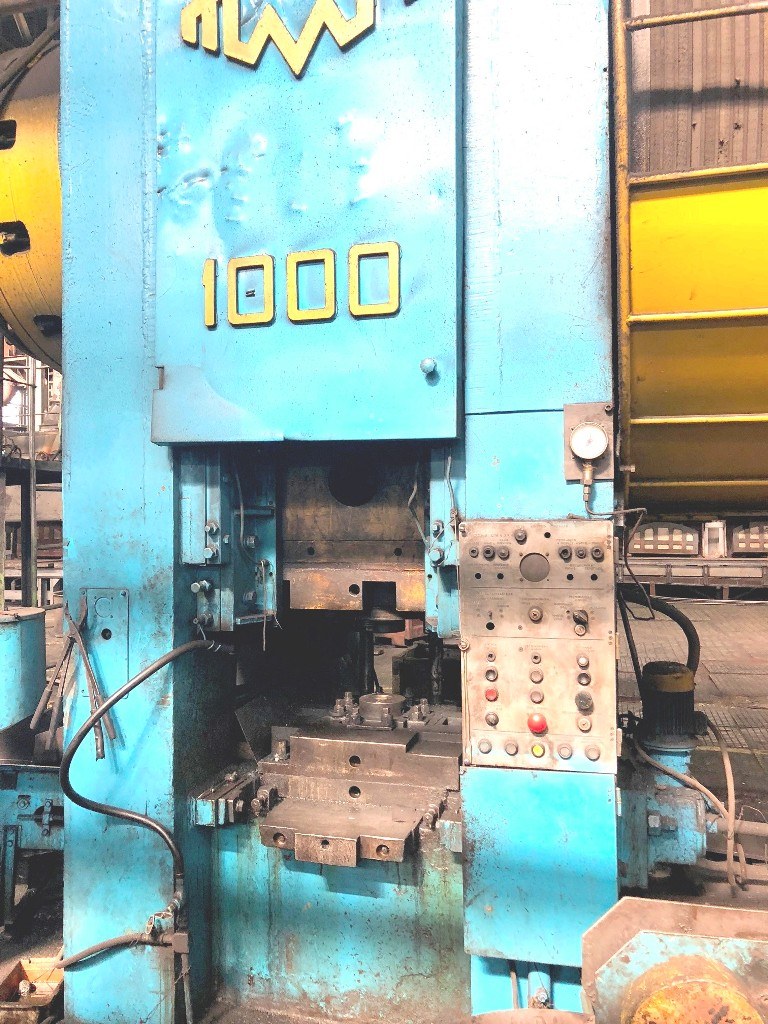

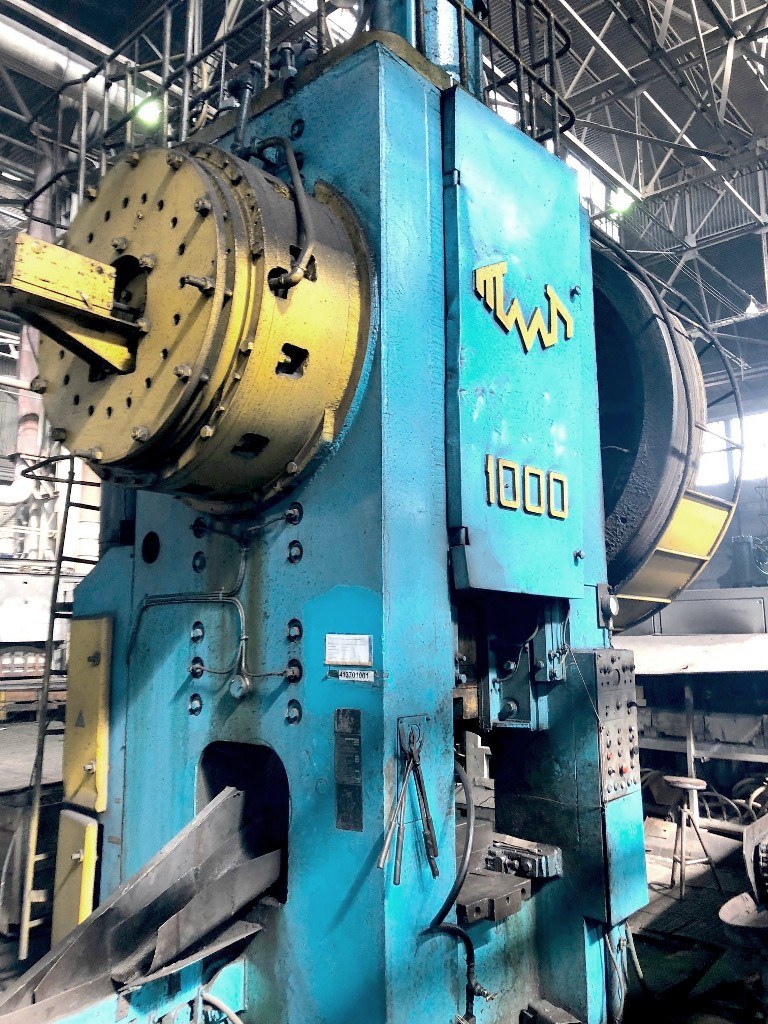

熱間鍛造プレス TMP Voronezh K04.019.840 - 1000 トン
仕様 (EN) - 熱間鍛造プレス TMP Voronezh K04.019.840 - 1000 トン (ID: 76052)
| Type | Hot forging press |
| Manufacturer | TMP Voronezh |
| Model | K04.019.840 |
| Capacity | 1000 ton |
| Slide stroke | 250 mm |
| SPM | 90 |
| Distance between | 560 mm |
| Adjustment | 20 mm |
| Upper ejector | |
| Stroke | 40 mm |
| Power | 31,5 kN |
| Bottom ejector | |
| Stroke | 40 mm |
| Power | 50 kN |
| Bed dimensions | 770 x 990 mm |
| Slide dimensions | 720 x 720 mm |
| Window size in the column | 560 x 560 mm |
| Lower extractor | 5 |
| Upper extractor | 3,15 |
| Overall dimensions | 4350 x 3500 x 5145 mm |
| Total weight | 65150 kg |
