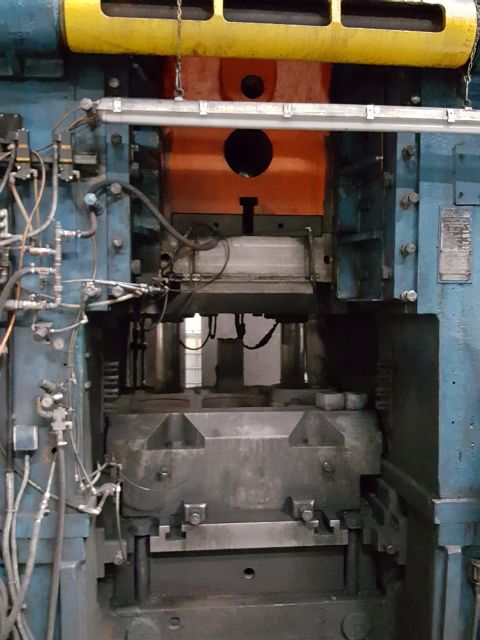

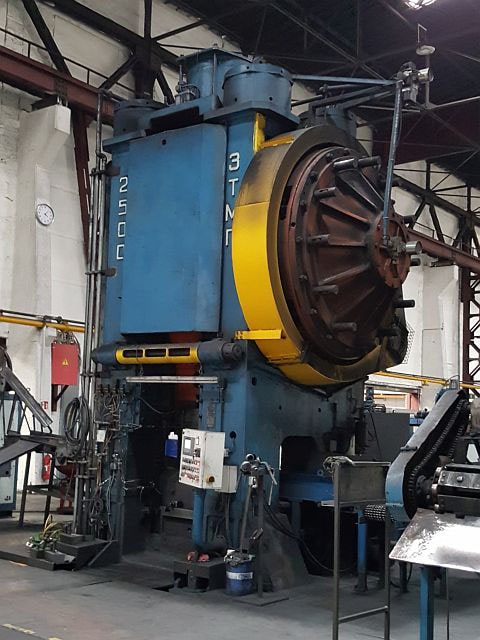

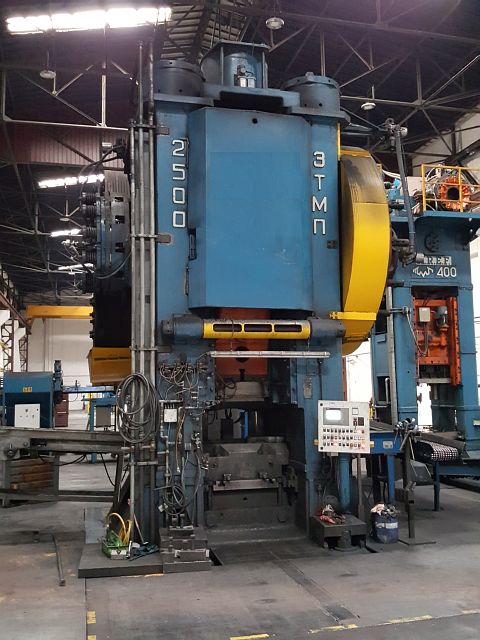

熱間鍛造プレス TMP Voronezh K8544 - 2500 トン
仕様 (EN) - 熱間鍛造プレス TMP Voronezh K8544 - 2500 トン (ID: S84368)
| Type | Hot forging press |
| Manufacturer | TMP Voronezh |
| Model | K8544 |
| Year | 1970 |
| Modernization | 2016 |
| Drive system | eccentric / crank |
| Total force (nominal) | 2500 ton |
| Table surface (left-right) | 1400 mm |
| Table surface (front-back) | 1200 mm |
| Table surface (left-right) | 1120 mm |
| Table surface (front-back) | 1070 mm |
| Stroke | 350 mm |
| Stroke rate (max.) | 60 /min |
| Slide adjustment | 10 mm |
| Shut height (stroke down, adjustment up), BDC | 900 mm |
| Passline opening (free passage in side columns) | 720 mm |
| Free passage between side columns (height) | 890 mm |
| Mains voltage | 380 V |
| Mains frequency | 50 Hz |
| Total height | 8250 mm |
| Height above floor level | 6400 mm |
| Total weight approx. | 198000 kg |
