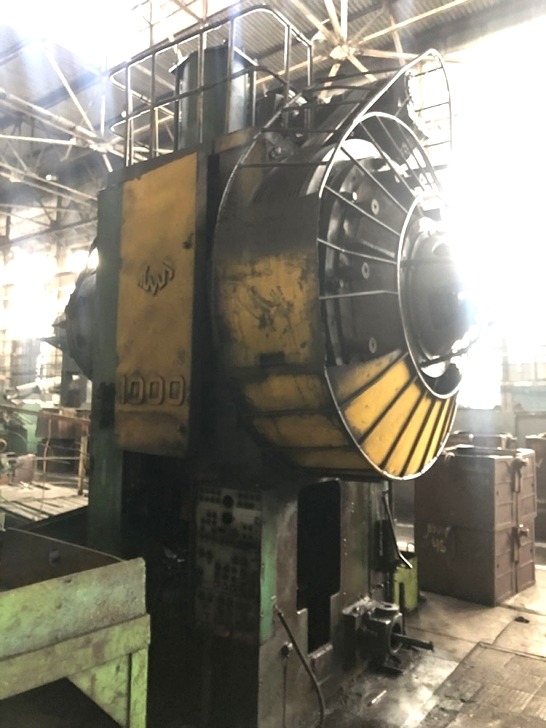

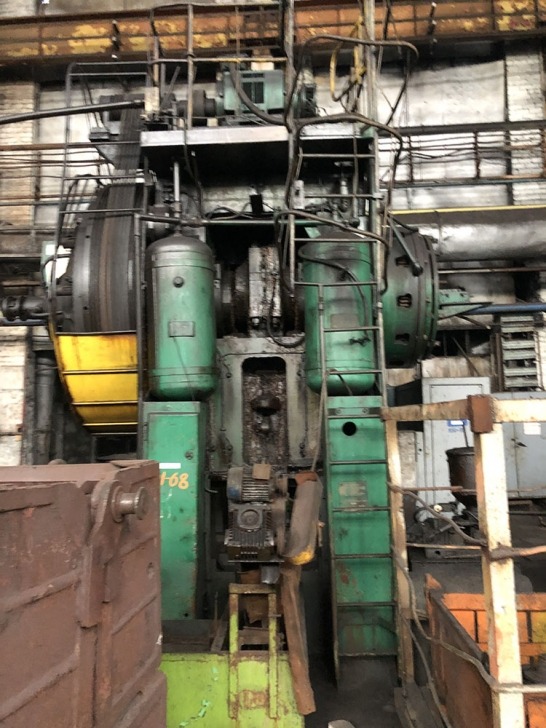

熱間鍛造プレス TMP Voronezh KB8040 - 1000 トン

Dabrox 掲載 ID: 75468

このオファーに関する詳細情報のお問い合わせ：
- 在庫状況、価格
- 支払い・配送条件
- 特性、状態、写真など

* 必須項目

仕様 (EN) - 熱間鍛造プレス TMP Voronezh KB8040 - 1000 トン (ID: 75468)

TypeHot forging press
ManufacturerTMP Voronezh
ModelKB8040
Capacity1000 tons
Slide stroke250 mm
Frequency of slide strokes90/1 min
Distance between table and punch plate of
slider in case of upper table location		580 mm
Adjustment of distance between table and slider20 mm
Upper ejector
Stroke40 mm
Power31,5 kN
Bottom ejector
Stroke30 mm
Power50 kN
Bed dimensions770 x 990 mm
Slide dimensions720 x 720 mm
Window size in the column1250 x 560 mm
Lower extractor5
Upper extractor3,15
Overall dimensions4430×3500 x 5145 mm
Total weight65700 kg
