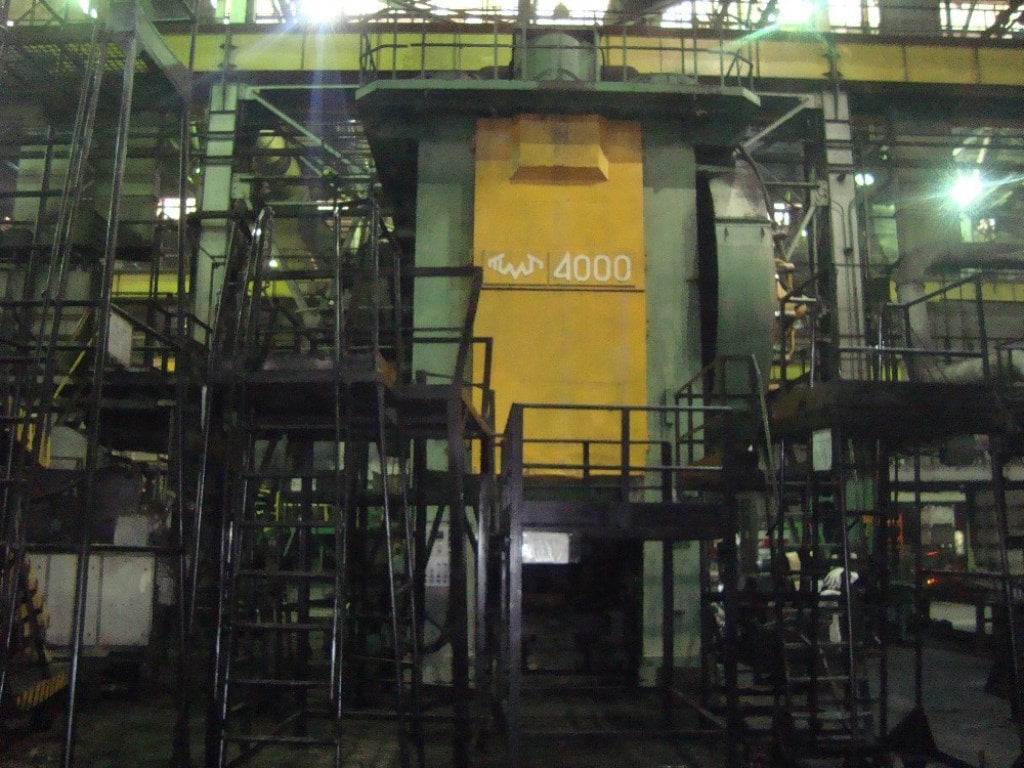

熱間鍛造プレス TMP Voronezh KB8046 - 4000 トン

Dabrox 掲載 ID: S80026

このオファーに関する詳細情報のお問い合わせ：
- 在庫状況、価格
- 支払い・配送条件
- 特性、状態、写真など

* 必須項目

仕様 (EN) - 熱間鍛造プレス TMP Voronezh KB8046 - 4000 トン (ID: S80026)

TypeHot forging press
ManufacturerTMP Voronezh
ModelKB8046
Nominal pressing force4000 ton
Slide stroke400 mm
Slide stroke number in 1 min50
Adjustment stroke10 mm
Max distance between table and slider (in lower position of slider)1200 mm
Table size
From left to right1710 mm
From front to rear1620 mm
Slide dimensions
From left to right1470 mm
From front to rear2000 mm
Window size in the column
Height1100 mm
Width1040 mm
Main motor power160 kW
Press dimensions
Length6628 mm
Width5700 mm
Height7830 mm
Total weight366583 kg
