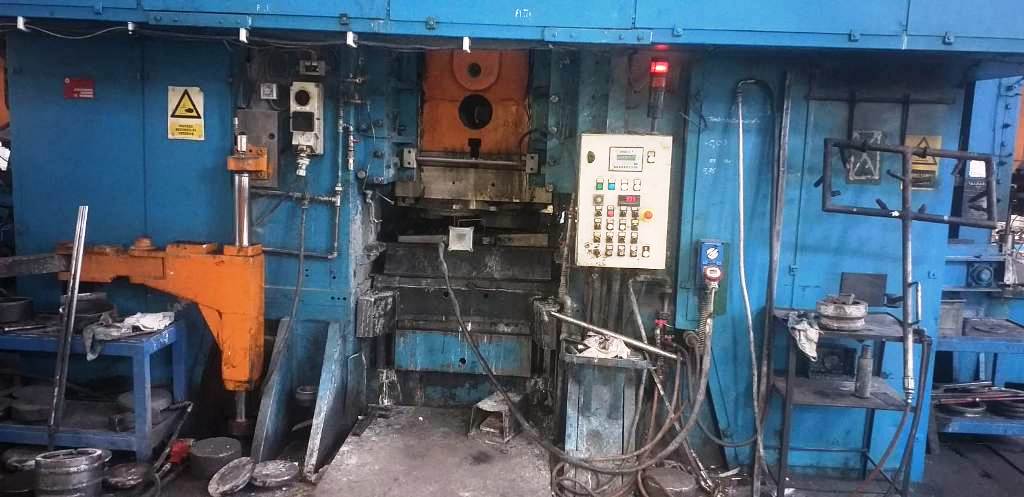

熱間鍛造プレス TMP Voronezh KB8542 - 1600 トン

Dabrox 掲載 ID: 75771

このオファーに関する詳細情報のお問い合わせ：
- 在庫状況、価格
- 支払い・配送条件
- 特性、状態、写真など

* 必須項目

仕様 (EN) - 熱間鍛造プレス TMP Voronezh KB8542 - 1600 トン (ID: 75771)

TypeHot forging press
ManufacturerTMP Voronezh
ModelKB8542
Made inRussia
Capacity1600 tons
Slide stroke300 mm
Slide stroke length at maximum force0,16 mm
Distance adjustment between table and slider10 mm
Slide stroke number in 1 min75
Length of a rod920 mm
The closed height (the least distance between a table and a slider in its bottom position)660 mm
Table overall dimensions940 x 1200 mm
Table height above floor level450 mm
Slide overall dimensions860×910 mm
The size of lateral windows
Height560 mm
Width600 mm
Main motor110 kW
Press overall dimensions
Length5060 mm
Width3940 mm
Height above floor level5125 mm
Press weight120 tons

ビデオ - 熱間鍛造プレス TMP Voronezh KB8542 - 1600 トン (ID: 75771)
