油圧鍛造ハンマー Beche KGH 1.6 - 16 kJ

Dabrox 掲載 ID: 76505

このオファーに関する詳細情報のお問い合わせ：
- 在庫状況、価格
- 支払い・配送条件
- 特性、状態、写真など

* 必須項目

仕様 (EN) -

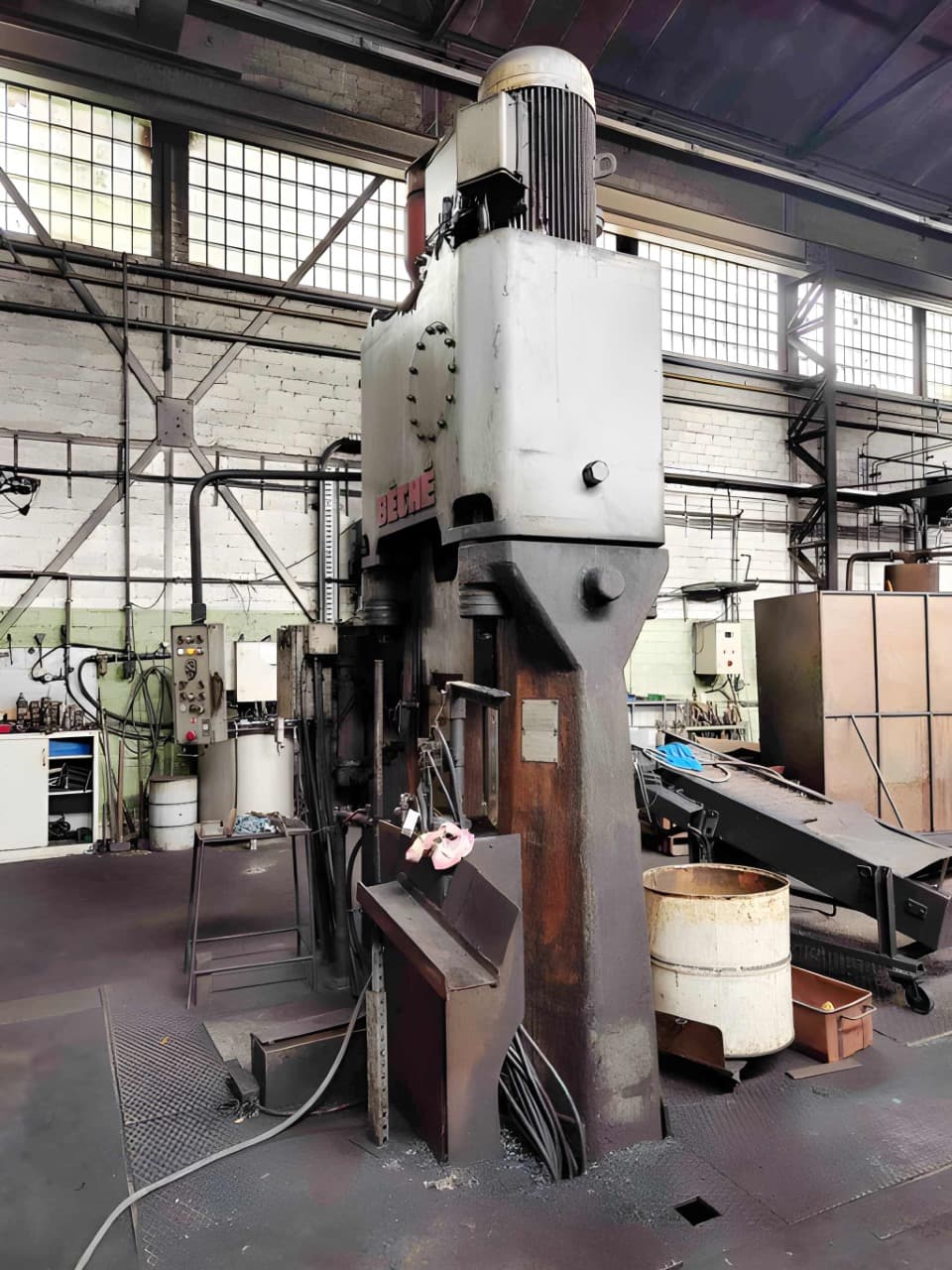

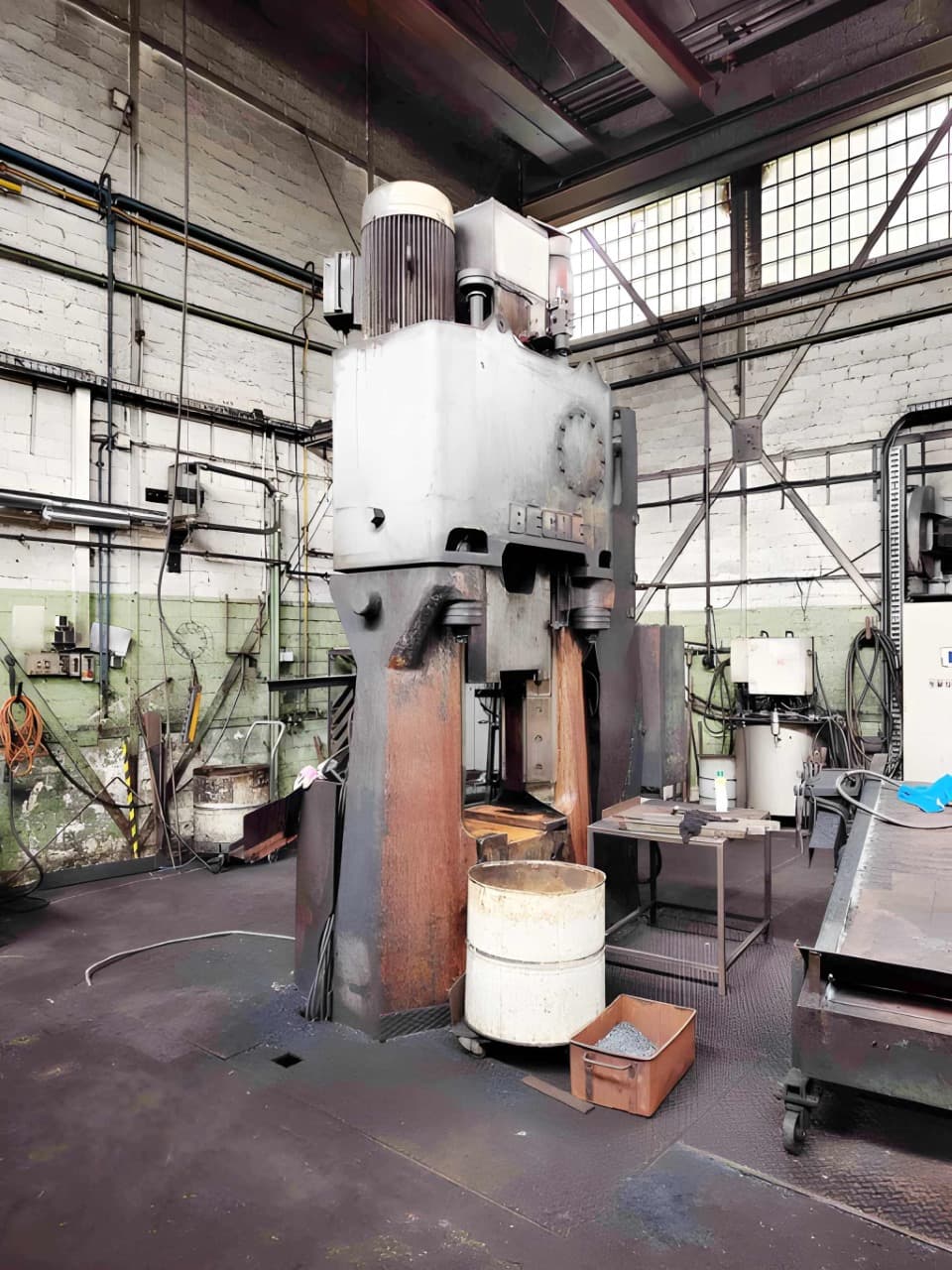

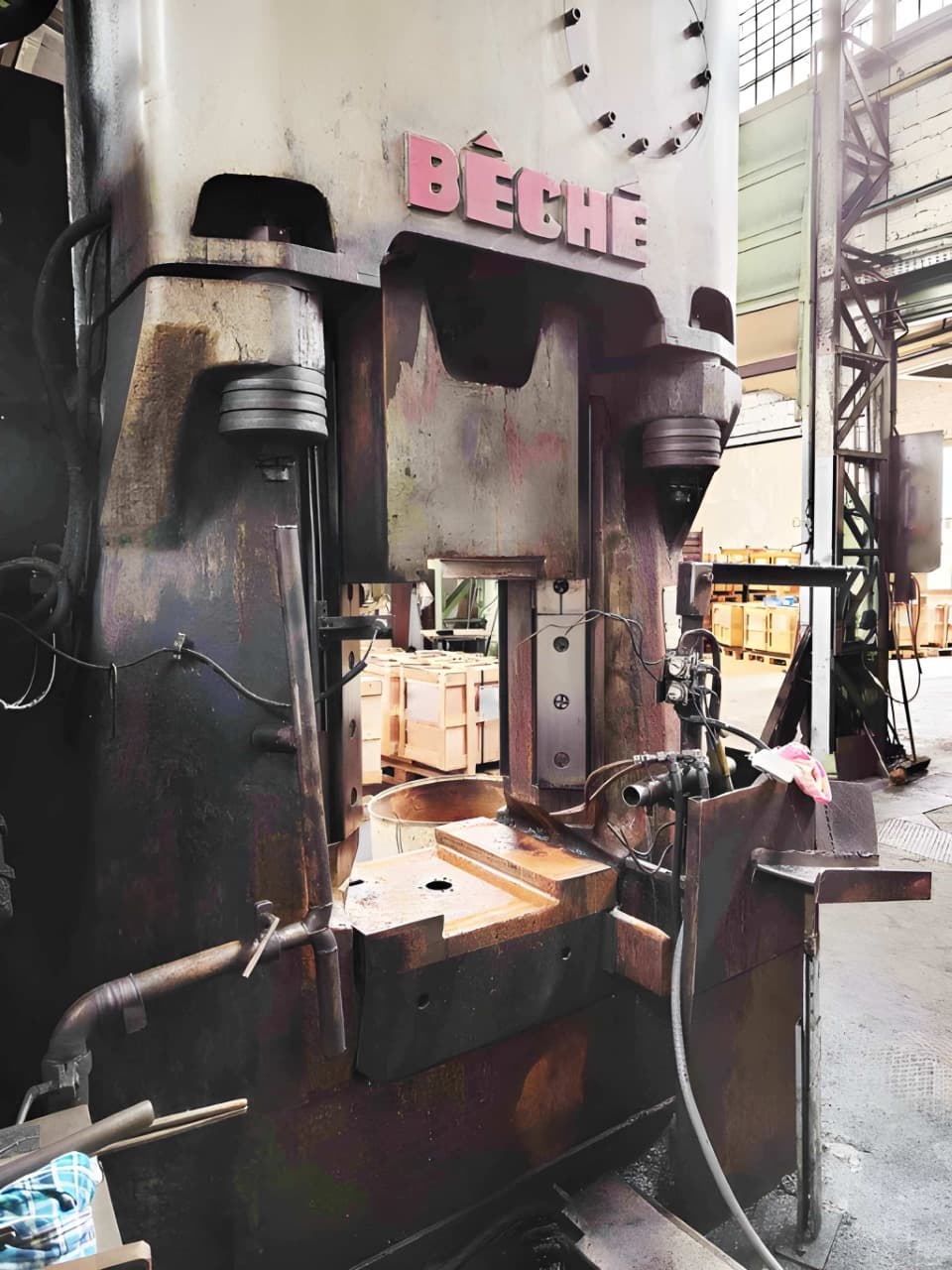

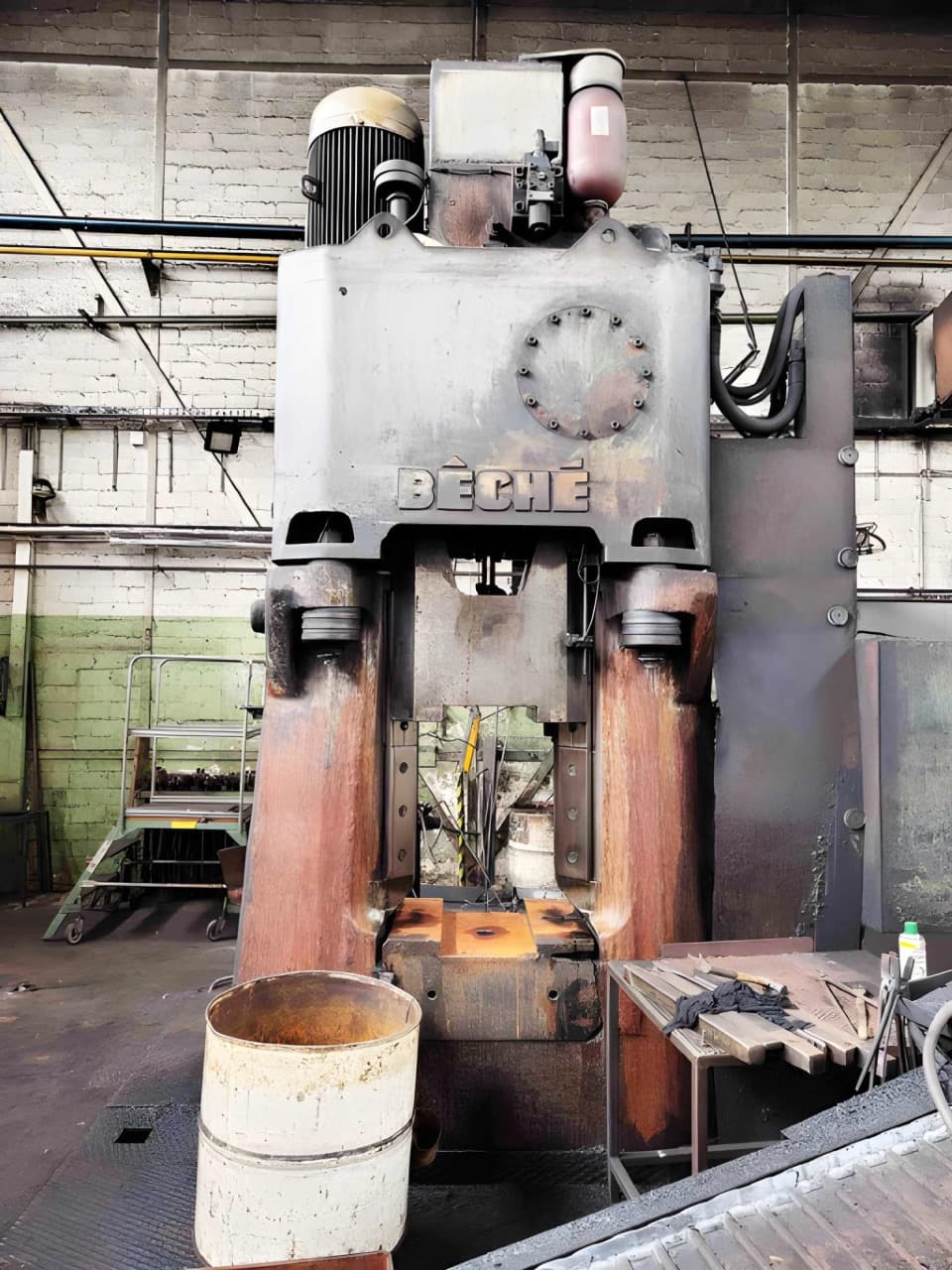

油圧鍛造ハンマー Beche KGH 1.6 - 16 kJ (ID: 76505)

TypeHydraulic forging hammer
ManufacturerBeche
ModelKGH 1.6
Impact energy16 kJ
BPM continuous at full load32–38
BPM max122
Final ram velocity5,1 m/s
Main drive pump flow rate187,5 l/min
Circulation pump flow rate120 l/min
Oil capacity in drive head550 l
Clear width between guides520 mm
Working height to upper edge of insert750 mm
Ram depth470 mm
Insertion depth550 mm
Die height minimum120 mm
Die height maximum320 mm
Overall dimensions1485 x 825 x 4552 mm
Foundation dimensions3350 x 3300 mm
Total weight23200 kg
