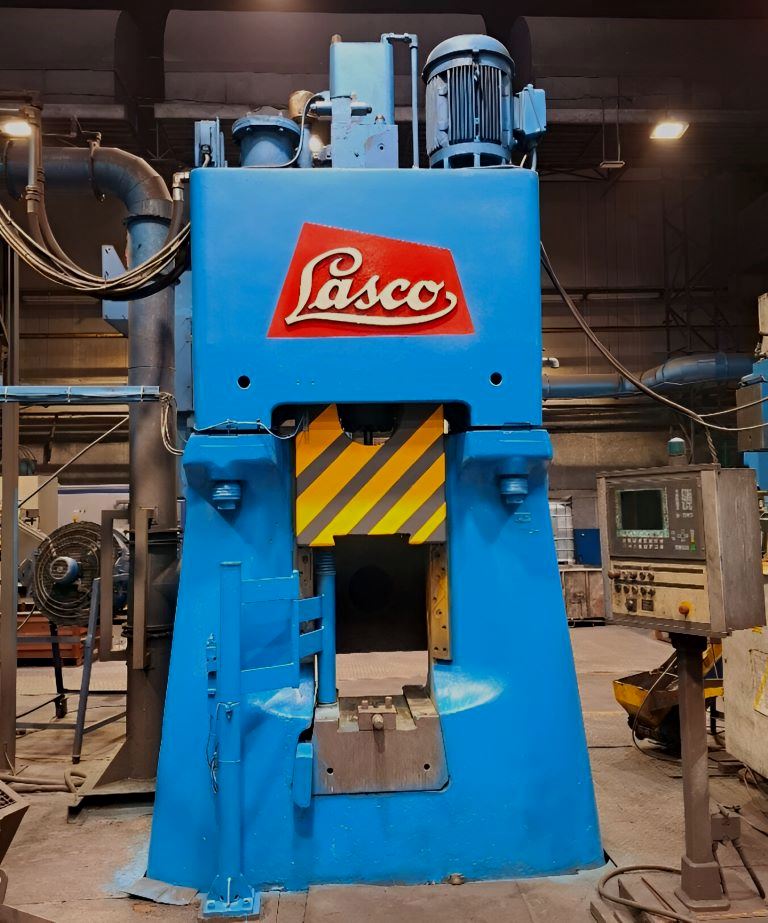

油圧鍛造ハンマー Lasco HO-U 160 - 16 kJ
仕様 (EN) -
油圧鍛造ハンマー Lasco HO-U 160 - 16 kJ (ID: 76294)
| Type | Hydraulic forging hammer |
| Manufacturer | Lasco |
| Model | HO-U 160 |
| Weight of the ram | 1250 kg |
| Impact energy | 16 kJ |
| Max. impact frequency | 100/min |
| Min. stroke of the ram | 480 mm |
| Max. stroke of the ram | 640 mm |
| Depth of the ram | 460 mm |
| Ejector force | 50 kN |
| Ejector stroke | 50 mm |
| Main engine power | 37 kW |
| Total height | 4750 mm |
| Height of the hammer above floor | 4050 mm |
| Weight of the shabot | 24 000 kg |
| Total weight | 33.5 ton |
