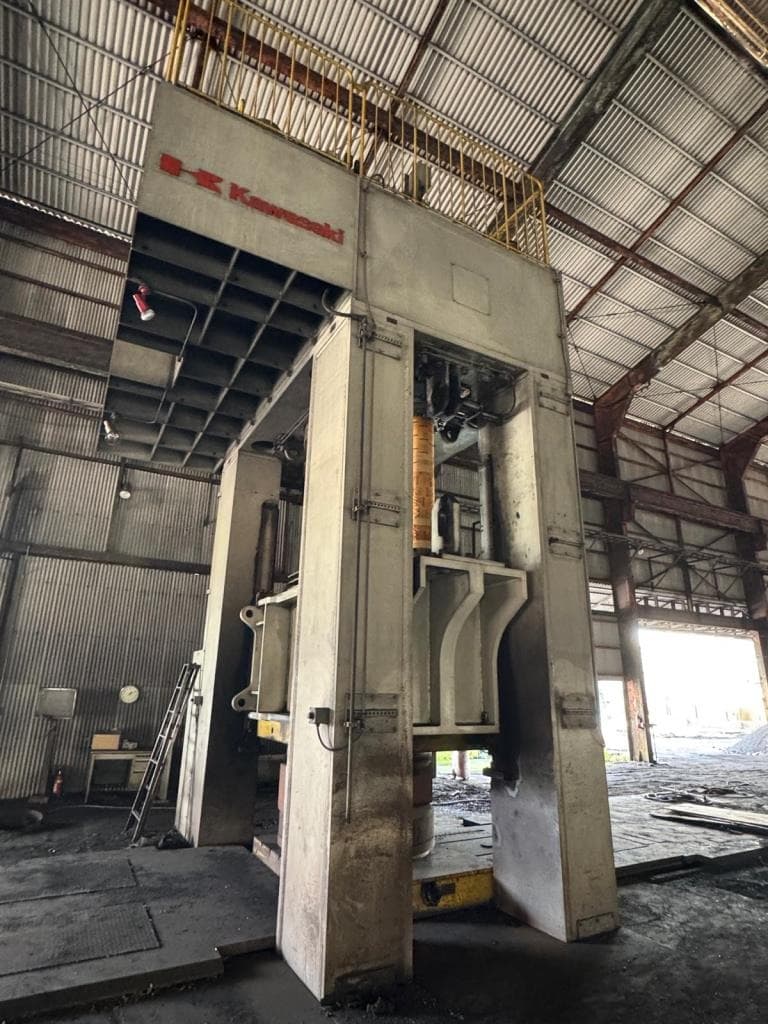

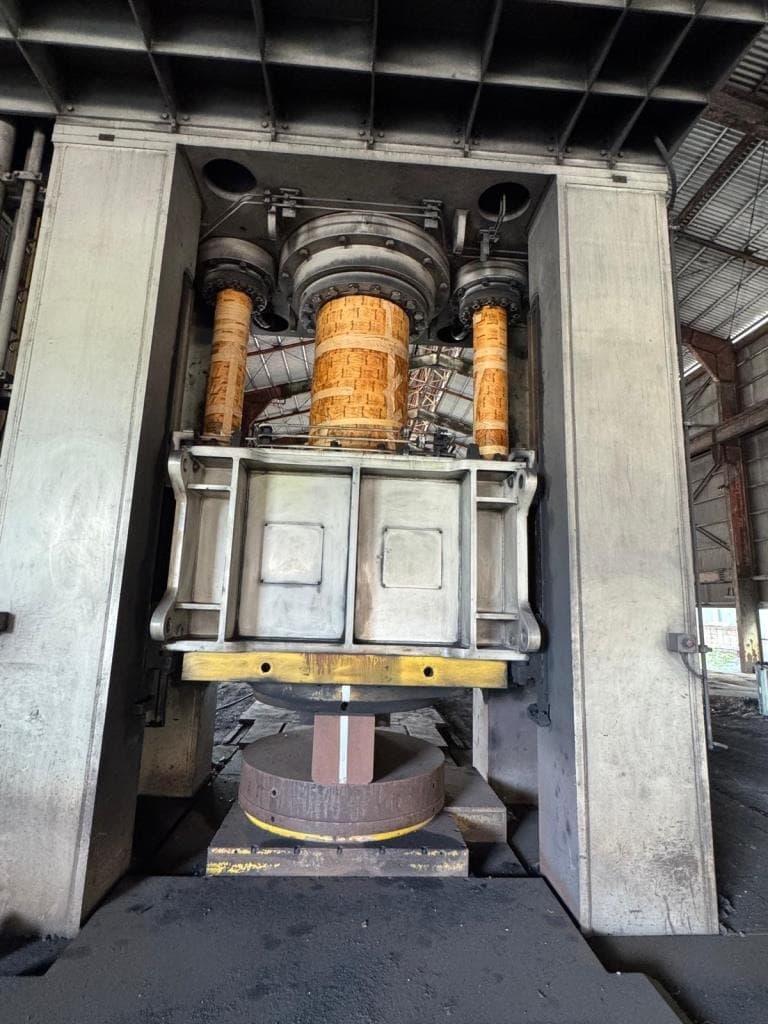

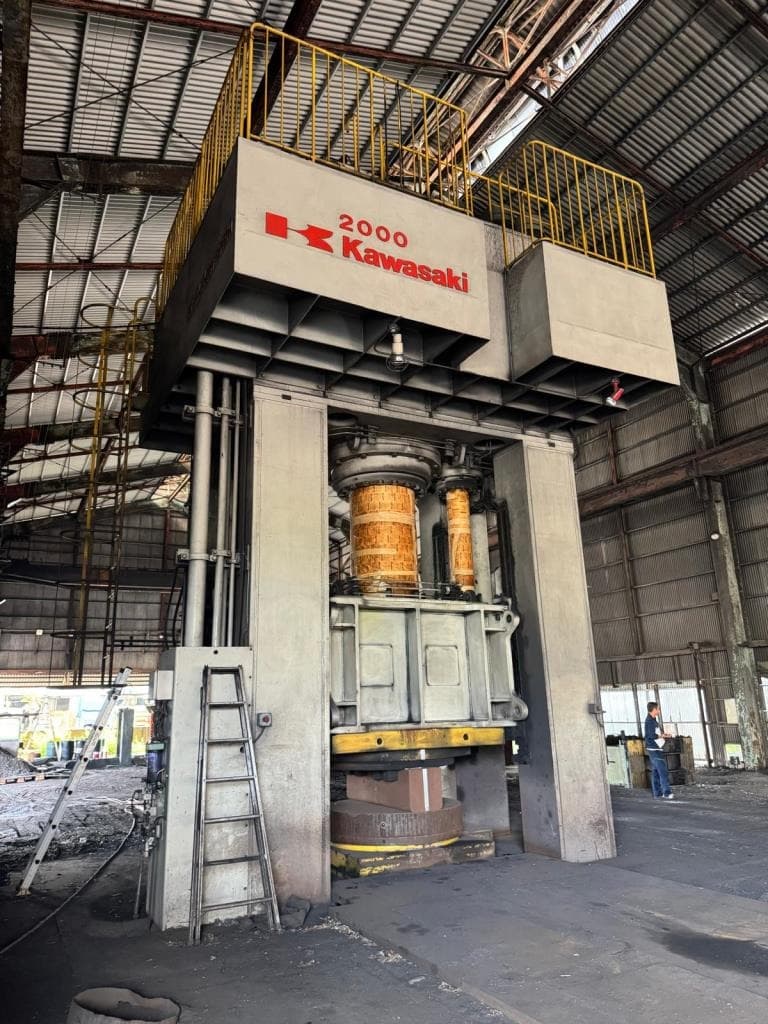

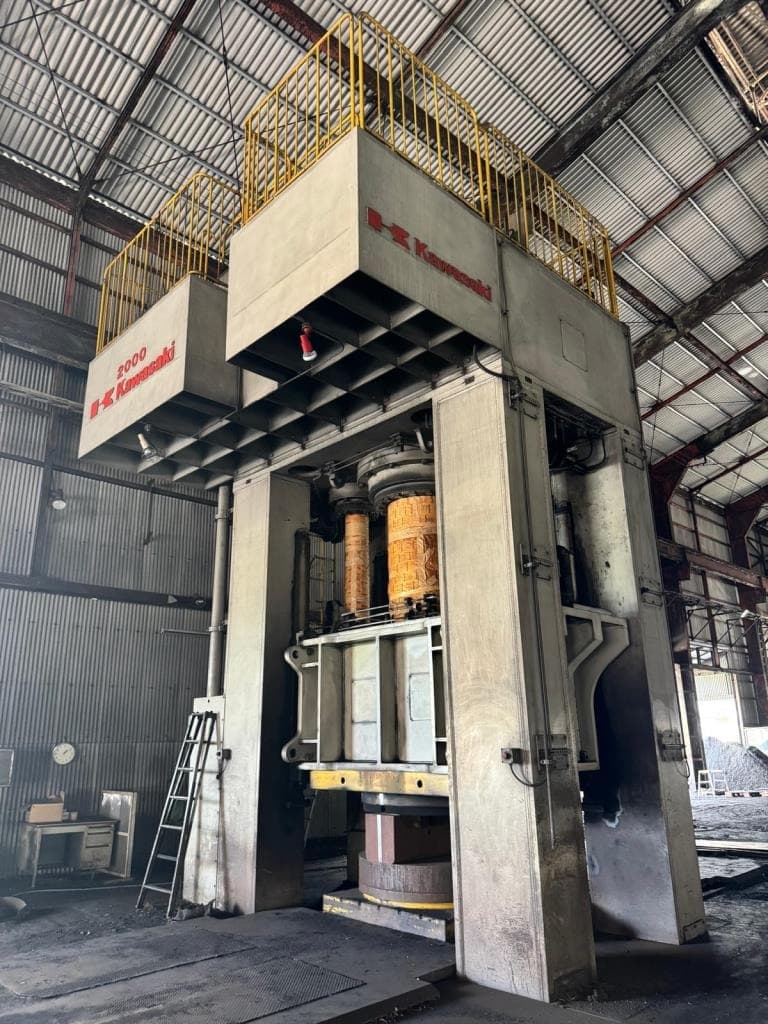

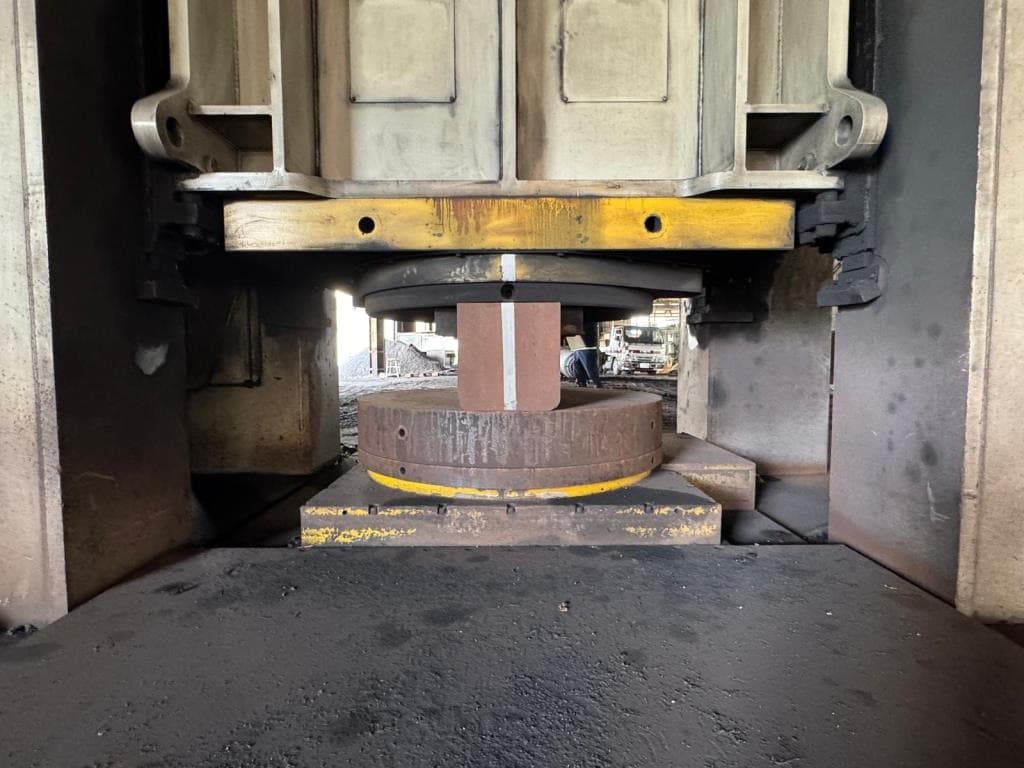

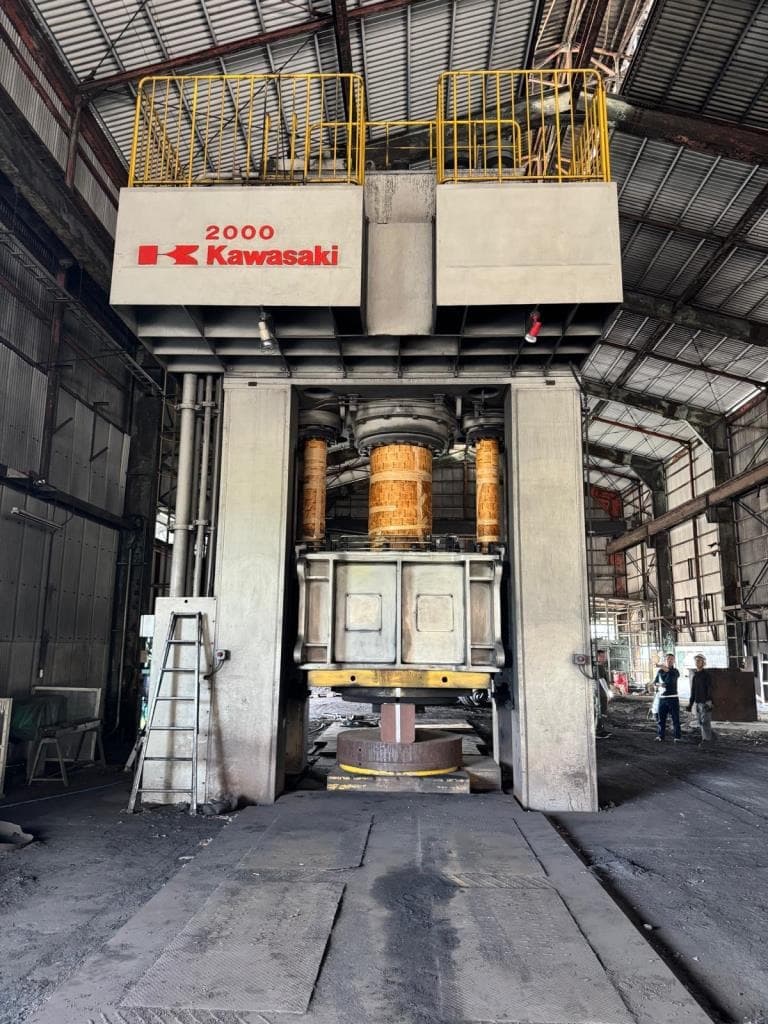

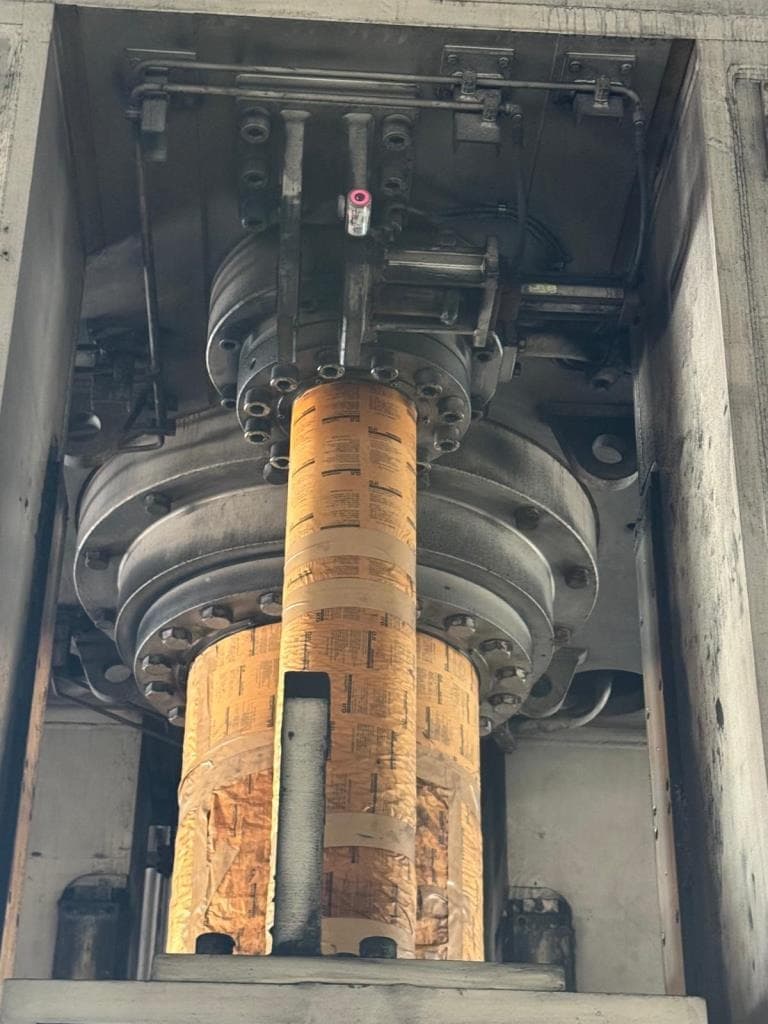

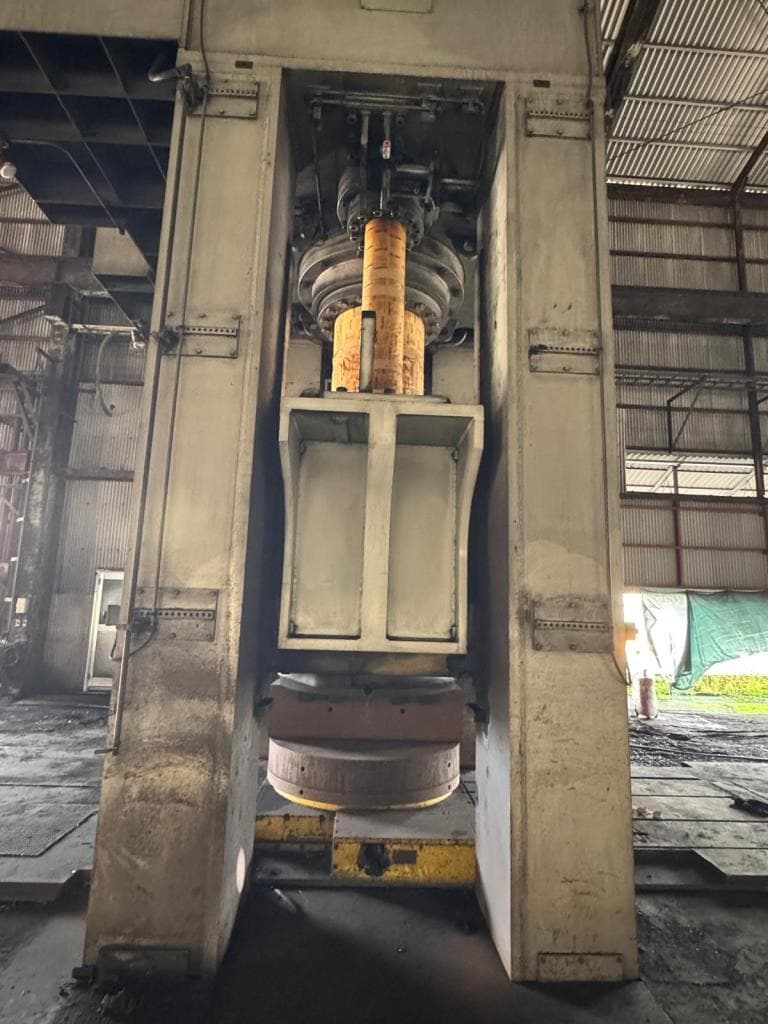

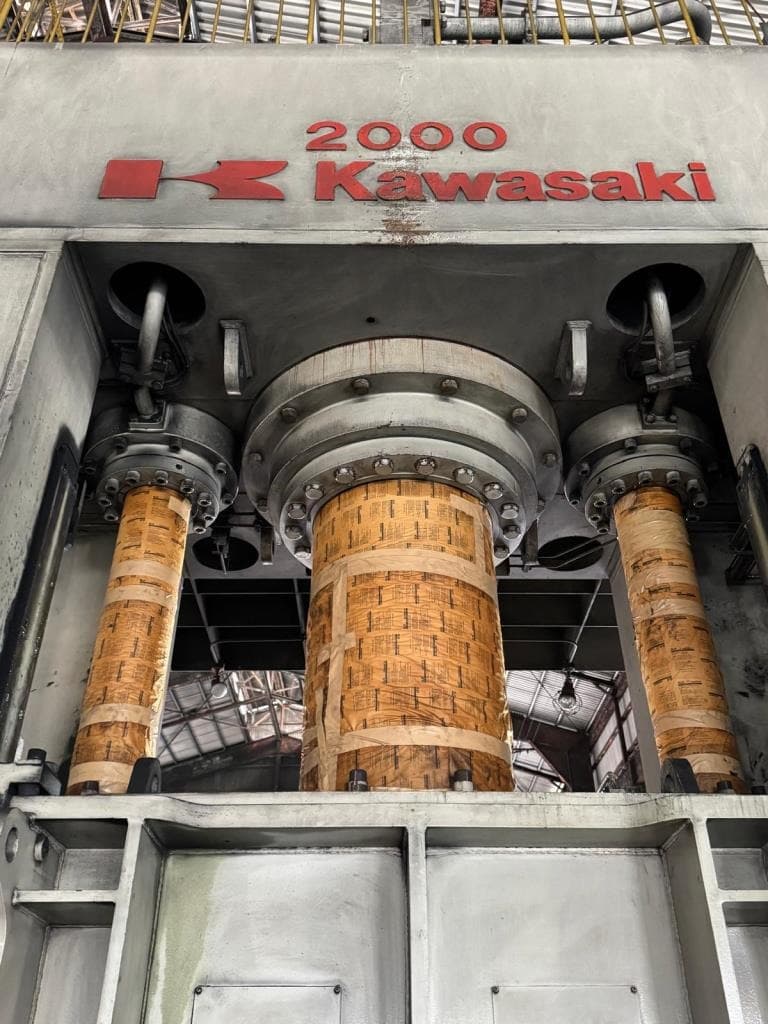

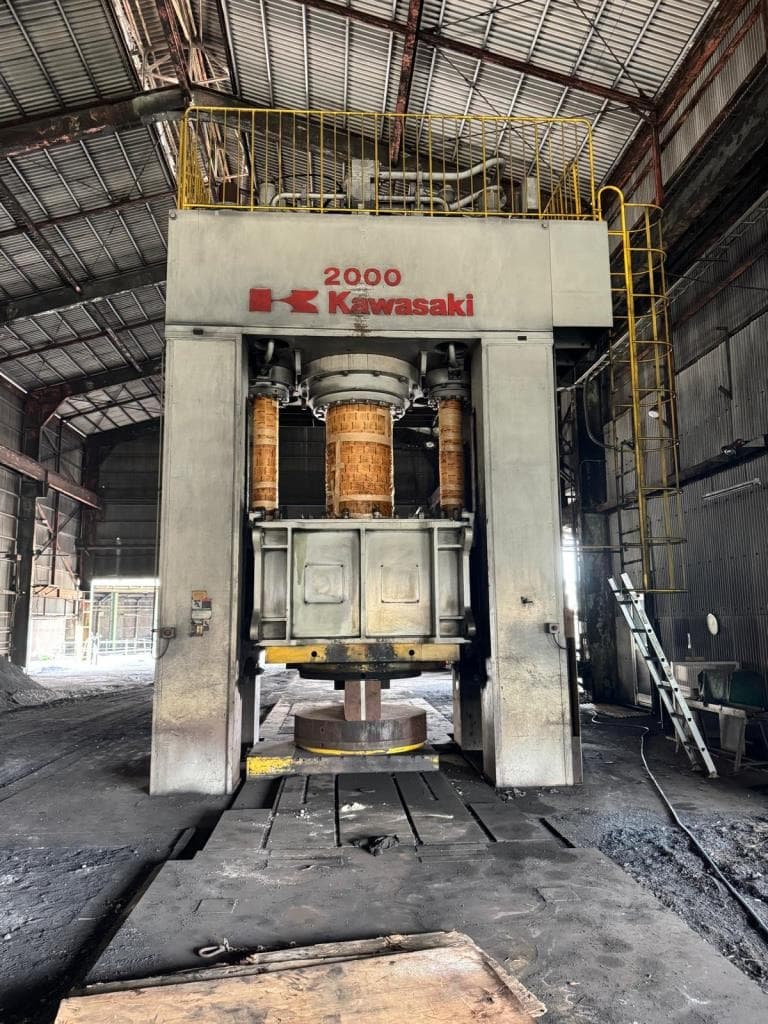

自由鍛造プレス Kawasaki 2000 MT - 2000 トン
仕様 (EN) -
自由鍛造プレス Kawasaki 2000 MT - 2000 トン (ID: 76450)
| Type | Open die forging press |
| Manufacturer | Kawasaki |
| Model | 2000 MT |
| Year of manufacture | 2013 |
| Capacity | 2000 ton |
| Stroke length | 1300 mm |
| Daylight | 1900 mm |
| Bolster dimension(left to right x frontt to back) | 1650 x 2400 mm |
| Slide dimension(left to right x frontt to back) | 1650 x 1500 mm |
| Frame effective opening size | 2550 x 1200 mm |
| No load descending speed | 300 mm |
| Pressure speed low power | 45~30 mm/s |
| High output | 30~23 mm/s |
| Climp speed | 300 mm/s |
| Loading mass | 20 ton |
| Transfer stroke | 2500 mm |
| Transfer speed | 200 mm/s |
| Sudden stop time | 240 ms |
