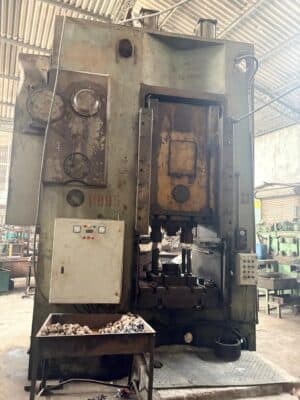

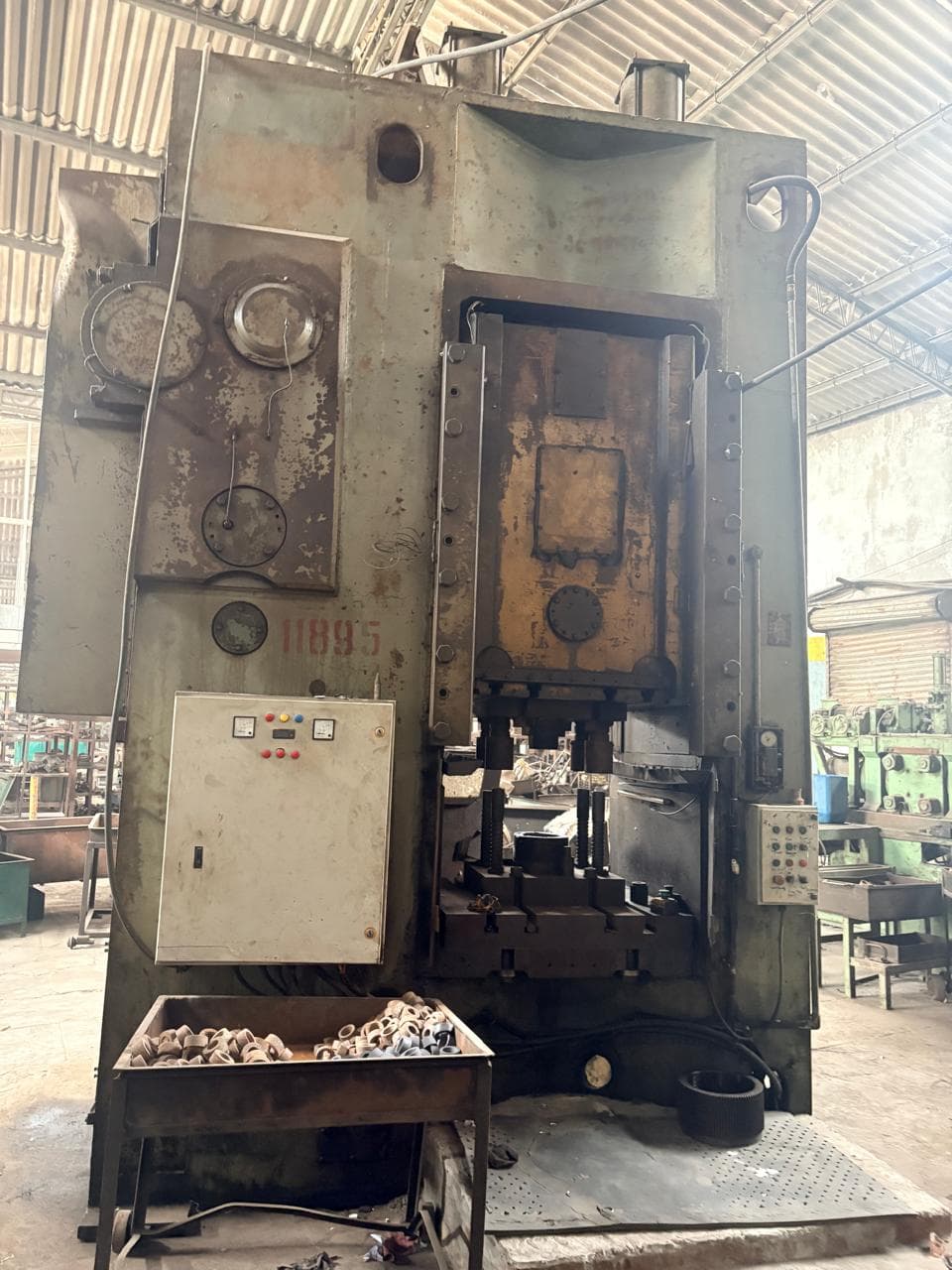

冷間押出プレス Barnaul KB0036 - 400 トン
仕様 (EN) -
冷間押出プレス Barnaul KB0036 - 400 トン (ID: 76476)
| Type | Cold extrusion press |
| Manufacturer | Barnaul |
| Model | KB0036 |
| Rated capacity on the slide | 400 ton |
| Slide stroke | 240 mm |
| Frequency of the continuous strokes of the slide | 32/1 min |
| Max. single-stroke engagements | 16/1 min |
| Adjustment of the tool’s height | 16 mm |
| Maximum tools shut-height | 590 mm |
| Dimensions of the bolster plate | |
| Left-to-right | 1000 mm |
| Front-to-back | 1000 mm |
| Overall dimensions | 3175 x 2260 x 4970 mm |
