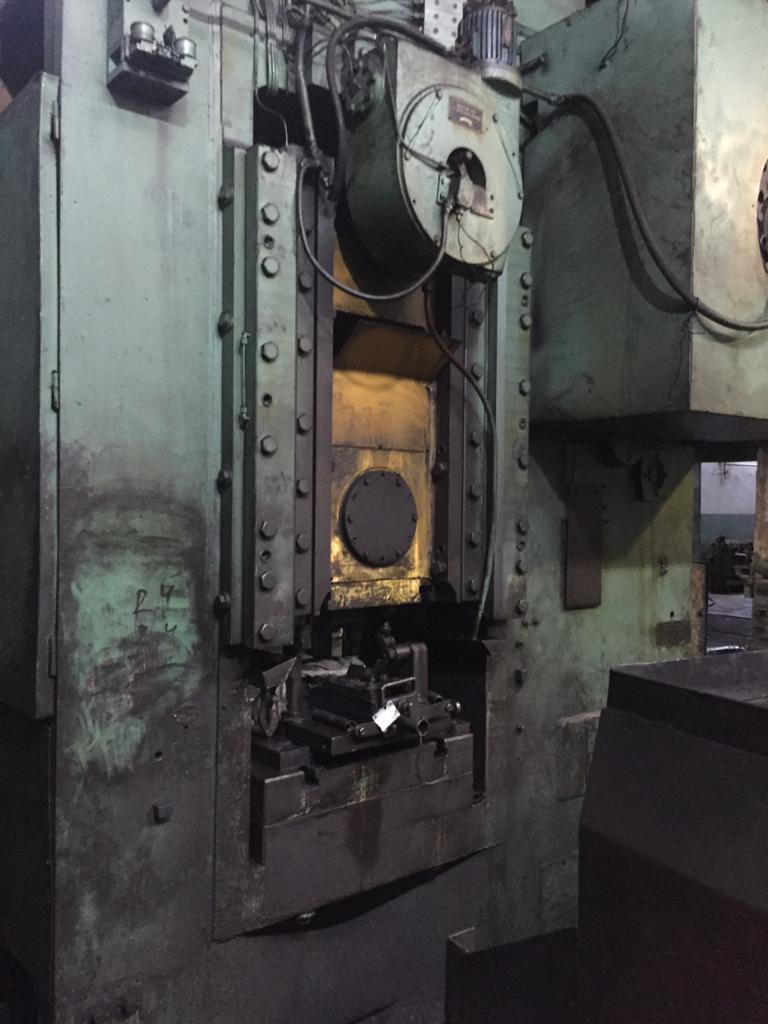

ナックルジョイントプレス Barnaul KB8340 B - 1000 トン
仕様 (EN) -

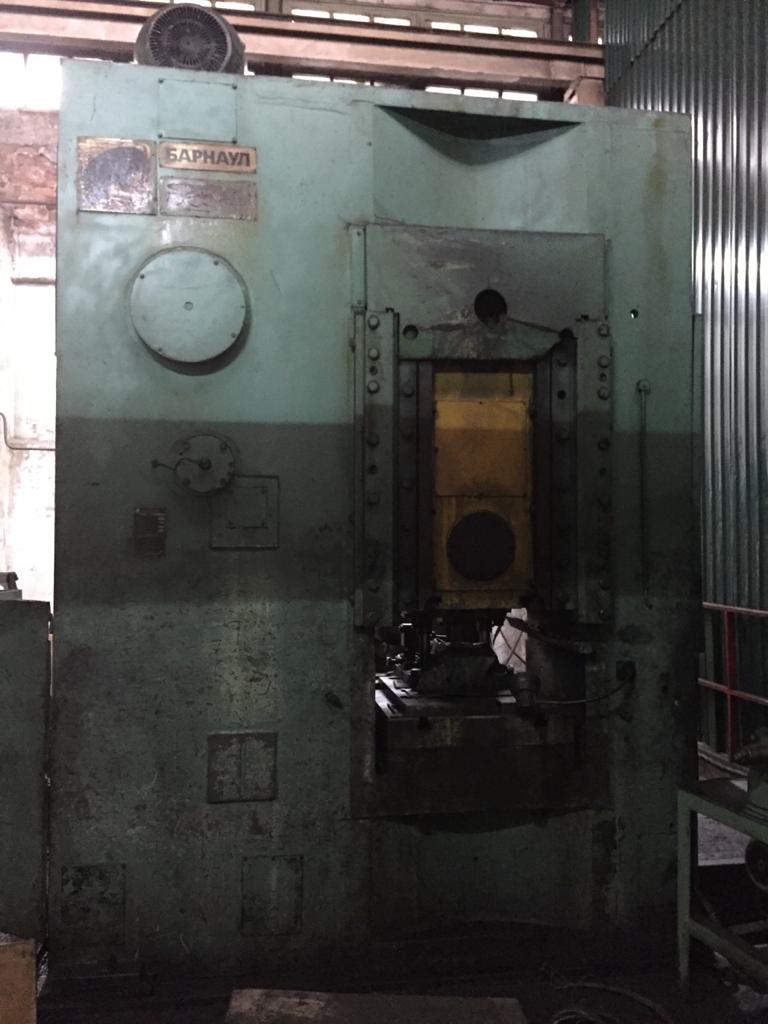

ナックルジョイントプレス Barnaul KB8340 B - 1000 トン (ID: 75758)
| Type | Knuckle joint press |
| Manufacturer | Barnaul |
| Model | KB8340 B |
| Made in | Russia |
| YOM | 1991 |
| Nominal effort | 1000 tons |
| Slide stroke | 70 mm |
| Strokes per 1 min | 50 |
| Shut height | 360 mm |
| Bolster plate-to-ram adjustable stroke | 16 |
| Table size | 800×800 mm |
| Bolster plate thickness | 140 mm |
| Slide size front-to-back | 630 mm |
| Distance between guides | 600 mm |
| Lower knockout | |
| Stroke | 100 mm |
| Force | 320 kN |
| Upper knockout | |
| Stroke | 16 mm |
| Force | 100 kN |
| Main motor power | 40 kW, 380 V |
| Overall dimensions | 2950 x 1950 x 4090 mm |
| Weight | 23960 kg |
